Product Details

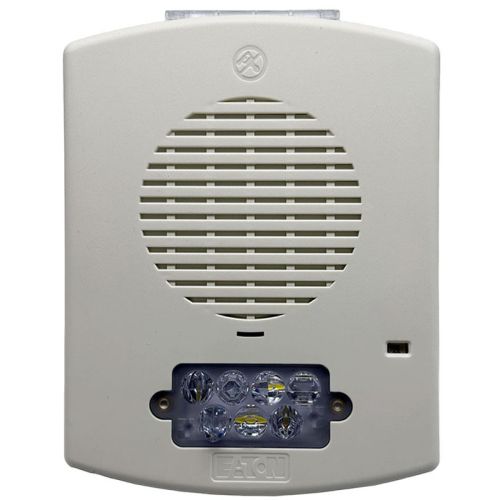

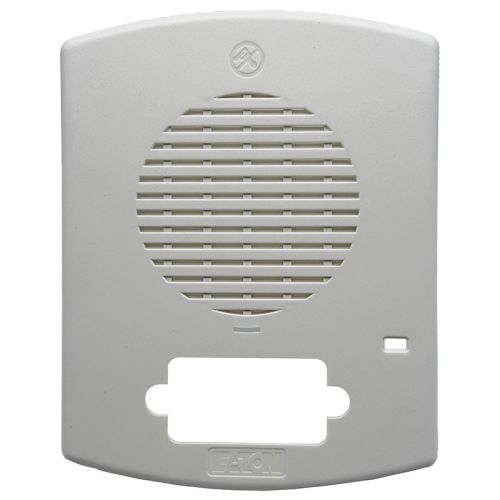

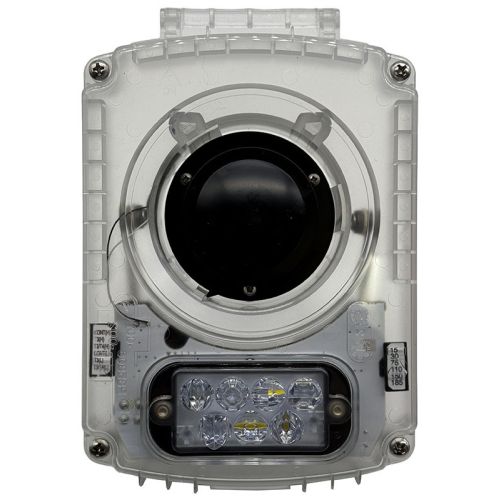

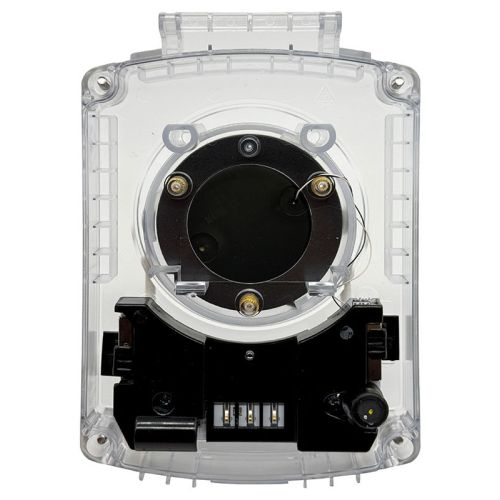

The Wheelock EL3RHS-FW is an Eluxa outdoor 3R LED horn strobe for wall or ceiling notification, combining audible output with a clear lens multi-candela strobe on 24 VDC or 24 VFWR NAC circuits. It provides three horn patterns with high or low output selection and six field-selectable candela settings. The outdoor 3R mounting plate is factory included with EL3R models for pre-wire and installation.
Key Specifications:
Type: Outdoor 3R LED horn strobe
Core Function(s): Audible and visual notification with horn patterns Continuous, T3, and T3/T4 plus multi-candela LED strobe
Loop/Protocol: Conventional NAC 24 VDC or 24 VFWR, compatible with Wheelock synchronization methods
Power: 16.0 to 33.0 VDC/VFWR operating range with strobe candela settings 15, 30, 75, 95/110, 150, and 177/185 cd
Indicators/UI: Tamper-resistant candela selector with visible setting, horn pattern and output selection at the device
Compatible Backboxes & Accessories:

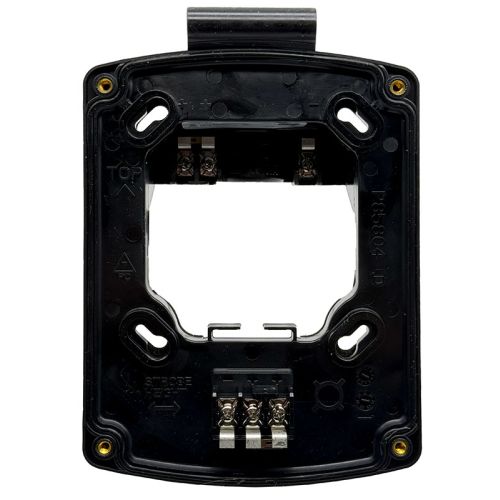

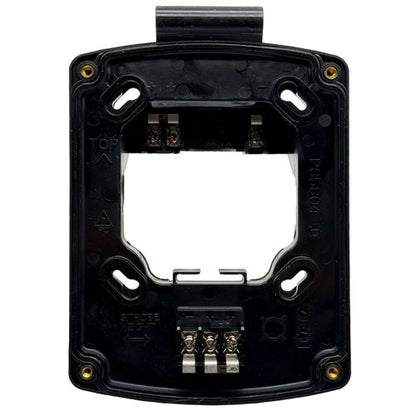

EL3RBB – Outdoor 3R mounting plate (factory included with EL3R models)
ELLP-FW – English FIRE letter plate kit
System Compatibility: Compatible with FACPs and accessories determined compatible with Wheelock RSS strobe-based products and Wheelock Eluxa and Exceder LED3 notification appliances.
