Product Details

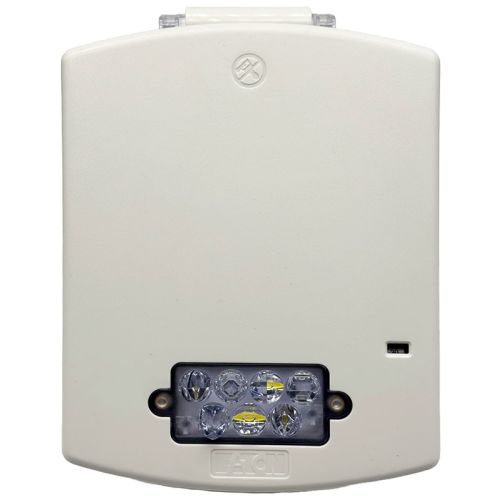

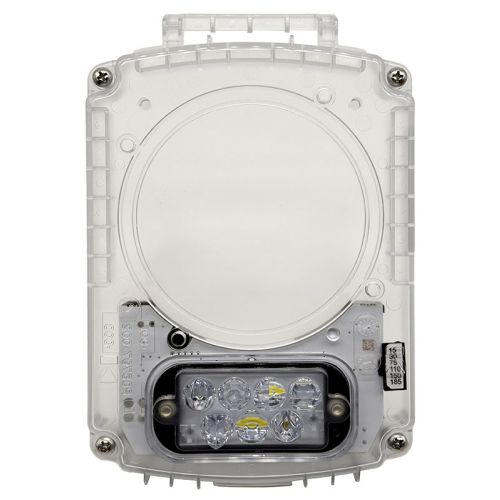

The Wheelock EL3RST-FW is an Eluxa outdoor 3R LED strobe for wall or ceiling notification on 24 VDC or 24 VFWR NAC circuits. It provides six field-selectable clear strobe settings from 15 to 185 cd and ships with the outdoor 3R mounting plate for pre-wire and installation.
Key Specifications:
Type: Outdoor 3R LED strobe
Core Function(s): Visual fire notification with multi-candela LED strobe output (clear lens)
Loop/Protocol: Conventional NAC 24 VDC or 24 VFWR, compatible with Wheelock synchronization methods
Power: 16.0 to 33.0 VDC/FWR operating range; candela settings 15, 30, 75, 110, 150, 185 cd
Indicators/UI: Tamper-resistant candela selector with visible setting; 1 Hz flash rate
Compatible Backboxes & Accessories:
EL3RBB – Outdoor 3R mounting plate (factory included with EL3R models)
ELLP-FW – English FIRE letter plate kit
System Compatibility: Compatible with FACPs and accessories determined compatible with Wheelock RSS strobe-based products and Wheelock Eluxa and Exceder LED3 notification appliances.
