Product Details

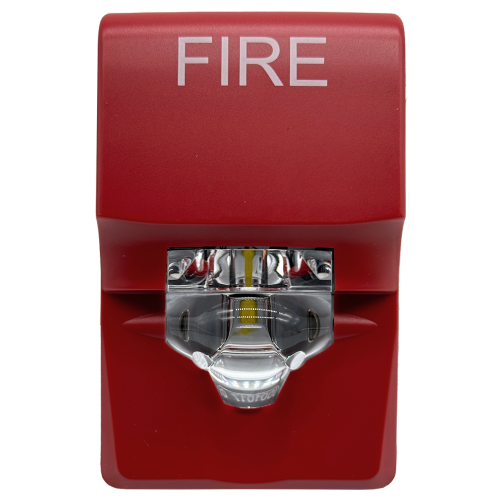

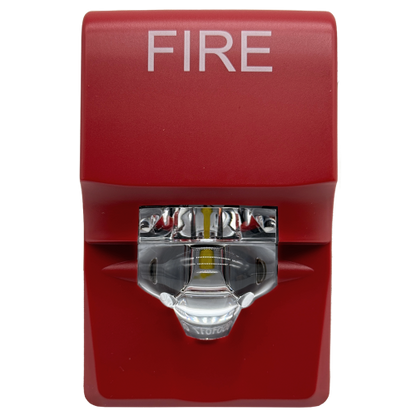

The Kidde EG1VRF is a Genesis LED wall strobe in red with FIRE lettering. Candela is field-selectable at 15, 30, or 75 cd. It operates on standard 24 VDC notification circuits (16–33 VDC), supports synchronization with Kidde CC Series sources and compatible control panels, and uses a compact single-gang footprint.
Key Specifications:
Candela settings: 15/30/75 cd
Operating voltage: 16–33 VDC (24 V nominal)
Synchronization: Works with Kidde CC Series sync sources and compatible panels
Mounting: 1-gang, 2-gang, 4 in. octagon, or 4 in. square boxes
Color/marking: Red housing, FIRE
Optional Accessories (Red):
EG1TR – Trim ring, red
27193-11 – One-gang surface box, red
EG1VRN-CVR – Replacement strobe cover, red, no marking
