Product Details
This part has been discontinued and replaced by FSP1004G + F-DACT

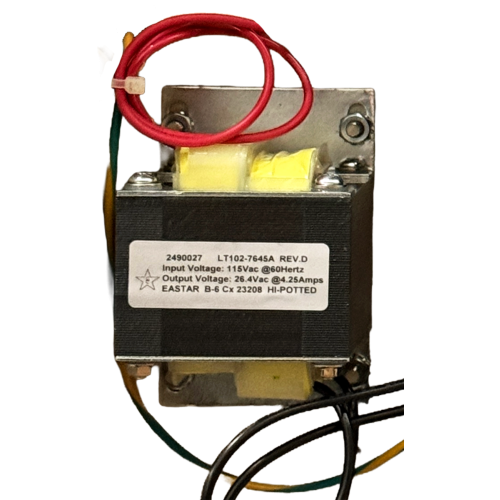

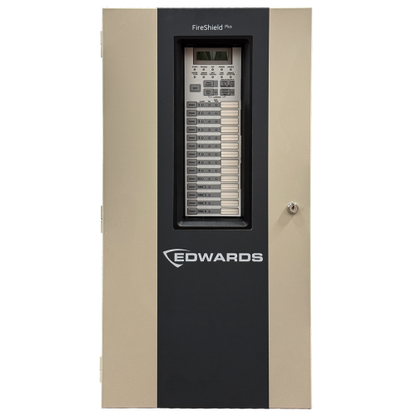

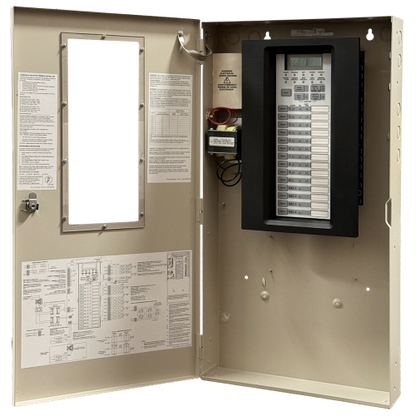

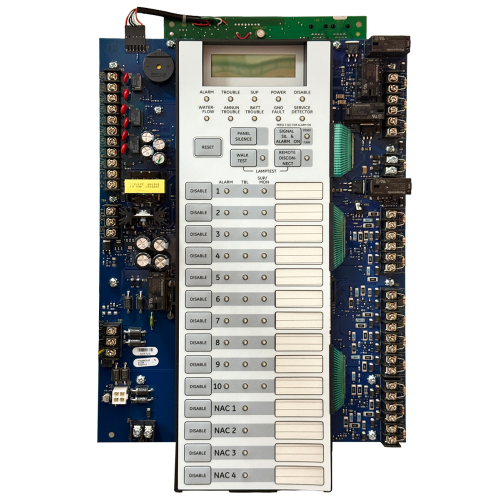

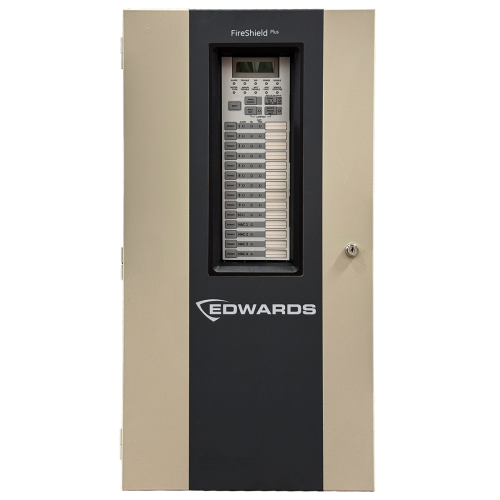

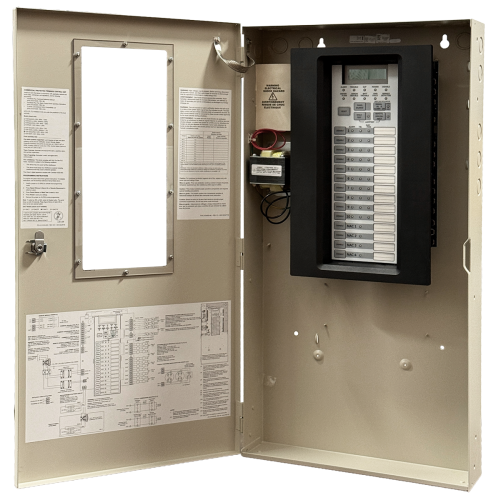

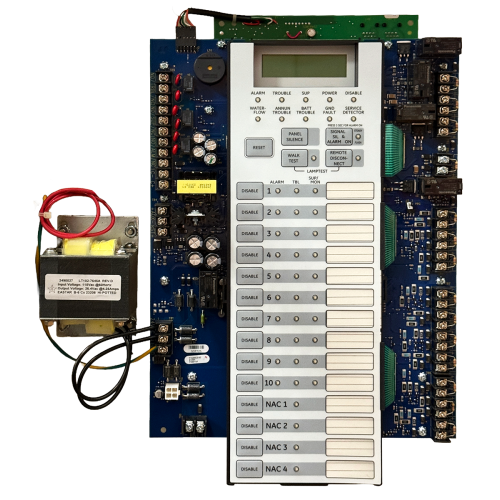

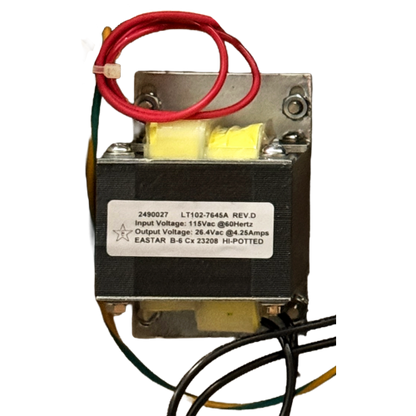

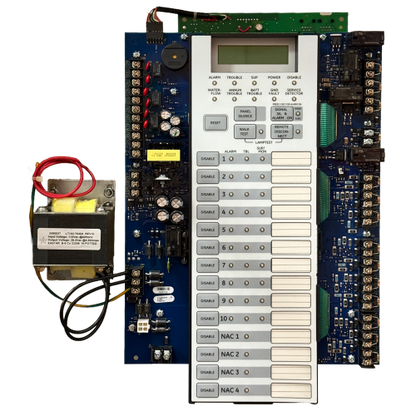

The Edwards FSP1004GD is a FireShield Plus conventional fire alarm control panel with a factory-installed DACT digital communicator. It supports up to 10 Class B initiating-device circuits (IDCs) or 5 Class A IDCs when circuit pairs are converted. The panel provides four Class B notification appliance circuits (NACs) rated at 2.0 A each for a 3.5 A system total and can be reconfigured as two Class A NACs. A 4.25 A power supply delivers system power plus 0.5 A of auxiliary 24 V DC, and both supply and NAC capacity can be expanded to 7.5 A and 7.0 A respectively with the optional F-XTR120 expander transformer.
Model Variants:
FSP1004G = Gray cabinet, no communicator
FSP1004GD = Gray cabinet, factory-installed DACT communicator
FSP1004R = Red cabinet, no communicator
FSP1004RD = Red cabinet, factory-installed DACT communicator
