Product Details

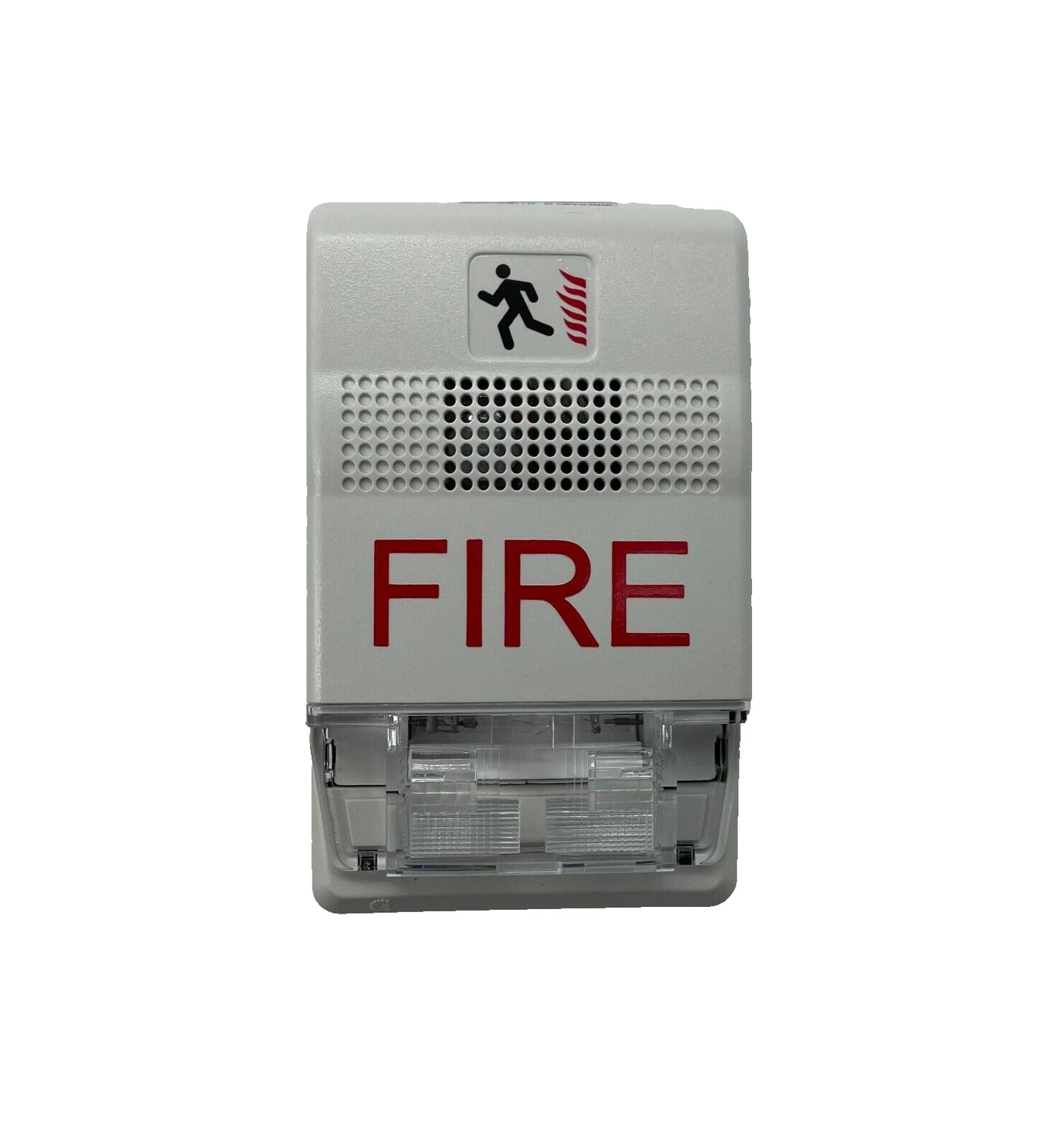

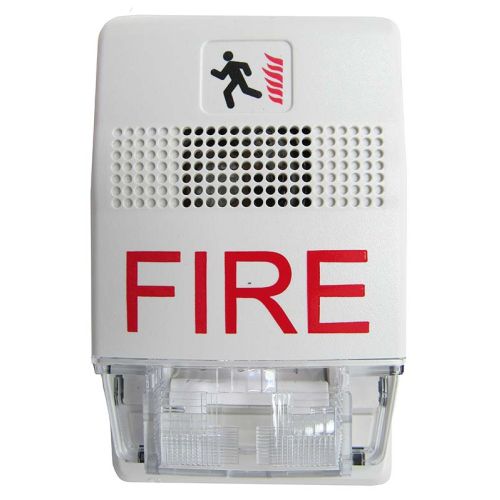

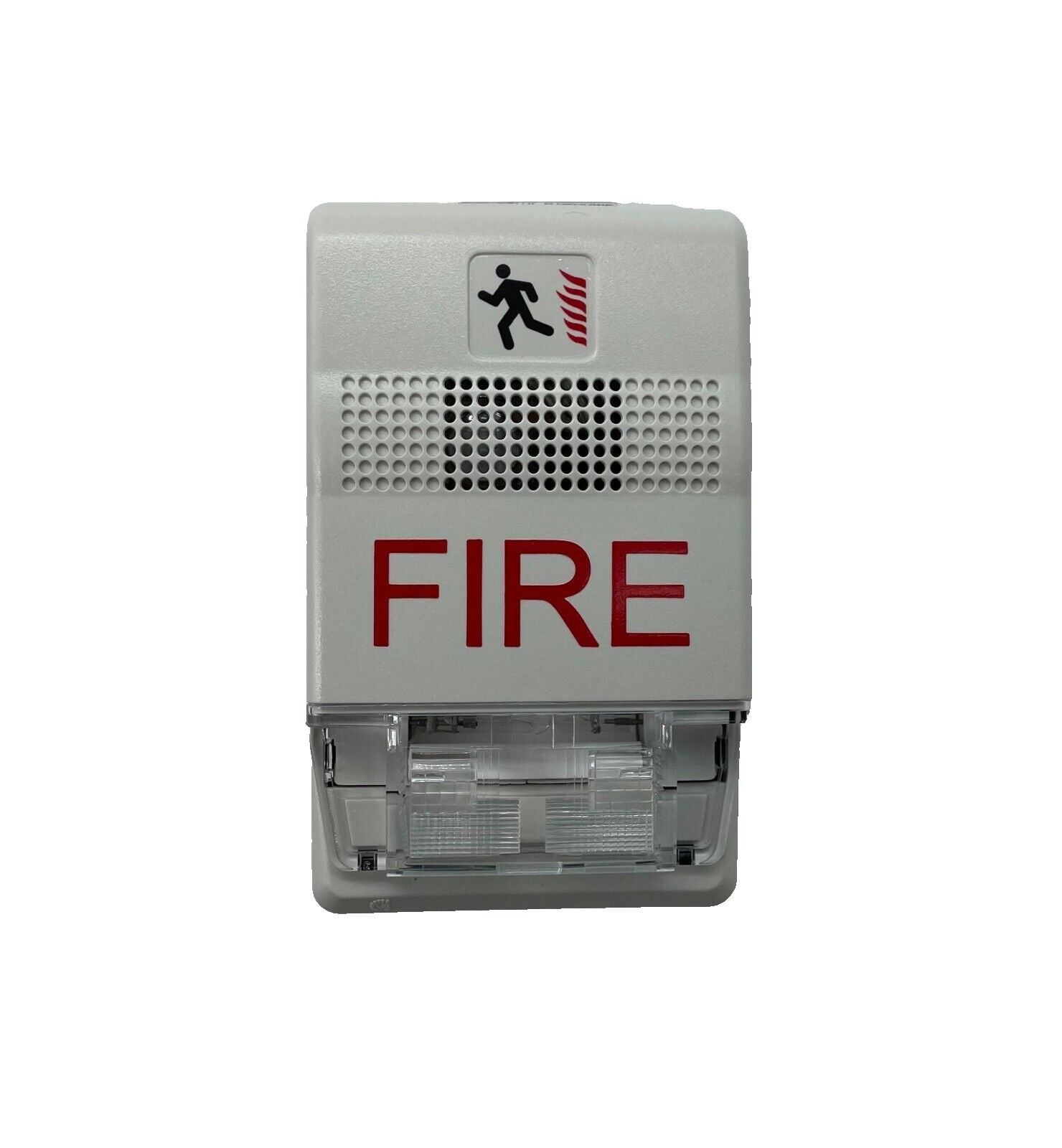

The Edwards EST G1F-CVM is a white Genesis Chime-Strobe (selectable 15, 30, 75, or 110 cd output, selectable high/low dB output) – with “FIRE” marking.
Voltage 24 VDC or 24 VFWR nominal.
COMPATIBLE SYNCH MODULES:
— G1M Genesis Signal Master – Snap-on Mount 0.2 (0.1) G1M-RM Genesis Signal Master – Remote Mount (1-gang)
— SIGA-CC1S Intelligent Synchronization Output Module (2-gang) 0.5 (0.23)
— SIGA-MCC1S Intelligent Synchronization Output Module (Plug-in UIO)
Mounts to: 2-1/2 in. (64 mm) deep single-gang box, 4 in. square box 1-1/2 in. (38 mm) or 2-gang 4 in. octagonal with G1T or G1RT trim accessory.
