Product Details

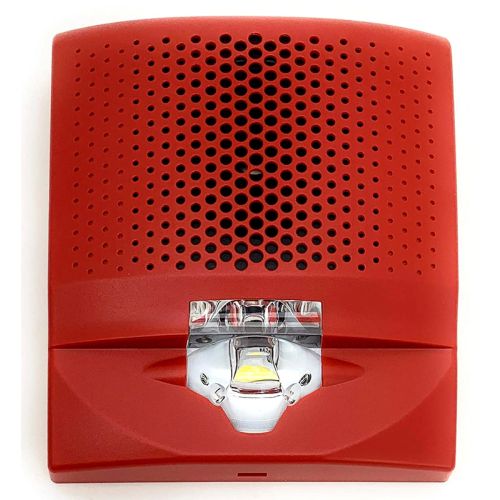

The Edwards EST G4AVRF Horn/Strobe is part of the Genesis LED G4 Series of Wall Mount Signaling Appliances.
Operating voltage 16 to 33 VDC, 16 to 33 VFWR
Horn signal type Constant or TC3 temporal
Light output 15, 30, 75, or 110 candela
Strobe flash rate 1 fps (flash per second) approx.
Synchronization 20 Ω max. between any two devices. To determine allowed wire resistance, refer to these specifications, and the specifications for the synchronized signal source.
Synchronization Sources Edwards CC Series Signal Modules, Booster and Auxiliary Power Supplies, Intelligent and Conventional Control Panels
Requires GP or GRSW wiring plate (sold separately)
NOTE: Replaces GL1RF-HDVMC and G1RF-HDVM
