Product Details

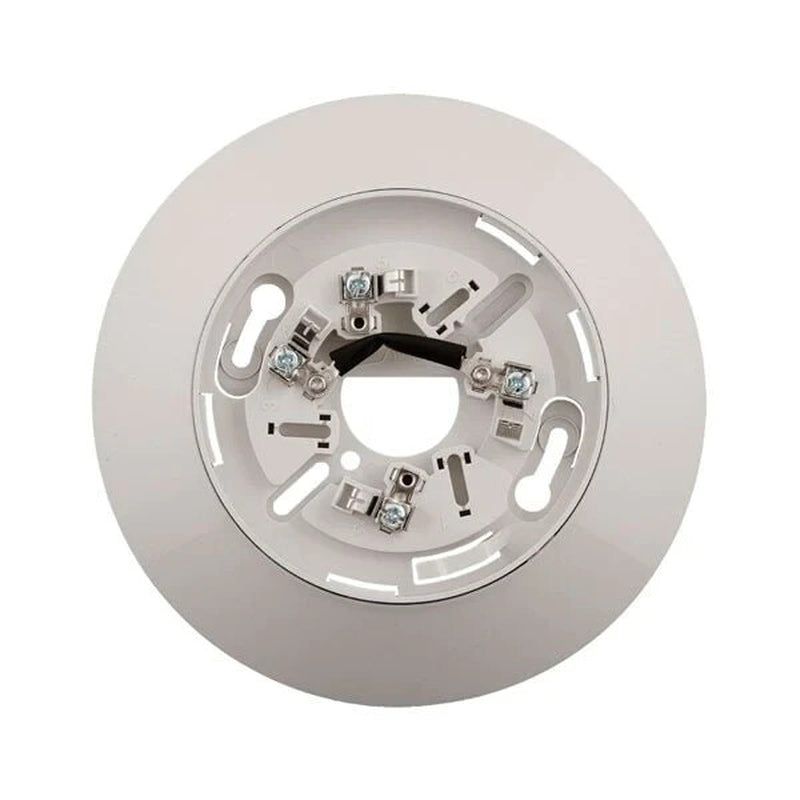

The Edwards EST SIGA-SB4 is the standard 4-inch mounting base for Signature Series detectors. It provides room-side SLC terminations, terminals for an optional remote alarm LED, outer mounting lugs for 4-inch square boxes, and it includes the matching trim skirt for a finished look.
Includes: SIGA-TS4 Trim Skirt
Key Specifications:
Type: 4-inch standard detector mounting base for Signature Series heads
Core Function(s): SLC terminations with connections for a remote LED indicator
Loop/Protocol: For use with Signature Series SLC devices
Mounting: Fits 1-gang, 3.5 in and 4 in octagon, 4 in square, BESA, and 75 mm European boxes with 60.3 mm centers
Wire Size: Accepts 12 to 18 AWG conductors; 16 to 18 AWG preferred
Operating Range: 32 to 120 °F; 0 to 93 percent RH, non-condensing
Notes: High-impact white polymer housing; room-side accessible screw terminals; trim skirt included
