Product Details

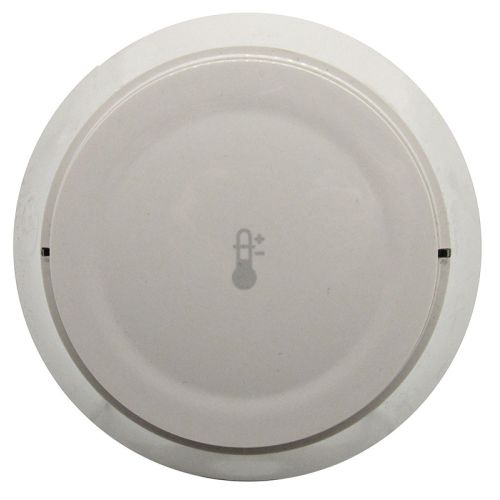

The Silent Knight IDP-HEAT-HT-IV is a low-profile intelligent addressable thermal detector in ivory with a 190°F (88°C) fixed high-temperature response. It uses rotary decimal addressing for point ID location and advanced thermistor-based thermal technology for fast response, with 360° visibility from two bi-color LEDs. This detector uses FlashScan or CLIP protocol.
Key Specifications:
Type: Intelligent addressable thermal (heat) detector, 190°F fixed high-temp
Core Function(s): Addressable fixed high-temperature heat detection using advanced thermistor technology for fast response
Loop/Protocol: Silent Knight SLC; FlashScan and CLIP.
Power: 15 to 32 VDC from SLC; 200 μA standby at 24 VDC (green LED enabled); 2 mA max alarm current @ 24 VDC (red LED enabled); 4.5 mA max current @ 24 VDC (amber LED enabled)

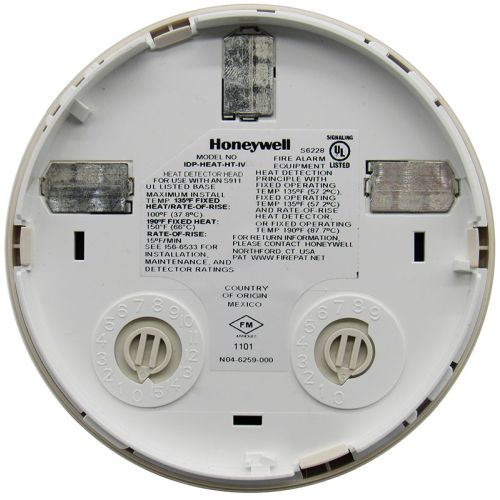

Indicators/UI: 360° viewing angle (two bi-color LEDs); LEDs blink green in Normal condition and turn steady red in Alarm; rotary decimal addressing; remote test feature from the panel; built-in functional test switch activated by external magnet; walk test with address display
Operating Range: -4°F to 135°F (-20°C to 57°C)
Humidity Range: 10% to 93% RH, non-condensing
