Product Details

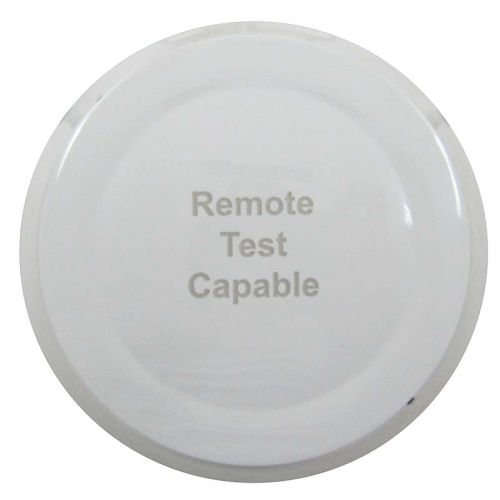

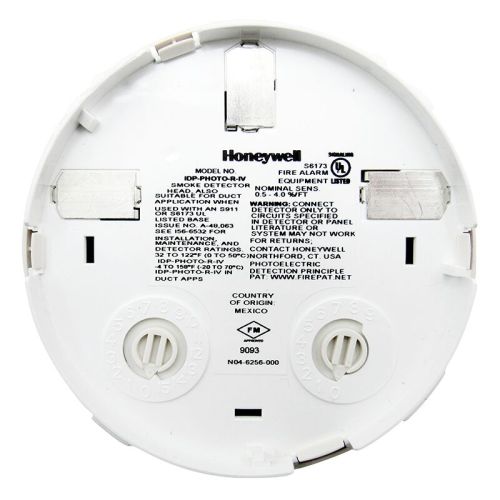

The Silent Knight IDP-PHOTO-R-IV is an intelligent addressable plug-in photoelectric smoke detector with remote test capability for use with System Sensor DNR and DNRW duct detector housings. It uses rotary decimal addressing for point ID location and an enhanced optical sensing chamber engineered to sense smoke produced by a wide range of combustion sources. This detector uses FlashScan or CLIP protocol.
Key Specifications:
Type: Intelligent addressable photoelectric smoke detector (remote test capable)
Core Function(s): Addressable photoelectric smoke detection with remote test capability
Loop/Protocol: Silent Knight SLC; FlashScan and CLIP.
Power: 15 to 32 VDC peak from SLC; 200 μA max average standby @ 24 VDC (LED enabled); 4.5 mA max current @ 24 VDC (“ON”)
Indicators/UI: 360° viewing angle (two bi-color LEDs); LEDs blink green in Normal condition and turn steady red in Alarm; rotary decimal addressing; remote test feature from the panel; built-in functional test switch activated by external magnet; walk test with address display
Operating Range: When installed in a DNR/DNRW duct housing: -4°F to 158°F (-20°C to 70°C)
Humidity Range: 10% to 93% RH, non-condensing
