Product Details

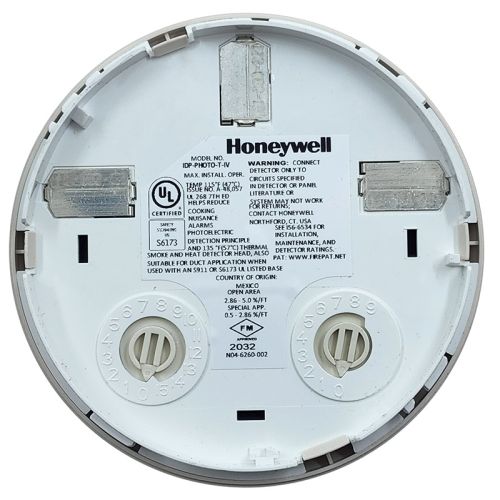

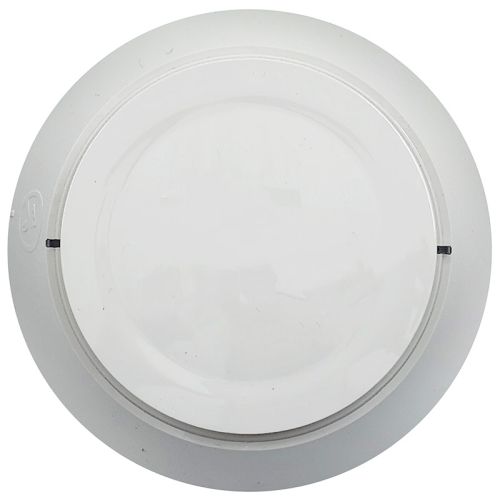

The Silent Knight IDP-PHOTO-T-IV is an intelligent addressable plug-in photoelectric smoke detector in ivory that includes a built-in 135°F (57°C) fixed-temperature thermal device. It uses rotary decimal addressing for point ID location and an enhanced optical sensing chamber engineered to sense smoke produced by a wide range of combustion sources. This detector uses FlashScan or CLIP protocol.
Key Specifications:
Type: Intelligent addressable photoelectric smoke and heat detector (135°F fixed)
Core Function(s): Photoelectric smoke detection with dual electronic thermistors for 135°F (57°C) fixed-temperature heat sensing
Loop/Protocol: Silent Knight SLC; FlashScan and CLIP.
Power: 15 to 32 VDC peak from SLC; 200 μA max average standby @ 24 VDC (LED enabled); 4.5 mA max current @ 24 VDC (“ON”)
Indicators/UI: 360° viewing angle (two bi-color LEDs); LEDs blink green in Normal condition and turn steady red in Alarm; rotary decimal addressing; remote test feature from the panel; built-in functional test switch activated by external magnet; walk test with address display
Operating Range: 32°F to 100°F (0°C to 38°C)
Humidity Range: 10% to 93% RH, non-condensing
