Product Details

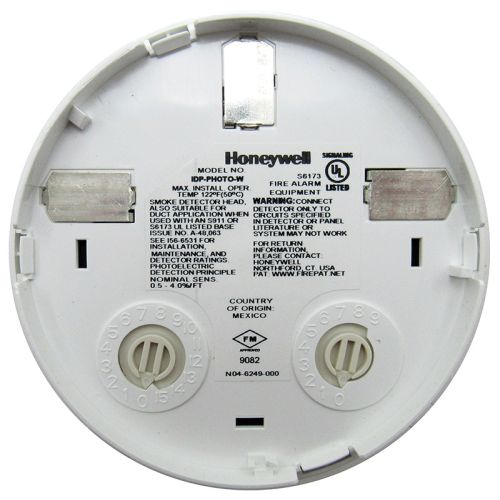

The Silent Knight IDP-PHOTO-W is an intelligent addressable plug-in photoelectric smoke detector for Silent Knight Farenhyt addressable SLC loops. It uses rotary decimal addressing for point ID location and an enhanced optical sensing chamber engineered to detect smoke from a wide range of combustion sources, with programmable sensitivity that is continuously monitored and reported to the panel. This model supports FlashScan protocol.
Key Specifications:
Type: Intelligent addressable photoelectric smoke detector
Core Function(s): Addressable photoelectric smoke detection with programmable sensitivity and continuous sensitivity monitoring
Loop/Protocol: Silent Knight SLC; FlashScan only
Power: 15 to 32 VDC peak from SLC; 200 μA max average standby @ 24 VDC (LED enabled); 4.5 mA max current @ 24 VDC (“ON”)
Indicators/UI: 360° viewing angle (two bi-color LEDs); LEDs blink green in Normal condition and turn steady red in Alarm; rotary decimal addressing; remote test feature from the panel; built-in functional test switch activated by external magnet; walk test with address display
Operating Range: 32°F to 122°F (0°C to 50°C)
Humidity Range: 10% to 93% RH, non-condensing
