Product Details

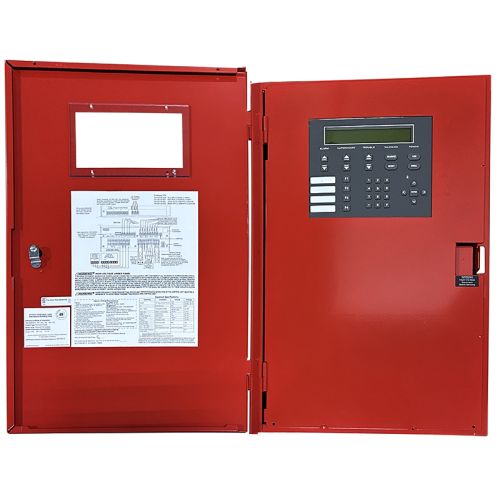

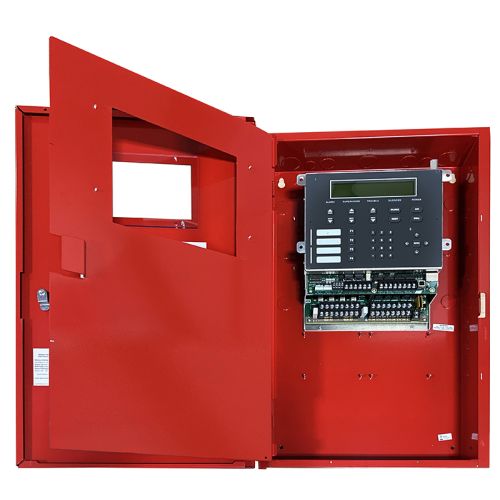

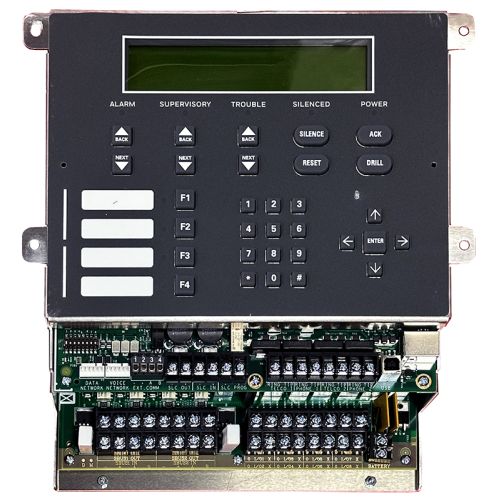

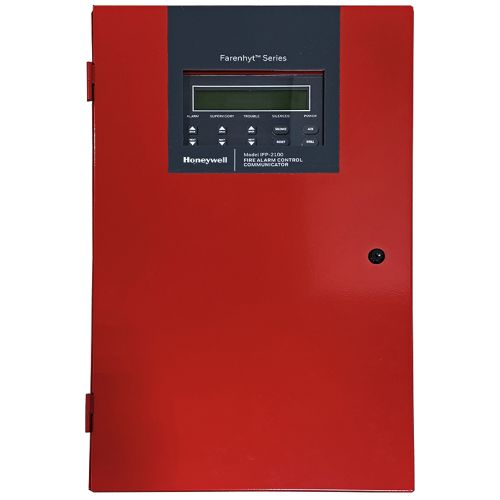

The IFP-2100 is an intelligent addressable fire-alarm control panel with one built-in SLC and a dual-technology communicator. The integrated DACT supports IP and POTS reporting, and optional cellular can be added. The panel ships with eight Flexput circuits that can be configured as NAC outputs or auxiliary power, plus one Form C trouble relay and two programmable Form C relays. Software features include JumpStart auto programming, drift compensation with maintenance alerts, 999 software zones and 999 output groups, and networking support for up to 32 panels.
Key Specifications:
Type: Intelligent addressable FACP with built-in IP/POTS communicator
Device Capacity: 1 built-in SLC supporting up to 159 detectors and 159 modules (IDP/SK) or 127 devices (SD); expandable to 2100 (IDP/SK) or 2032 (SD) points
SLC Loops: Expandable with SLC expander modules for IDP/SK or SD device families
NAC / Power Circuits: Eight Flexput circuits, up to 3 A per circuit, 9 A system total
Communication: IP and POTS reporting standard; optional cellular communicator
Networking: Up to 32 panels networked with copper or fiber interface
Programming: Built-in keypad or PC via USB using HFSS; JumpStart auto programming
Primary Power: 120 VAC 60 Hz, 5 A (or 240 VAC 50/60 Hz, 2.8 A)
Battery Support: Cabinet holds up to two 18 Ah batteries; charger capacity 17 to 55 Ah
Annunciators: Supports up to 63 SBUS devices including LCD and LED annunciators
Compatible Modules & Accessories:
6815 – SLC expander for IDP/SK addressable devices
5815XL – SLC expander for SD addressable devices
5496 – 6 A NAC power expander with four outputs
SK-NIC – Network interface card; copper or fiber with SK-FML/SK-FSL
5880 – LED I/O module with 40 LEDs and 8 supervised inputs
5883 – Ten-relay interface module
Remote Annunciators (SBUS):
RA-2000 – 4×40 LCD annunciator, red
RA-2000GRAY – 4×40 LCD annunciator, gray
RA-1000 – 4×20 LCD annunciator, gray
RA-1000R – 4×20 LCD annunciator, red
RA-100 – 4×20 LCD annunciator, red
Compatible Detectors & Devices:
IDP-PHOTO-W (White) | IDP-PHOTO-IV (Ivory) - Photoelectric smoke
IDP-HEAT-W (White) | IDP-HEAT-IV (Ivory) - Fixed-temperature heat
IDP-PULL-SA – Single-action pull
IDP-MONITOR – Monitor module
IDP-MINIMON – Mini monitor module
IDP-ISO – Fault isolator module
Also supports System Sensor SK-series equivalents, or SD-series devices (Hochiki protocol). Protocols cannot be mixed on the same system.
