Product Details

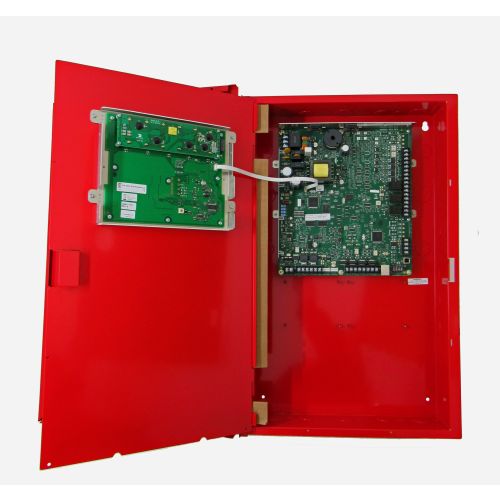

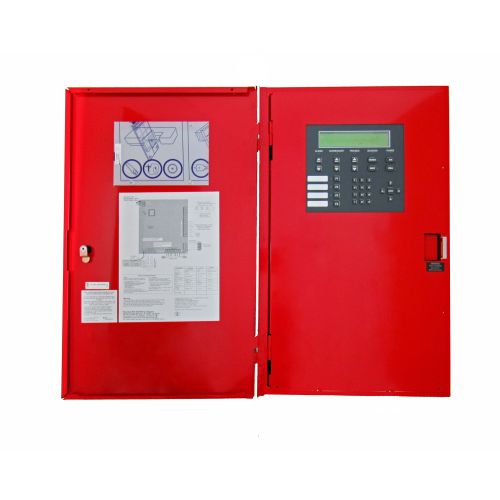

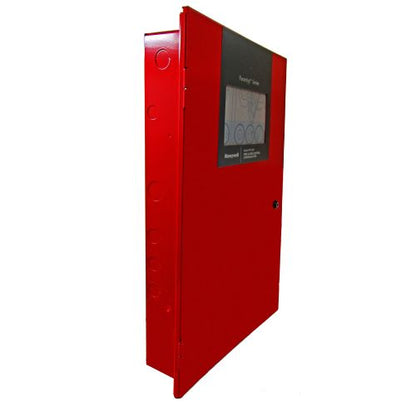

The IFP-300 is an intelligent addressable fire alarm control panel in a red, surface-mount cabinet with a built-in IP/POTS communicator. One built-in SLC supports up to 159 IDP/SK detectors and 159 IDP/SK modules per loop, or 127 SD devices per loop. System capacity expands to 300 addressable points with IDP/SK devices or 254 points with SD devices. Four Flexput circuits can be configured as NAC outputs or auxiliary power. Software features include JumpStart auto programming, drift compensation with maintenance alerts, a 4×40 LCD, and networking support for up to 32 panels via SK-NIC with copper or fiber options.
Model Variants:
IFP-300 – Red Cabinet
IFP-300B – Black Cabinet
IFP-300BD – Replacement electronics assembly (main board)
