Product Details

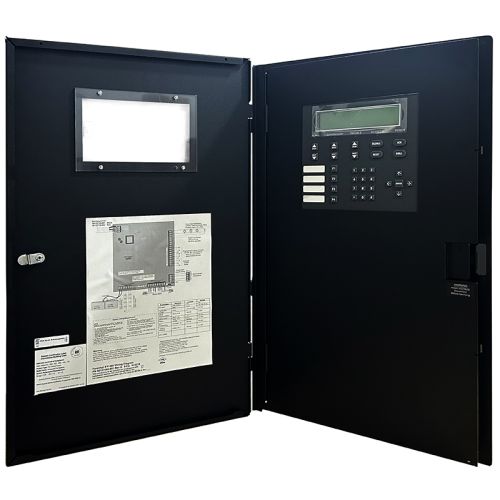

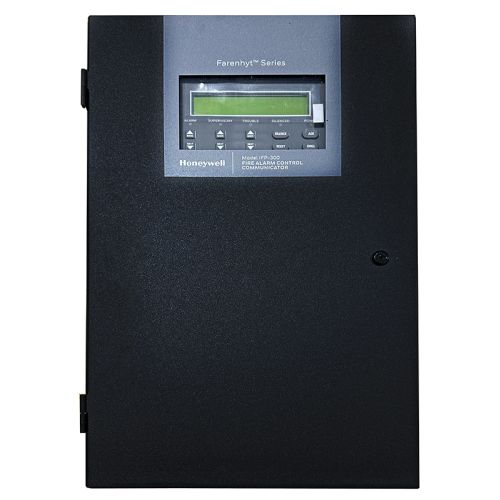

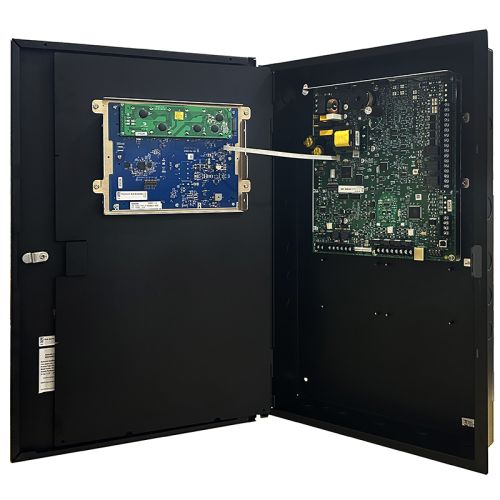

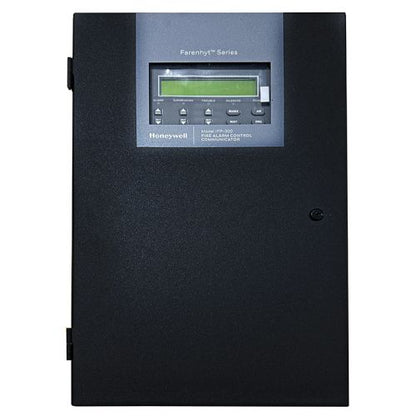

The IFP-300B is an intelligent addressable fire alarm control panel in a black, surface-mount cabinet with a built-in IP/POTS communicator. One built-in SLC supports up to 159 IDP/SK detectors and 159 IDP/SK modules per loop, or 127 SD devices per loop. System capacity expands to 300 addressable points with IDP/SK devices or 254 points with SD devices. Four Flexput circuits can be configured as NAC outputs or auxiliary power. Software features include JumpStart auto programming, drift compensation with maintenance alerts, a 4×40 LCD, and networking support for up to 32 panels via SK-NIC with copper or fiber options.
Model Variants:
IFP-300 – Red Cabinet
IFP-300B – Black Cabinet

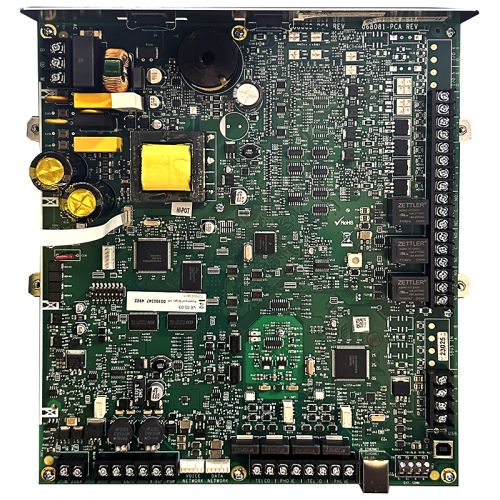

IFP-300BD – Replacement electronics assembly (main board)
Key Specifications:
Type: Intelligent addressable FACP with built-in IP/POTS communicator
Device Capacity: Up to 300 (IDP/SK) or 254 (SD) addressable points per panel
SLC Loops: 1 built-in loop, expandable via SLC expander modules for IDP/SK or SD device families
NAC / Flexput Circuits: Four configurable circuits, 3.0 A per circuit, 6.0 A maximum total, power limited and supervised
Communication: IP and POTS reporting standard; optional cellular communicator
Networking: Up to 32 panels networked with SK-NIC using copper or fiber interfaces
Programming: Onboard keypad or PC via USB using HFSS; JumpStart auto programming
Primary Power: 120 VAC 60 Hz, 3.3 A input
Battery Support: Cabinet holds two 18 Ah batteries; charger supports 17 to 55 Ah
Annunciation & Reporting: Supports RA-2000 LCD annunciators and 5824 serial or parallel printer interface
