Farenhyt WIDP-PULL-DA SWIFT Wireless Pull Station

The Honeywell® SWIFT® addressable pull station is a dual-action, manual pull station with a key-lock reset feature that provides one addressable alarm initiating input. The pull station features a similar aesthetic design and durable construction characteristics as the wired counterpart to blend seamlessly throughout the environment.

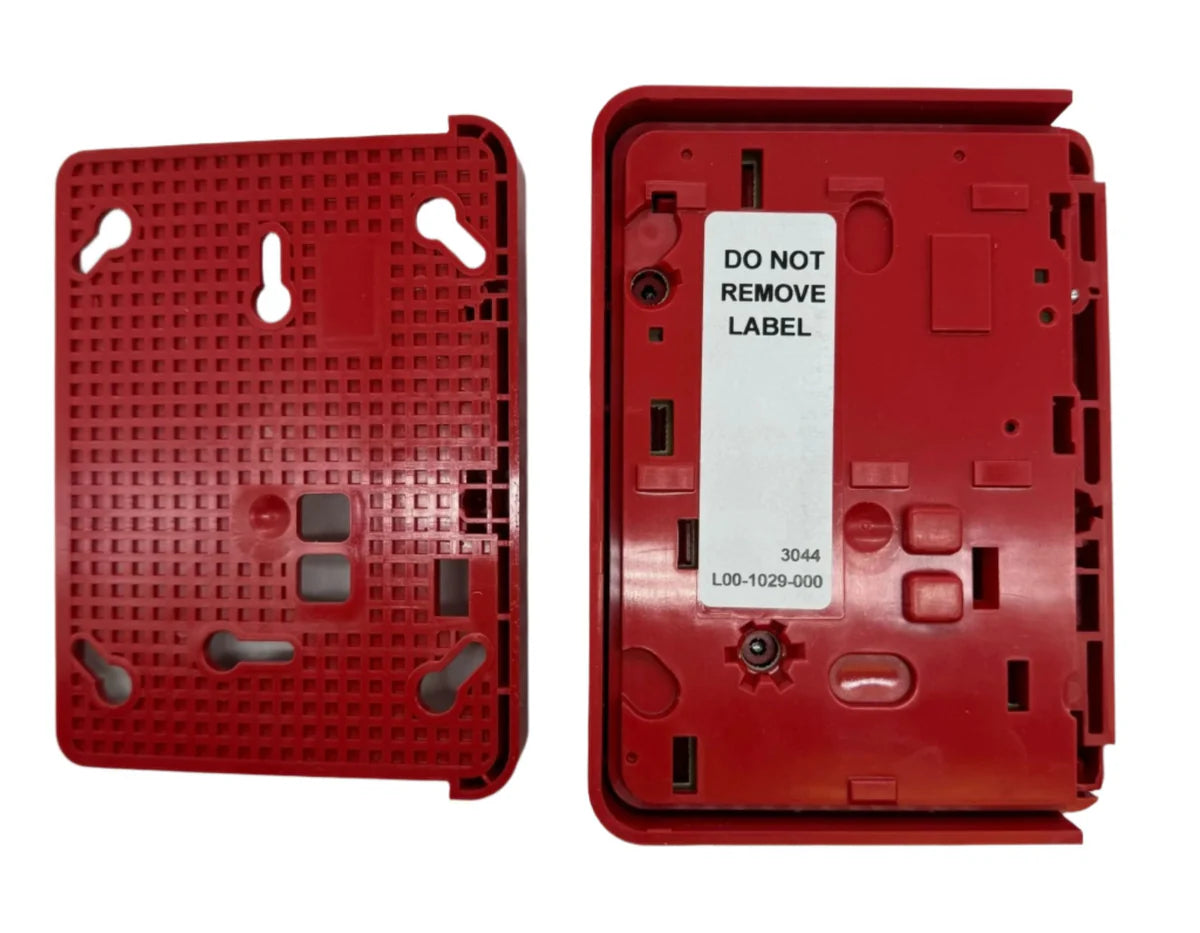

The device communicates to the FACP through the SWIFT mesh network and gateway, and is powered by four batteries offering a 2-year, UL-listed battery life. Installation is fast and straightforward by using a mounting plate that can be surface mounted. Once the mounting plate is firmly attached to the wall, the pull station is snapped into place and locked down with 3 screws.

The mechanical operation is simple and easy to use in an emergency with a PUSH IN/ PULL DOWN handle that latches in the down position to indicate the station has been operated while the word “ACTIVATED” appears on top of the handle in bright yellow, further indicating the operation of the station.

The wireless pull station meets the Americans with Disabilities Act Accessibility Guidelines (ADAAG) controls and operating mechanisms guidelines (section 4.1.3[13]) and the Americans with Disabilities Act (ADA) requirement for a 5-pound maximum pull force to activate the pull station and conforms to ANSI/UL Standard 38.

The SWIFT wireless system offers intelligent (addressable) devices that provide secure, reliable communication to the Fire Alarm Control Panel (FACP) across a Class A mesh network.

Wireless devices create an opportunity for applications where it is costly (concrete walls/ceilings, buried wires), obtrusive (surface mount conduit), or possibly dangerous (asbestos) to use traditional wired devices.

In addition, both wired and wireless devices can be present on the same FACP providing an integrated wiredwireless solution for increased installation potential.
