Product Details

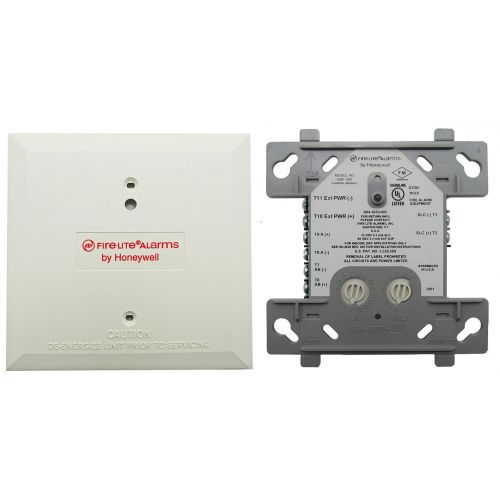

The Fire-Lite CMF-300 Supervised Control Module is intended for use in addressable, two-wire systems, where the individual address of each module is selected using the built-in rotary switches. This module is used to switch an external power supply to notification appliances. It also supervises the wiring to the connected loads and reports their status to the panel.
The CMF-300 has two pairs of output termination points available for fault-tolerant wiring and a panel-controlled LED indicator. This module can be used to replace a C304 module that has been configured for supervised wiring operation.
Mounts to a standard 4"sq. electrical box.
