Product Details

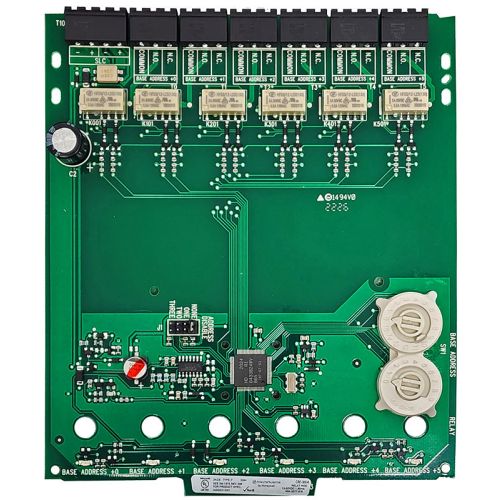

Fire-Lite CRF-300-6 Six Relay Control Module [NEW] is designed for use with the following Fire-Lite FACPs:
• MS-9200
• MS-9600
The CRF-300-6 Six Relay Control Module is intended for use in an intelligent alarm system. Each module is intended for Form-C switching applications, which do not require wiring supervision for the load circuit. A single isolated set of dry relay contacts is provided for each module, which is capable of being wired for either normally open or normally closed for each operation.
Each module has its own address. A pair of rotary code switches is used to set the address of the first module from 01 to 154. Up to six CRF-300-6 modules can be installed on a CH-6 in a BB-6 cabinet. One or two CRF-300-6 modules can be installed in a BB-2 cabinet
