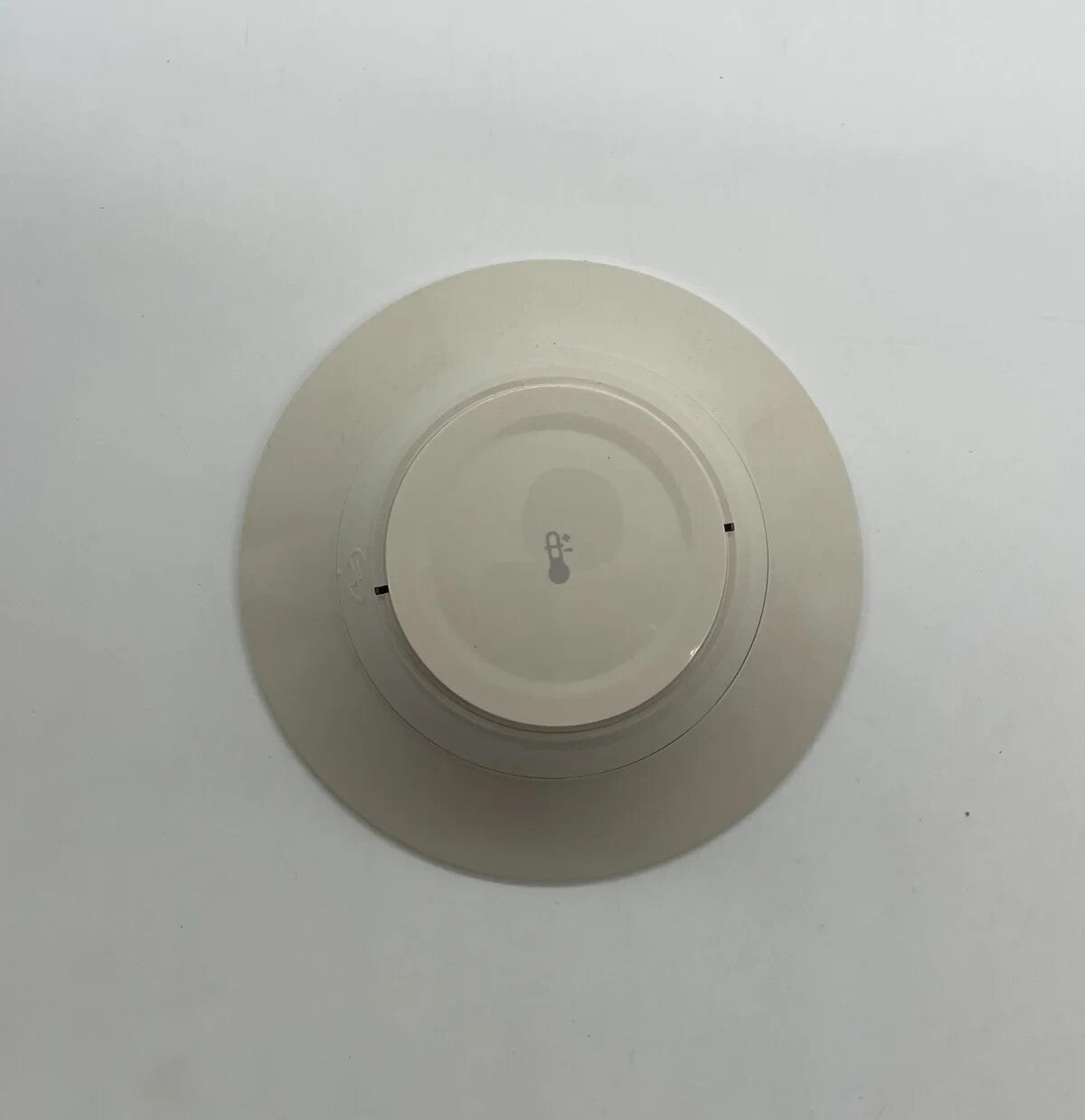

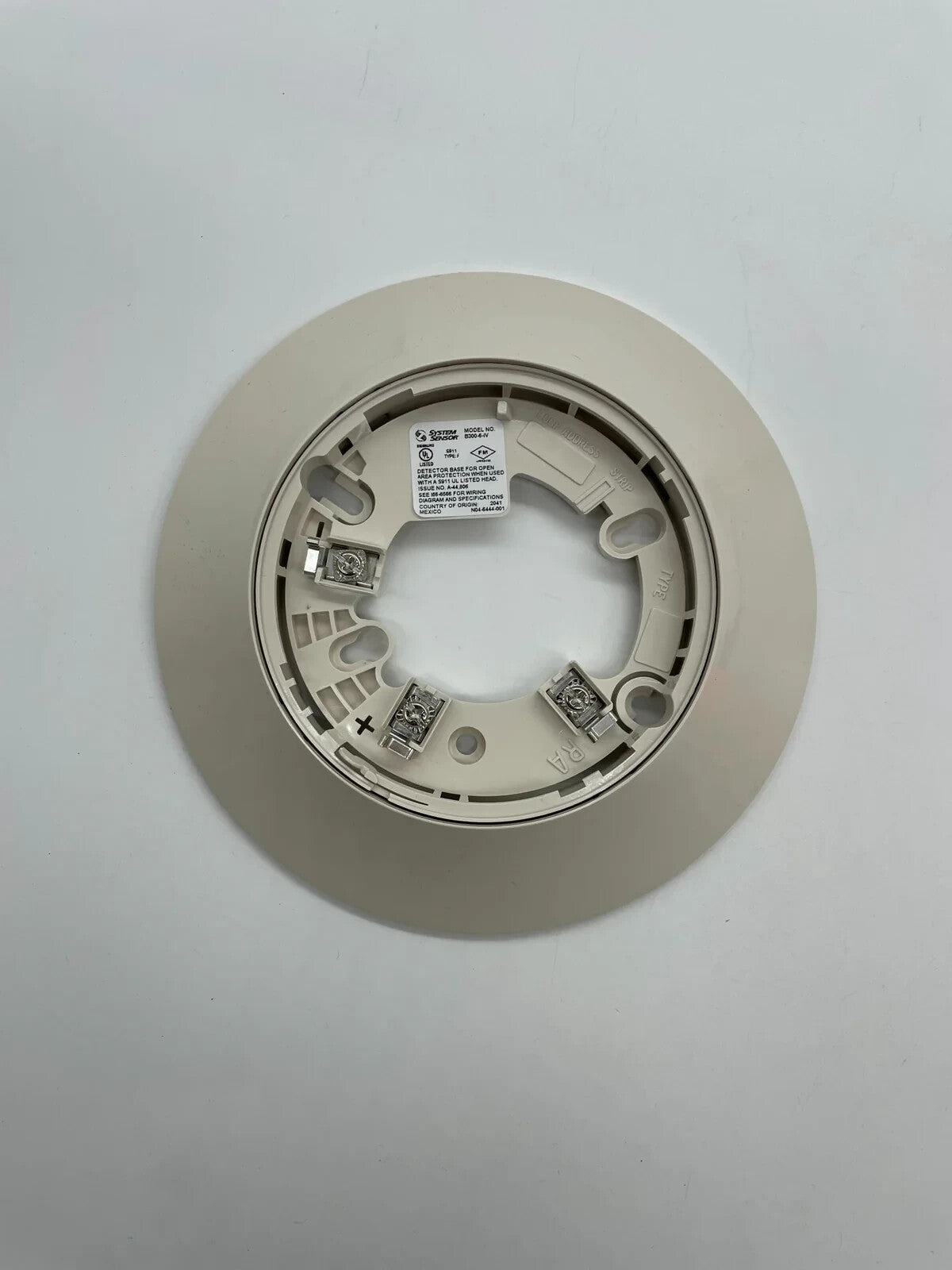

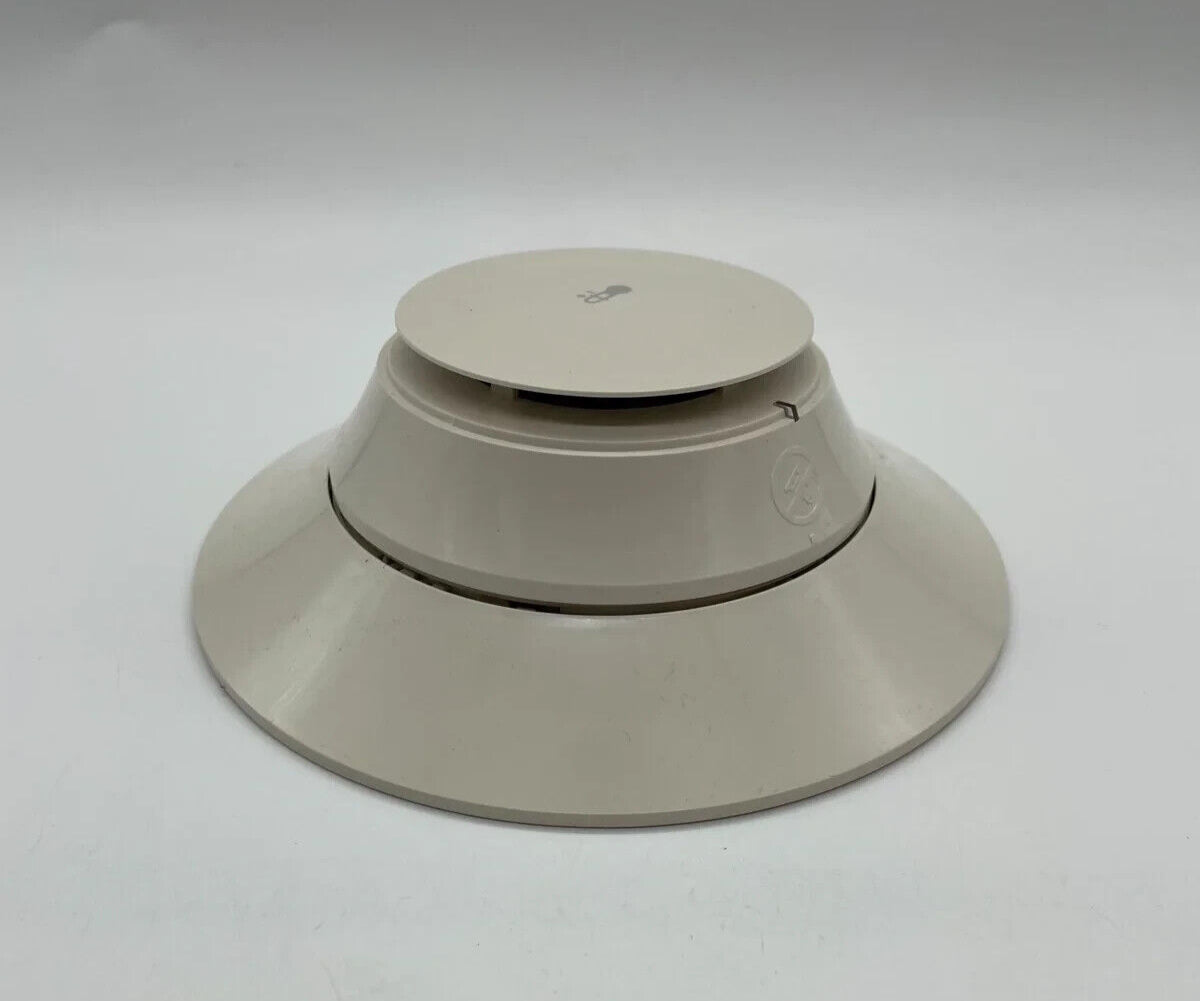

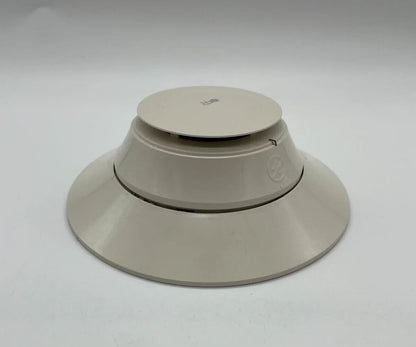

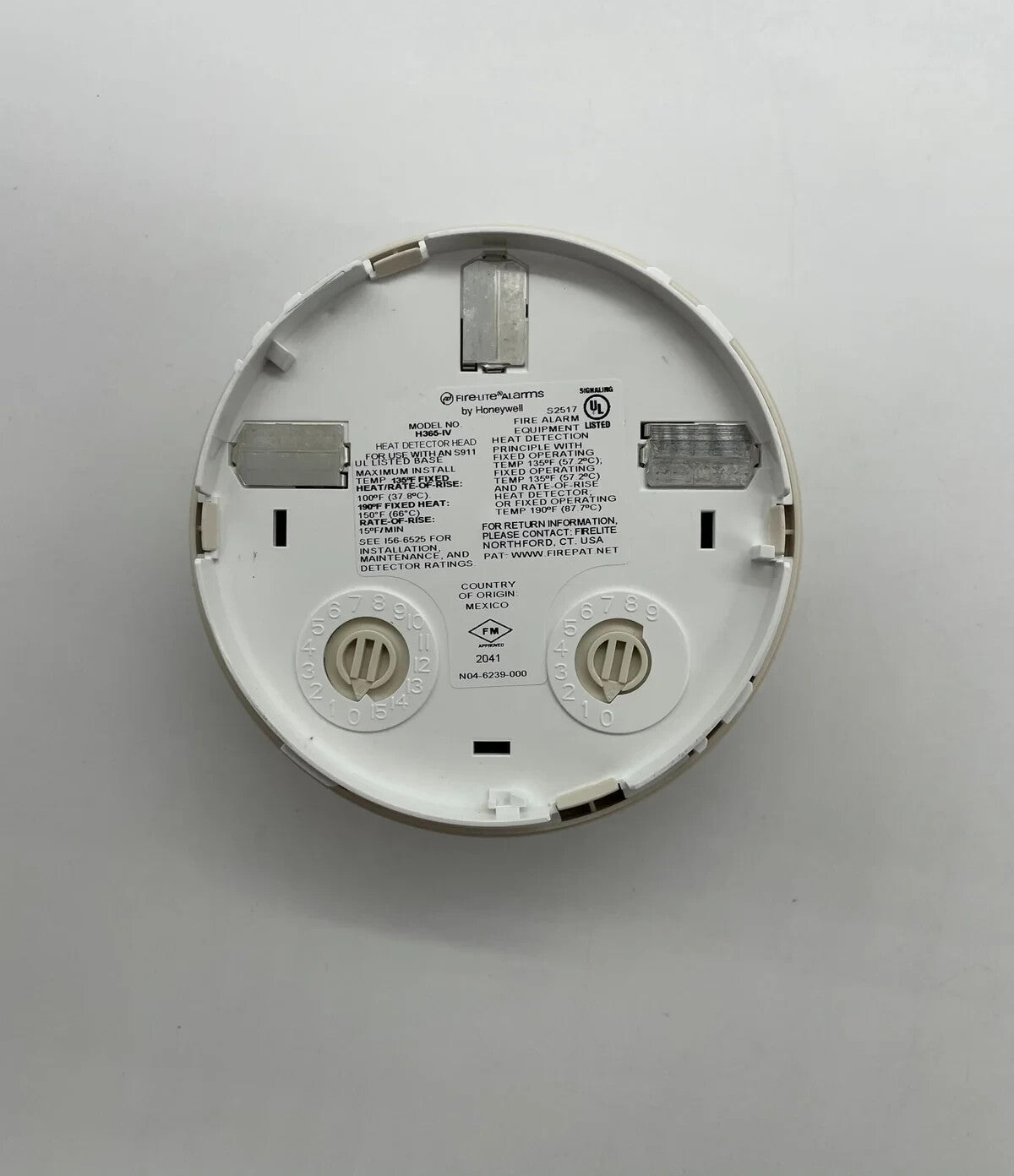

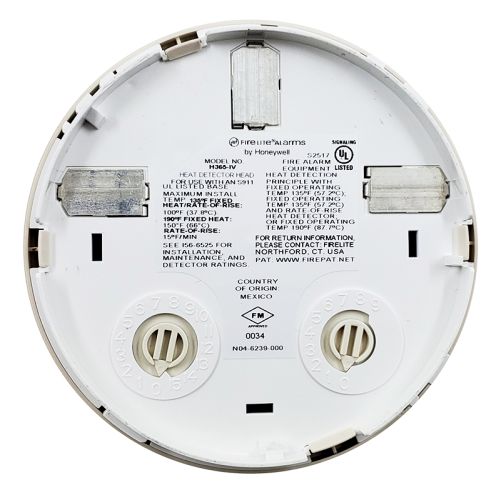

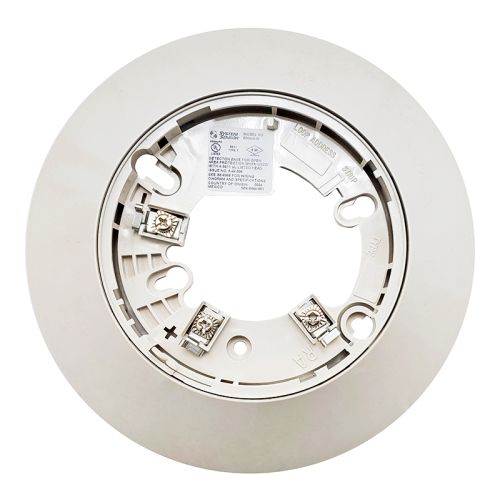

The Fire-Lite H365-IV is an intelligent addressable plug-in thermal detector with a fixed temperature factory preset to 135°F (57°C) for Fire-Lite addressable fire alarm control panels. It features rotary decimal addressing for point ID location, two LEDs for local indication, and includes the B300-6-IV detector base. This ivory “-IV” service model supports both LiteSpeed and CLIP protocol.
Key Specifications:
Type: Intelligent addressable fixed-temperature heat detector (135°F)
Core Function(s): Addressable fixed-temperature heat detection using thermistor technology
Loop/Protocol: Fire-Lite SLC; LiteSpeed and CLIP
Power: 15 to 32 VDC peak from SLC; 200 μA max avg standby @ 24 VDC (LED enabled); 4.5 mA max current @ 24 VDC (“ON”)
Indicators/UI: Two LEDs; LEDs blink red in Normal condition and turn steady red in Alarm; rotary decimal addressing; remote test feature from the panel; built-in functional test switch activated by external magnet; walk test with address display
Operating Range: -4°F to 100°F (-20°C to 38°C)
Humidity Range: 10% to 93% RH, non-condensing
