Product Details

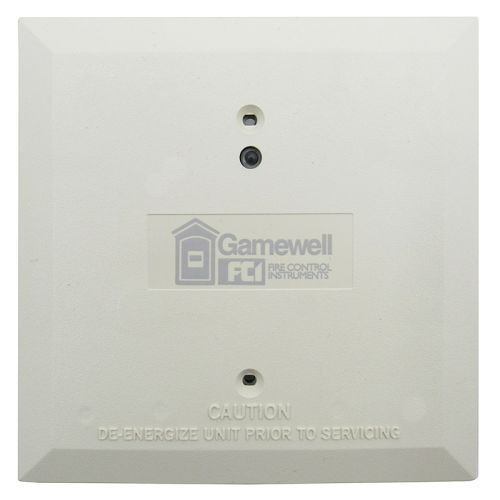

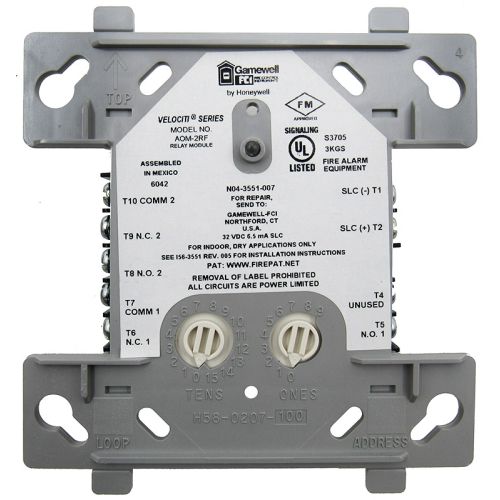

The Gamewell FCI AOM-2RF is a Velociti Series addressable output relay control module for Gamewell-FCI analog addressable fire alarm control panels. It provides two isolated Form-C relay contact sets that transfer simultaneously by panel command, making it useful for controlled relay output applications where contact wiring supervision is not required.
Key Specifications:
Type: Addressable output relay control module
Core Function(s): Switches two isolated Form-C relay contact sets by panel command
Loop/Protocol: Gamewell-FCI SLC; Velociti Series communication
Power: Powered by the SLC loop; .000375 amps supervisory current; .0065 amps alarm current
Indicators/UI: Bi-color LED flashes green when addressed and lights steady red upon activation; red LED only on non-Velociti panels; bi-color LED not available on GWF-7075
Circuit Configuration: Two isolated Form-C contact sets that transfer simultaneously
Relay Ratings: Up to 3A at 30 VDC resistive non-coded; 2A at 30 VDC resistive coded; 0.5A at 125 VAC resistive non-coded
Addressing: Rotary decimal switches, 01 to 159
Mounting: Mounts to a standard 4-inch square junction box, 2 1/8 inches deep
Compatible Accessories:
SMB500 - Optional surface-mount backbox
System Compatibility:
Compatible with Gamewell-FCI analog addressable fire alarm control panels that support Velociti Series SLC devices.
