Product Details

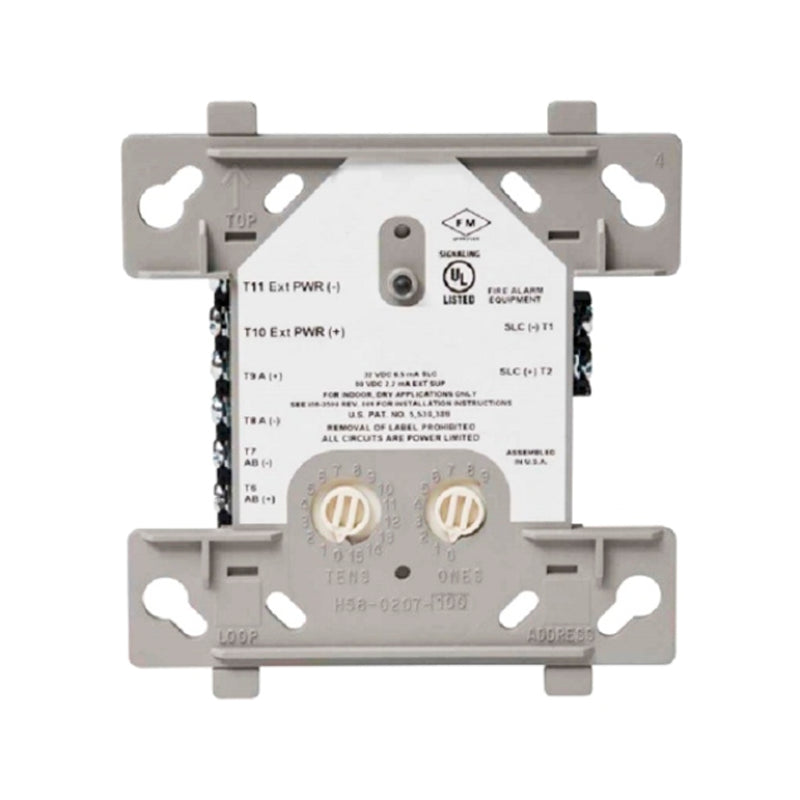

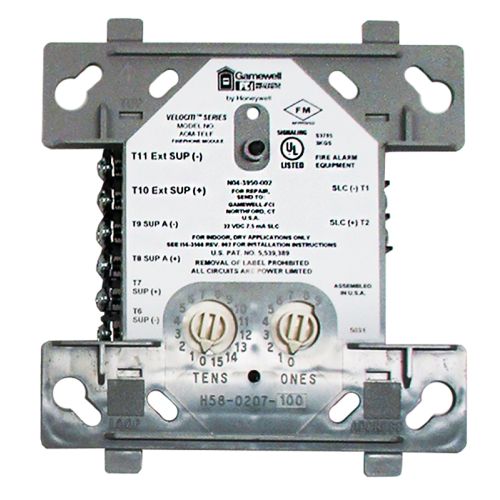

The Gamewell FCI AOM-TELF is a Velociti Series addressable audio evacuation telephone monitor module for Gamewell-FCI Emergency Voice Evacuation Systems. It controls communication between the command center and telephone jacks or warden stations, while supervising individual telephone jack and handset wiring.
Key Specifications:
Type: Addressable audio evacuation telephone monitor module
Core Function(s): Controls command center communication with telephone jacks and warden stations
Loop/Protocol: Gamewell-FCI SLC; Velociti Series communication
Power: Powered by the SLC loop; .0024 amps supervisory current; .0075 amps alarm current
Indicators/UI: Bi-color LED flashes green when addressed and lights steady red upon activation; red LED only on non-Velociti panels
Circuit Configuration: Class A fault tolerant or Class B two-wire telephone circuit wiring
Telephone Circuit: Supervises individual telephone jacks and handsets; reports normal, trouble, or telephone status to the panel
EOL Resistance: 3.9K ohms
Mounting: Mounts to a standard 4-inch square junction box, 2 1/8 inches deep
Compatible Accessories:
SMB500 - Optional surface-mount backbox
System Compatibility:
Compatible with Gamewell-FCI Emergency Voice Evacuation Systems that support Velociti Series SLC devices.
