Product Details

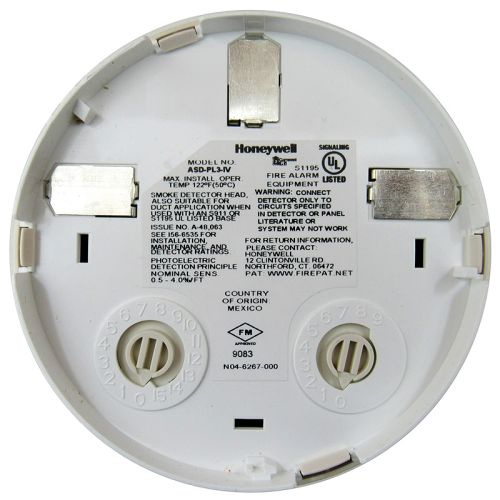

The Gamewell FCI ASD-PL3-IV is a Velociti Series 3 intelligent addressable photoelectric smoke detector (ivory “service” model). It uses a re-designed optical sensing chamber engineered to sense smoke produced by a wide range of combustion sources, and supports point ID addressing using rotary address switches for exact device location identification. The -IV service model operates on Velociti and CLIP protocol for backwards compatibility. It replaces older models like: ASD-PL2 and ASD-PL2F series.
Key Specifications:
Type: Intelligent addressable photoelectric smoke detector
Core Function(s): Provides addressable photoelectric smoke detection using an enhanced optical sensing chamber for broad smoke detection.
Loop/Protocol: Velociti SLC; Velociti and CLIP
Power: 15 to 32 VDC from SLC; 200 μA standby at 24 VDC; 2 mA in alarm @ 24 VDC (red LED enabled). Max Current 4.5 mA @ 24 VDC (amber LED enabled)
Indicators/UI: Dual LEDs for 360° visibility; LED blinks when polled and latches in alarm; address set by rotary decimal switches (01–159); local functional test via external magnet
Compatible Bases & Accessories:
B300-6-IV – Ivory 6-inch standard flanged low profile mounting base
B501-IV – Ivory 4-inch flangeless mounting base
B200S-IV – Ivory intelligent addressable sounder base
B224BI-IV – Ivory isolator detector base
B224RB-IV – Ivory relay detector base
RA100Z – Remote LED annunciator, 3–32 VDC (for use with B501 and B300-6)
TR300-IV – Ivory Trim Ring
System Compatibility: Works with E3 Series and S3 Series intelligent fire alarm control panels that support Velociti protocol on the SLC loop (service model also supports CLIP for backwards compatibility).
