Product Details

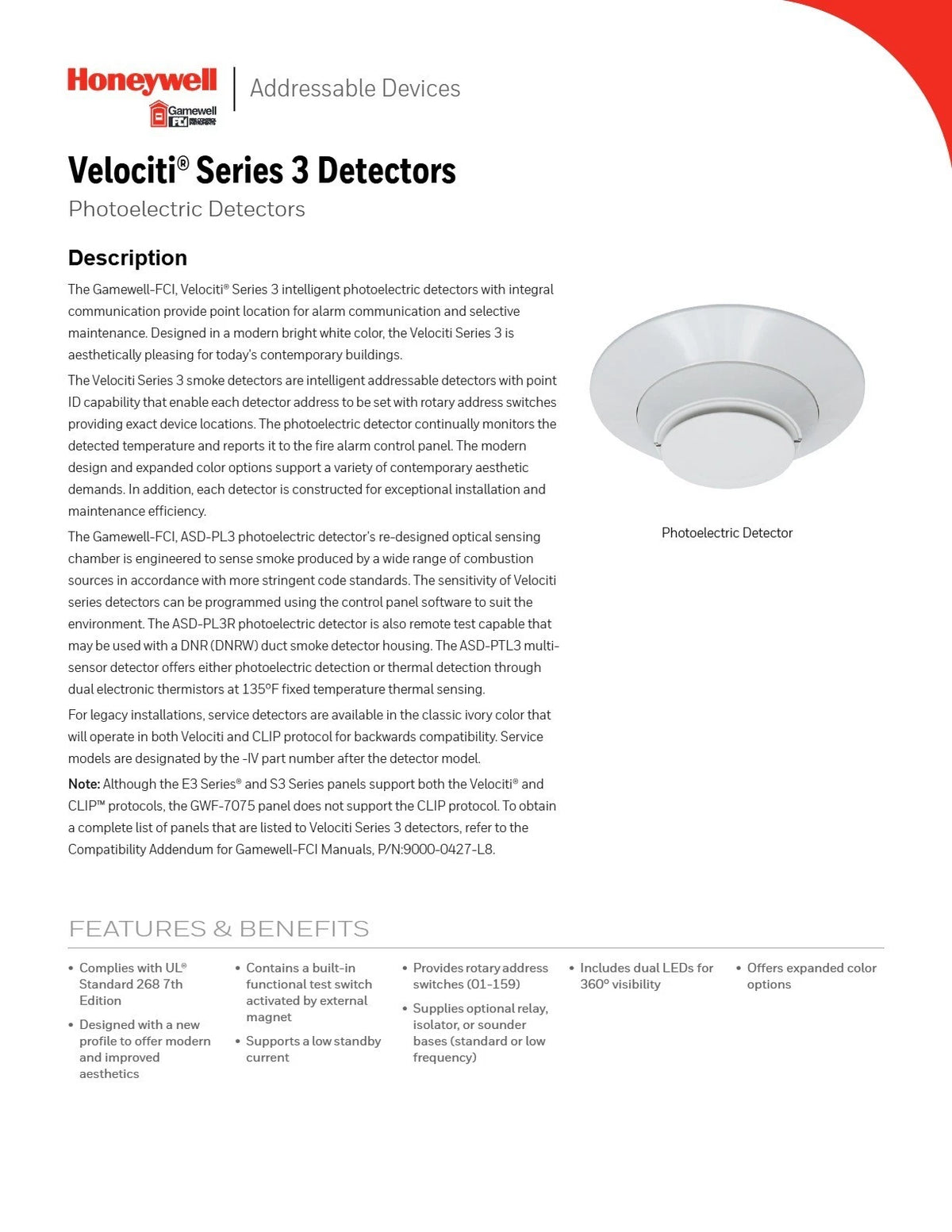

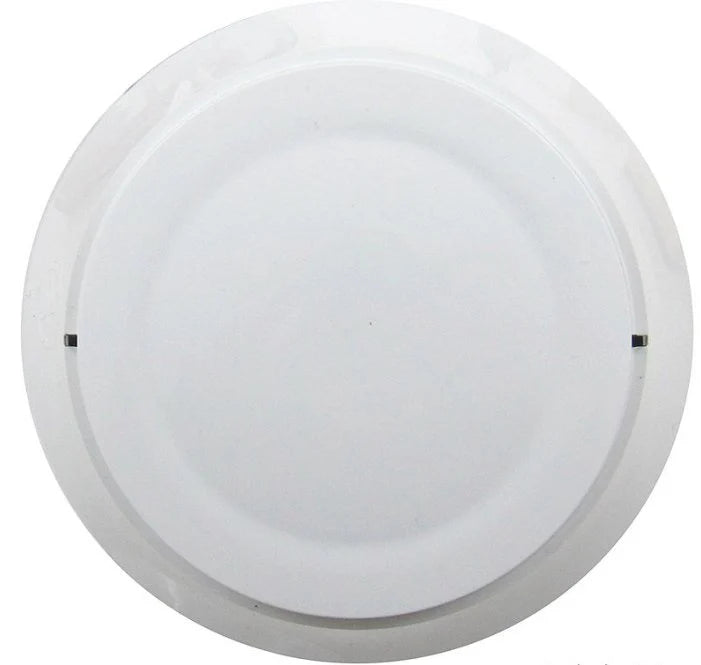

The Gamewell FCI ASD-PL3-IV is a Velociti Series 3 intelligent addressable photoelectric smoke detector (ivory “service” model). It uses a re-designed optical sensing chamber engineered to sense smoke produced by a wide range of combustion sources, and supports point ID addressing using rotary address switches for exact device location identification. The -IV service model operates on Velociti and CLIP protocol for backwards compatibility. It replaces older models like: ASD-PL2 and ASD-PL2F series.

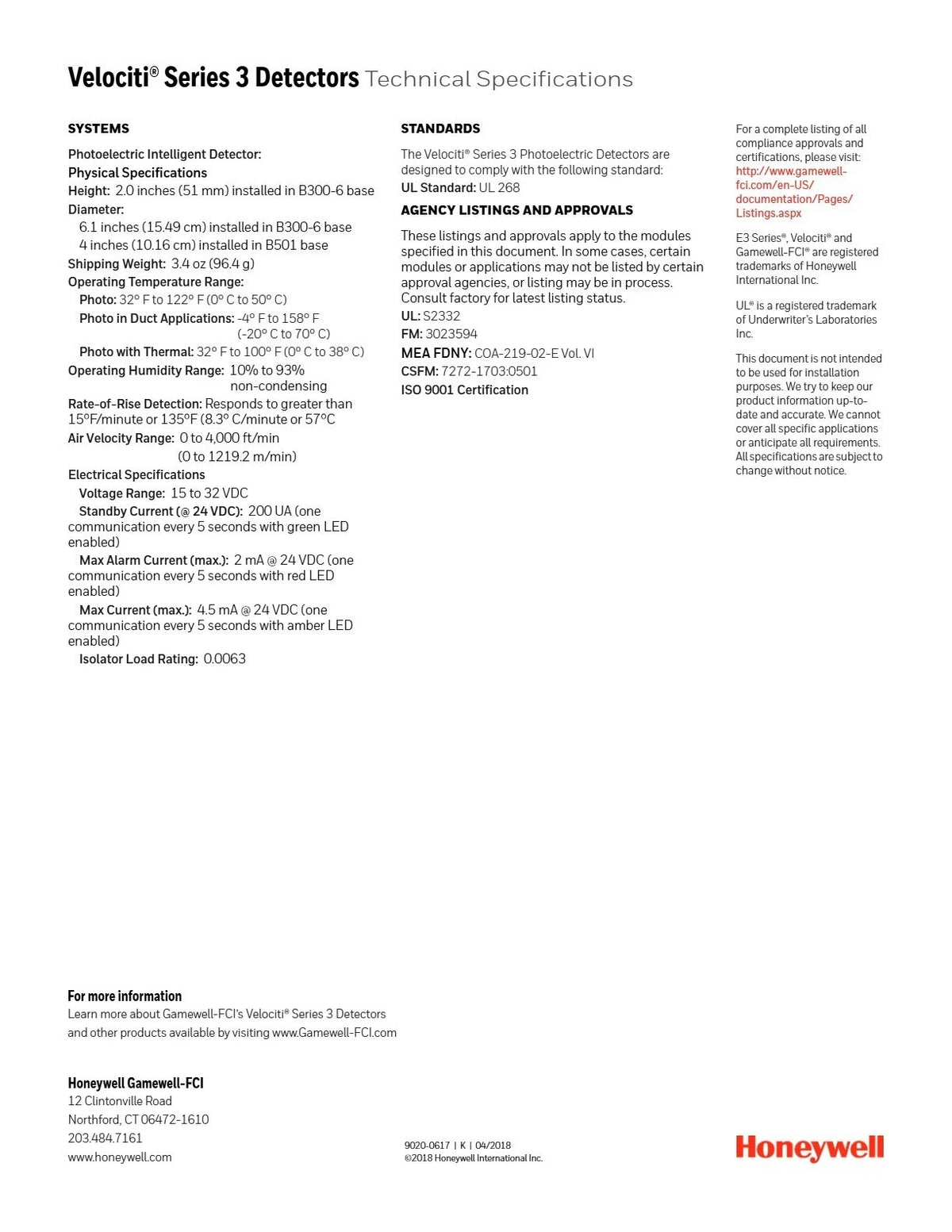

Key Specifications:
Type: Intelligent addressable photoelectric smoke detector
Core Function(s): Provides addressable photoelectric smoke detection using an enhanced optical sensing chamber for broad smoke detection.
Loop/Protocol: Velociti SLC; Velociti and CLIP
Power: 15 to 32 VDC from SLC; 200 μA standby at 24 VDC; 2 mA in alarm @ 24 VDC (red LED enabled). Max Current 4.5 mA @ 24 VDC (amber LED enabled)

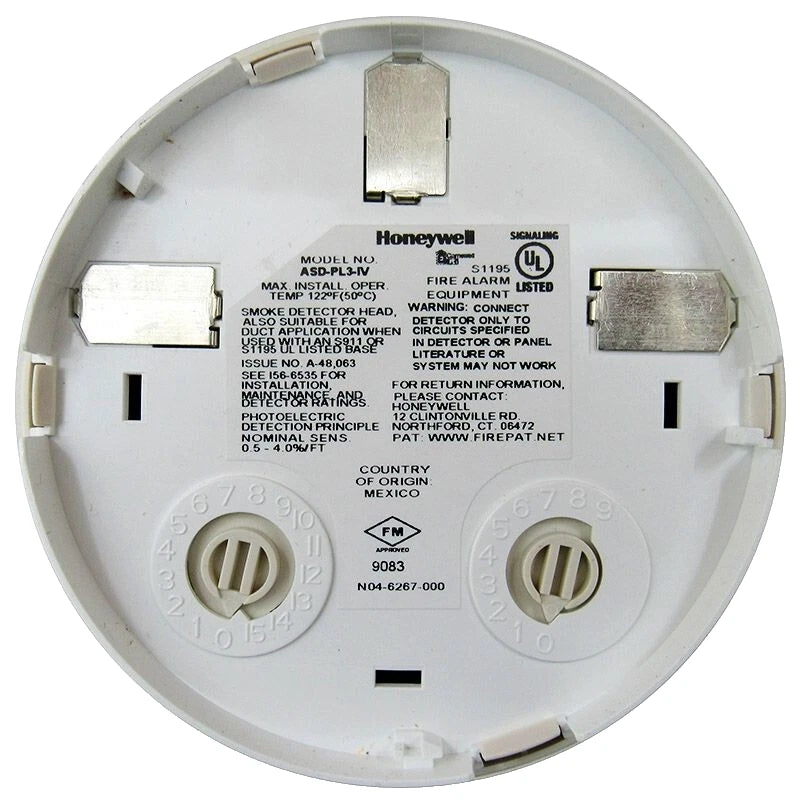

Indicators/UI: Dual LEDs for 360° visibility; LED blinks when polled and latches in alarm; address set by rotary decimal switches (01–159); local functional test via external magnet
