Product Details

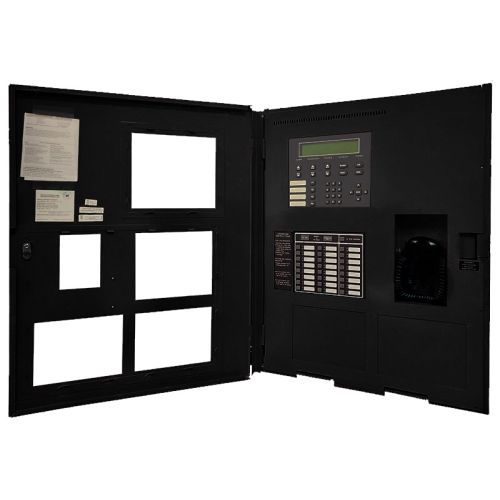

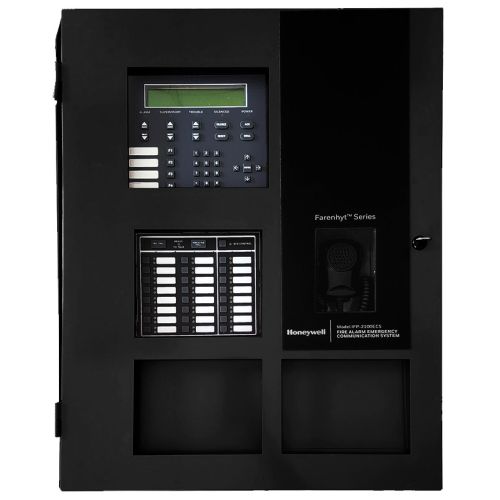

The IFP-2100ECSB is an intelligent addressable fire alarm control panel with an integrated Emergency Communication System in a black, surface-mount cabinet. One built-in SLC supports 159 IDP detectors and 159 IDP modules per loop (or 127 SD devices per loop) and system capacity can expand to 2100 points (IDP/SK) or 2032 points (SD). Eight Flexput circuits can be configured as NAC outputs or auxiliary power. Core ECS features include an onboard supervised microphone, fifteen recordable one-minute messages mapped to eight buttons, selectable 520 Hz tones, and support for 25 Vrms or 70.7 Vrms speaker circuits through external amplifiers. The panel networks multiple control units and supports up to 16 addressable amplifiers for a system total of 2000 W and up to 128 speaker circuits.
