Product Details

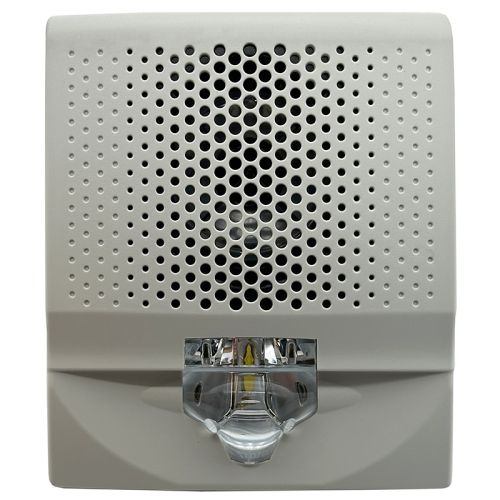

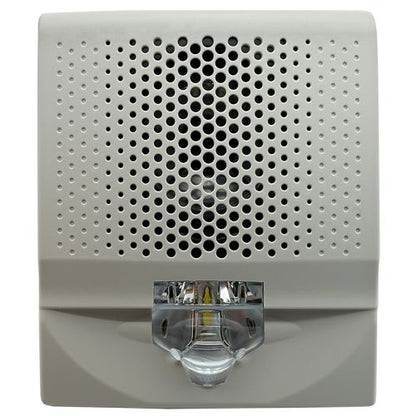

The Kidde EG4SVWF is a white Genesis EG4 Speaker Strobe for wall mounting.
Operating voltage 16 to 33 VDC, 16 to 33 VFWR.
Strobes feature field-selectable 15, 30,75, or 110 cd light output.
Speakers feature selectable wattage taps, while speakerstrobes allow for both wattage and light output levels to be configured in the field. Both settings remain clearly visible – even after final installation. Speakers are also capable of both 25V and 70V and voltage in a single model with a field selectable switch.
Compatible electrical boxes [1] 1-gang, 2-gang, 3.5-inch octagon, 4-inch square. Trim plates EG4TR, EG4TW.

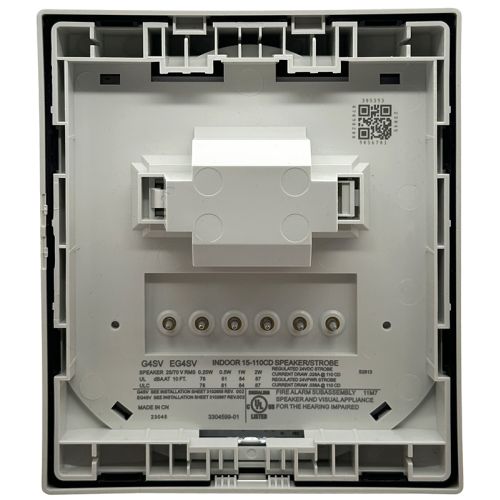

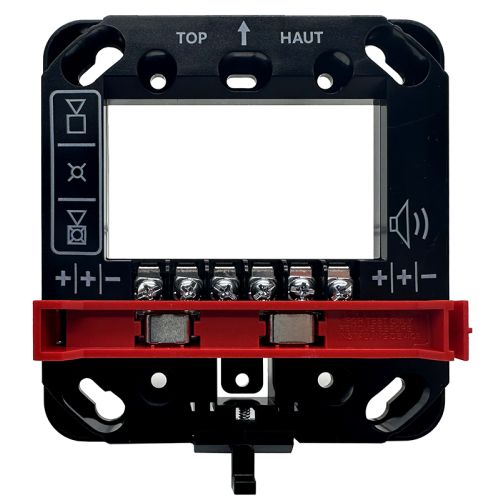

NOTE: Genesis EG4 horns and strobes mount to the required GP10 room side wiring plate. The GP10 mounting plate is included with the device for convenient pre-installing and pre-wiring.
