Product Details

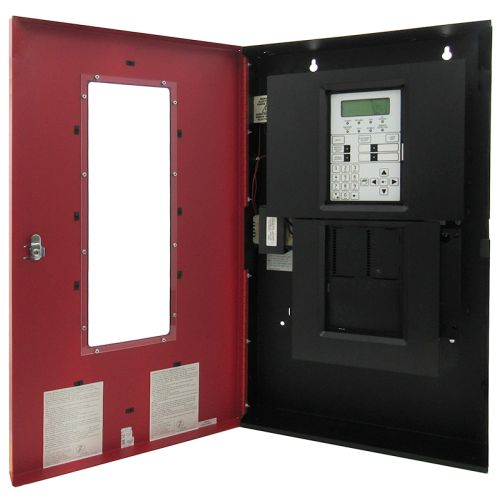

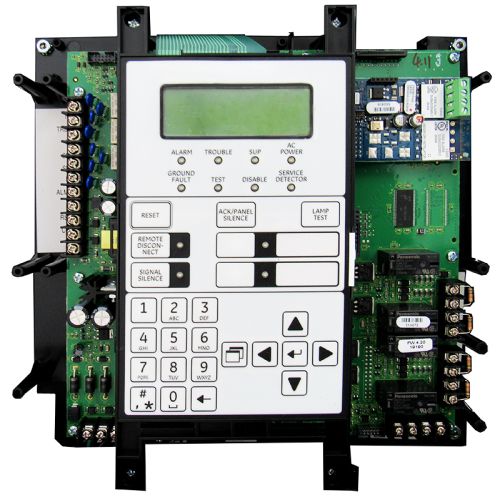

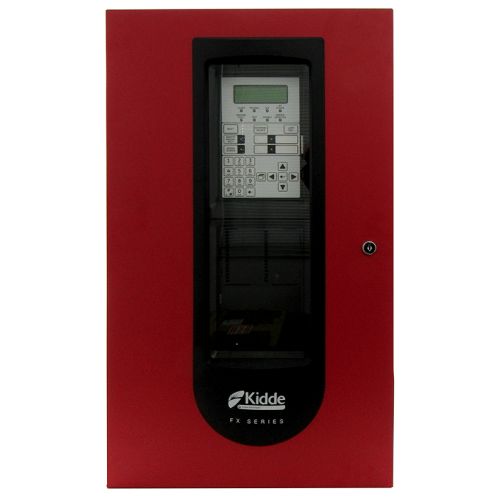

The Kidde FX-1000 is an intelligent addressable fire-alarm control panel. One Class A/B SLC loop supports 250 addressable points (125 detectors plus 125 modules), and three open expansion slots accept loop-controller cards to raise capacity to 1,000 points in 250-point increments. Four onboard NACs supply up to 6 A, configurable as four Class B or two Class A circuits. The panel operates from 120 VAC (2.0 A max) and provides 27.4 V DC power-limited outputs. Two 18 Ah batteries fit inside; charging capacity is 26 Ah. A dual-line dialer can be added with the optional SA-DACT card.
Model Variants:
FX-1000 – No dialer
FX-1000D – Dual-line dialer included
