Product Details

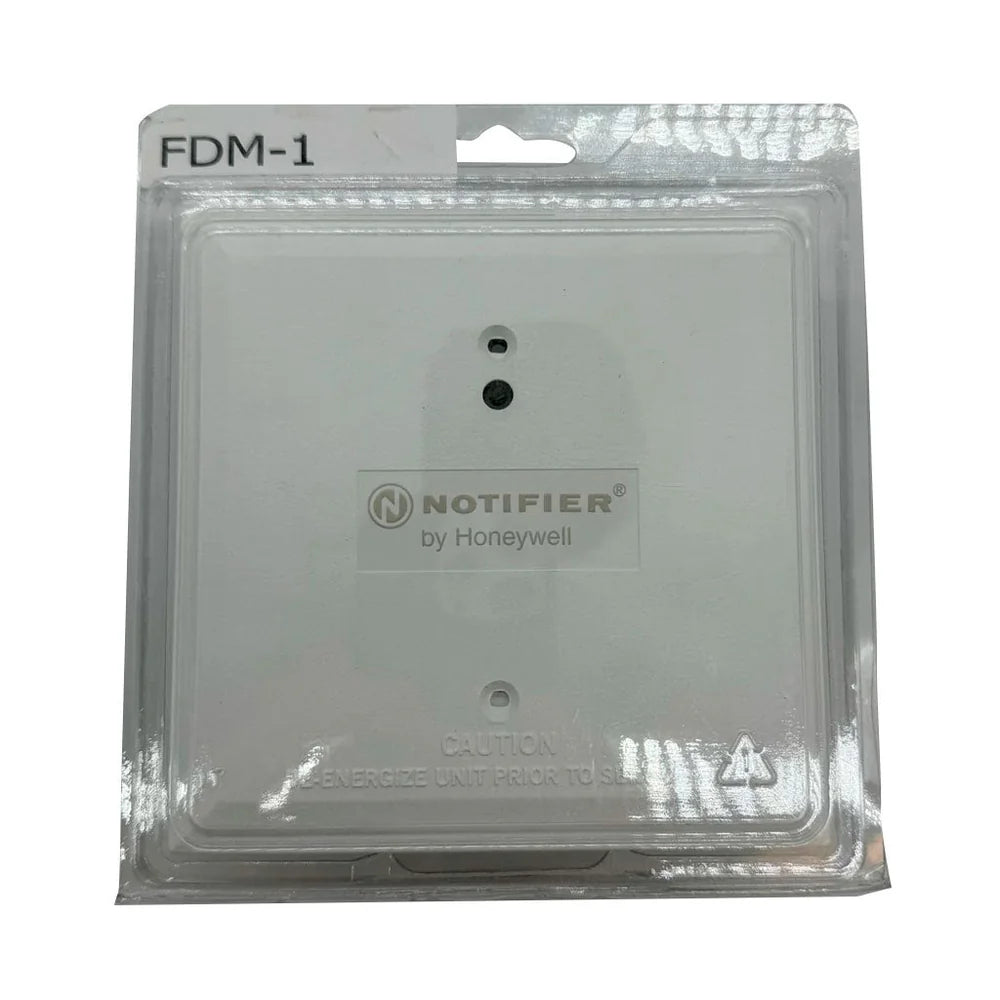

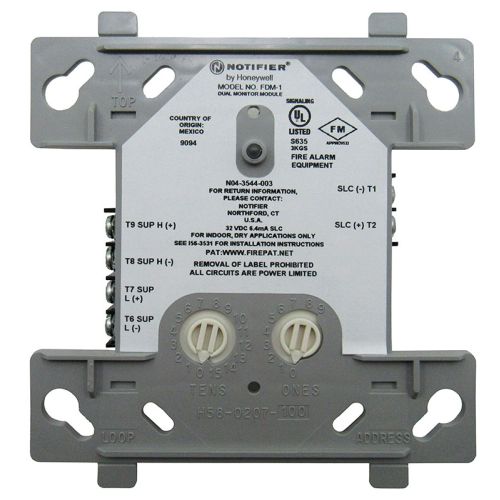

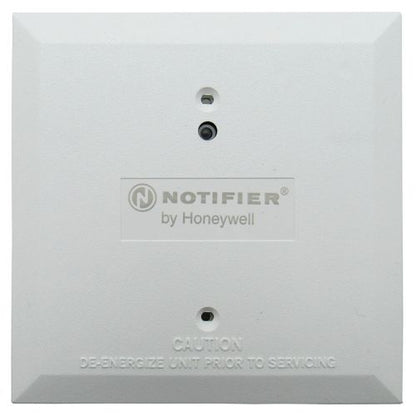

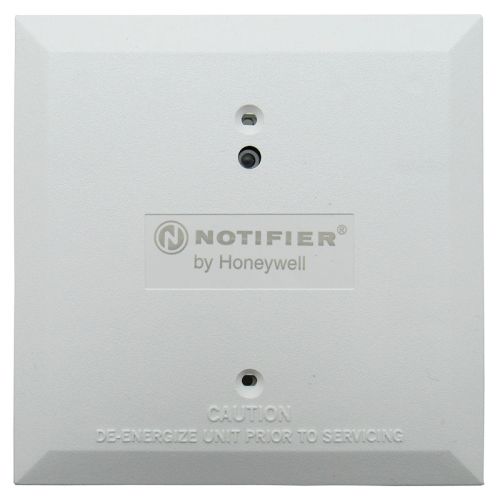

The Notifier FDM-1 is an intelligent addressable dual monitor module that supervises two independent Style B (Class B) dry-contact initiating device circuits at two separate, consecutive addresses on the SLC. It supports normally open fire alarm and supervisory contacts, and it can also monitor normally open or normally closed security contacts.
Key Specifications:
Type: Intelligent addressable dual monitor module
Core Function(s): Monitors and supervises two independent dry-contact IDCs and reports status back to the panel
Loop/Protocol: Notifier SLC; FlashScan address range 01-159; CLIP address range 01-99; automatically uses two consecutive addresses
Power: 15 to 32 VDC (SLC); 6.4 mA max (LED on); 750 uA average (LED flashing)
Indicators/UI: Single, panel-controlled red LED for module status
Circuit Style: Two Style B (Class B) IDCs only (Class A not supported)
Wiring Limits: 47K EOL; maximum IDC wiring resistance 1,500 ohms
Compatible Accessories:
SMB500 - Optional surface-mount backbox
CB500 - Control module barrier for separating power-limited and non-power-limited wiring in the same box
System Compatibility:
Works with compatible Notifier intelligent fire alarm control panels that support FlashScan or CLIP protocol operation on the SLC loop.
