Product Details

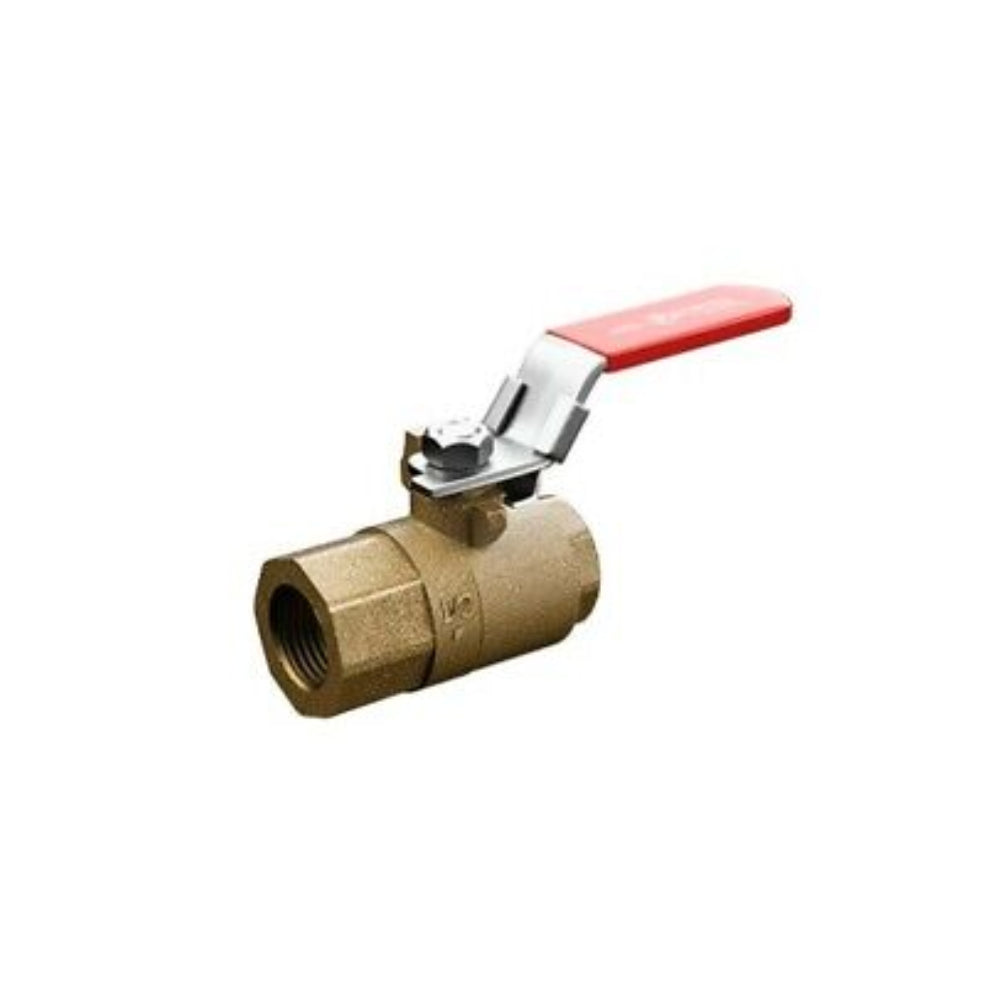

Product OverviewThe Model BVL is a lever-type bleeder valve designed for use as a test point for pressure-operated devices on wet pipe sprinkler systems with excess pressure, as well as on dry pipe sprinkler systems. Installed in-line with the pressure device, it enables safe removal or functional testing without altering the system’s overall pressure.
When the valve handle is positioned perpendicular to the 1/2" pipeline, the flow from the supply side is sealed off, while a small exhaust orifice opens to relieve pressure between the valve and the connected device. This controlled low-pressure release allows proper actuation testing and verification of the pressure-operated equipment. Engineered with a bronze body and zinc-plated steel handle, the BVL supports up to 300 PSI (20.7 BAR), ensuring reliability in demanding system conditions.
Key Features- Lever-type bleeder valve for testing and servicing pressure-operated devices
- Suitable for wet pipe systems with excess pressure and dry pipe sprinkler systems
- Enables device removal or testing without impacting overall system pressure
- Shutoff position isolates the supply and opens an exhaust orifice for controlled pressure release
- Valve body constructed of bronze; handle made of zinc-plated steel
- Maximum pressure rating: 300 PSI (20.7 BAR)
- Connection size: 1/2" NPT
- Exhaust orifice: 0.125" (3 mm)
When the valve handle is positioned perpendicular to the 1/2" pipeline, the flow from the supply side is sealed off, while a small exhaust orifice opens to relieve pressure between the valve and the connected device. This controlled low-pressure release allows proper actuation testing and verification of the pressure-operated equipment. Engineered with a bronze body and zinc-plated steel handle, the BVL supports up to 300 PSI (20.7 BAR), ensuring reliability in demanding system conditions.
Key Features- Lever-type bleeder valve for testing and servicing pressure-operated devices
- Suitable for wet pipe systems with excess pressure and dry pipe sprinkler systems
- Enables device removal or testing without impacting overall system pressure
- Shutoff position isolates the supply and opens an exhaust orifice for controlled pressure release
- Valve body constructed of bronze; handle made of zinc-plated steel
- Maximum pressure rating: 300 PSI (20.7 BAR)
- Connection size: 1/2" NPT
- Exhaust orifice: 0.125" (3 mm)
