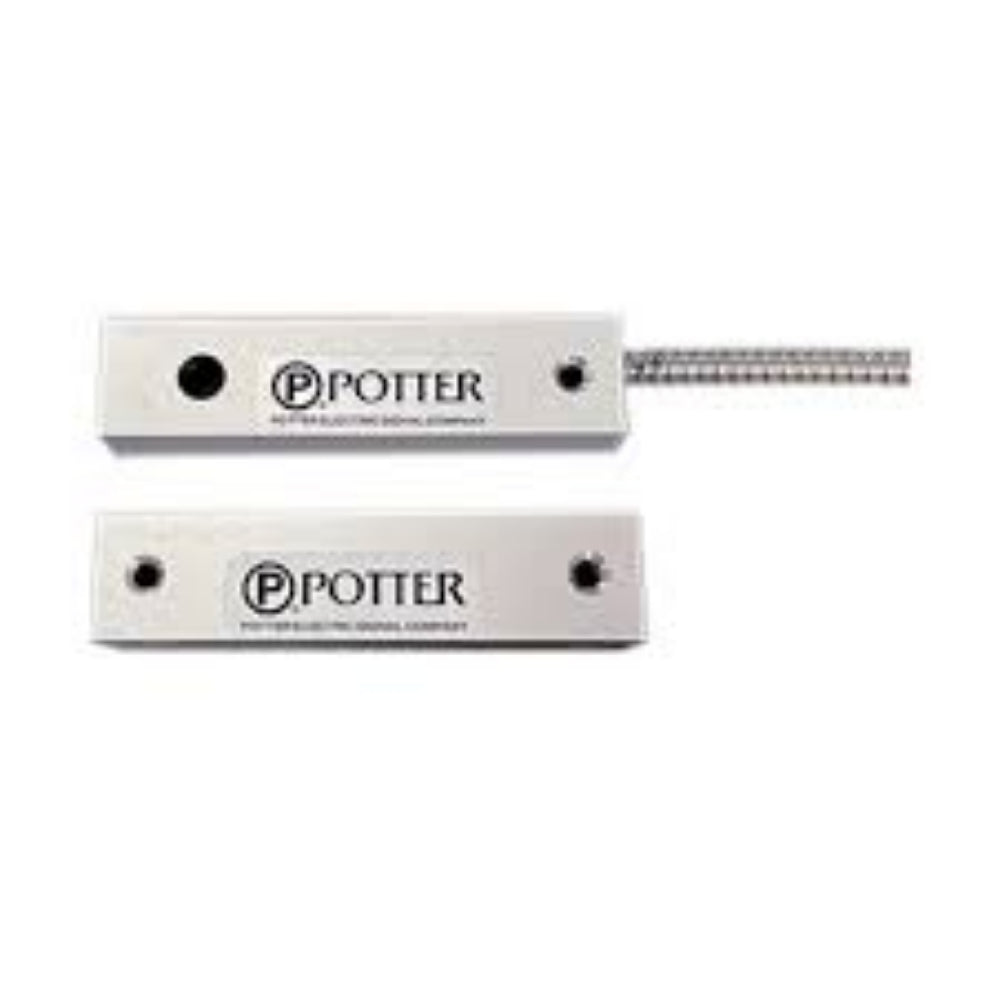

POTTER HSC-M

Product OverviewThe HSC-M High Security Contact is engineered to monitor the open or closed status of safes, vaults, and other high-security enclosures. Built with defeat-resistant design elements, it meets UL 634 Level 1 (9th edition) for both in-swing and out-swing doors. Its low-profile construction, integrated pry-tamper protection, and no-adjustment installation make it ideal for critical security applications requiring dependable and tamper-resistant monitoring.

Key Features- Tested to UL 634 Level 1 (9th edition) for both in-swing and out-swing doors
- Available with single or dual alarm contacts
- No adjustment required during installation
- No brackets needed for most out-swing door applications
- Solid, color-coded lead wires for simplified wiring
- Built-in removal/pry tamper—no back plates required
- Low-profile housing with two-hole mounting
- Cost-effective high-security design
- Custom lead lengths available: 3 ft, 6 ft, and 8 ft
- Dimensions: 4.25" × 1" × 1"
- Switch Contact Ratings:- 30 VDC max switching voltage
- 250 mA max switching current
- 0.25 W max power rating

- Ambient Temperature Range: –40°F to 176°F (–40°C to 80°C)
