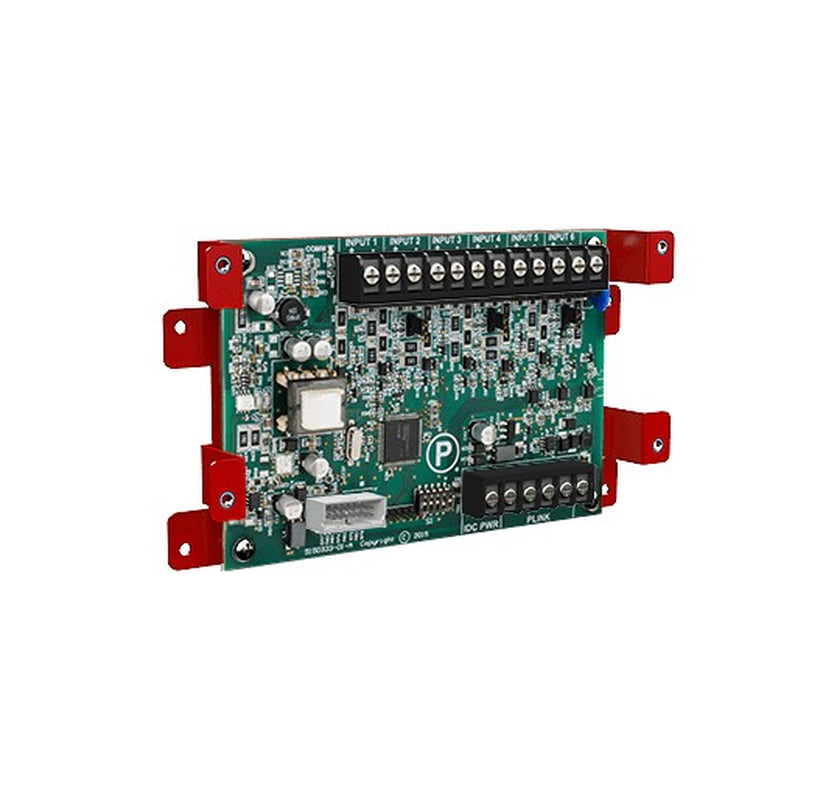

POTTER IDC-6

Product Overview The Potter IDC-6 Initiating Device Circuit Expander (IDC-6) adds six additional supervised, power-limited input circuits to compatible fire alarm control panels. It is designed to monitor 2-wire smoke detectors or other initiating devices, including automatic, manual, waterflow, or supervisory circuits. Communication with the control system is accomplished via the PLink bus. Up to 31 IDC-6 modules can be connected per panel, providing flexible expansion for larger installations. The module can be installed within the main control panel, intelligent power supplies, or accessory cabinets (AE-2, AE-8, AE-14, or PSN-1000/E).

Key Features

- Expandable Inputs: Provides six additional IDC input circuits per module.
- Panel Compatibility: Supports up to 31 modules per control panel.
- Device Support: Suitable for 2-wire smoke detectors and other initiating devices in accordance with NFPA 72.
- Mounting Flexibility: Can be mounted in the control panel, accessory cabinets, or power supply enclosures using the included Stacker Bracket.
- Supervised and Power-Limited: Ensures reliable operation and compliance with safety standards.
- Communication: Interfaces with the system via the PLink communication bus.
- Wiring: Maximum PLink wire length of 20 feet.
