Product Details

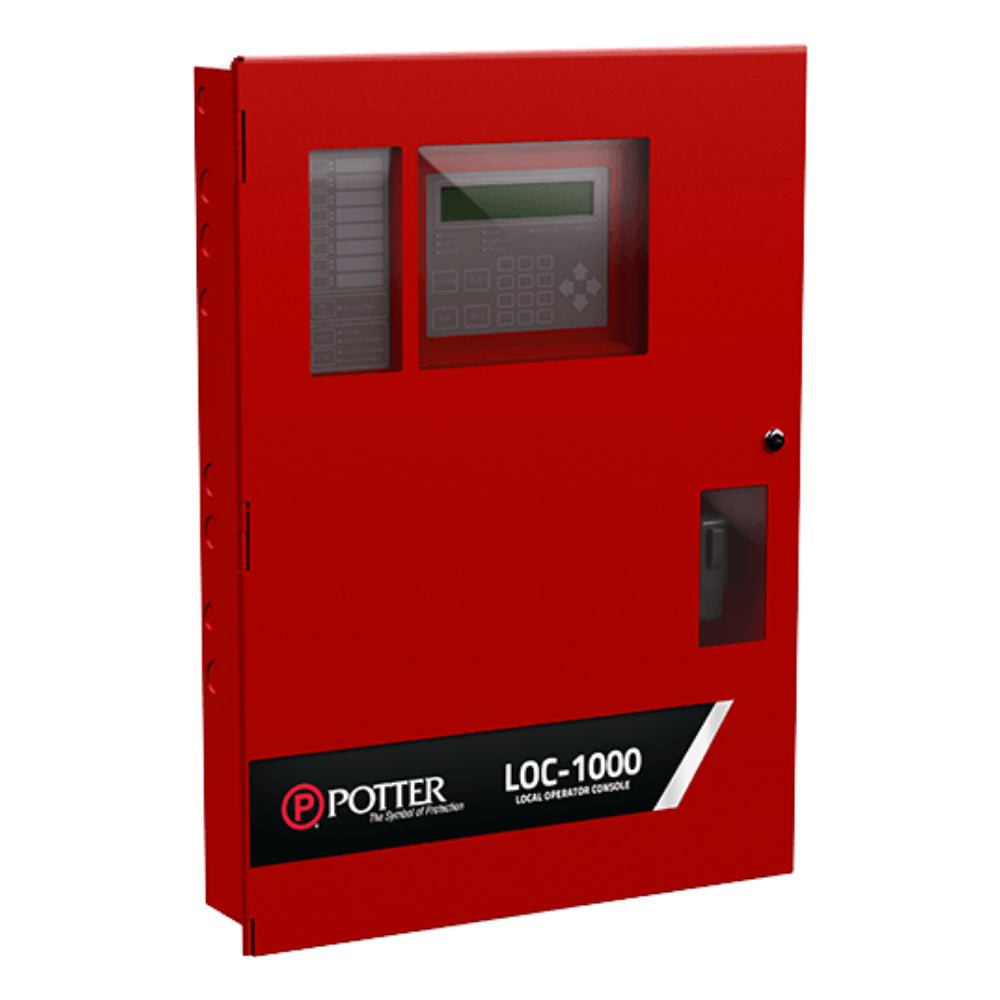

Product Overview The Potter LOC-1000 Local Operator Console allows remote control of fire alarm and emergency communication systems (ECS) for safe and efficient navigation of building occupants to exits. Using the Potter Panel Programmer, the LOC-1000 operates within a priority structure, granting highest-priority control to the IPA-4000V panel or other LOC units. Functions such as all-call paging, individual zone paging, and ECS activation can be executed directly from the console. The unit features a supervised auxiliary input compatible with low-level audio sources and background music, and has space for an internal LOC-PSN100 power supply. Up to 30 LOC-1000 consoles can be linked to an IPA-4000V or AFC-1000V system.
Key Features
- Remote system control for fire alarm and ECS operations
- Programmable ACU and LOC prioritization for highest-priority panel control
- Supervised auxiliary input supporting 600 Ω, 1 VRMS, and line-level audio sources
- Built-in microphone for local audio input
- Space for optional internal LOC-PSN100 power supply
- Supports up to 30 LOC-1000 consoles per system
- Dimensions: 21 3/8" W × 29 1/8" H × 4 7/8" D
- Standby current: 77 mA; alarm current: 107 mA
- Operating temperature: 32°F to 120°F (0°C to 49°C), max 93% non-condensing humidity
