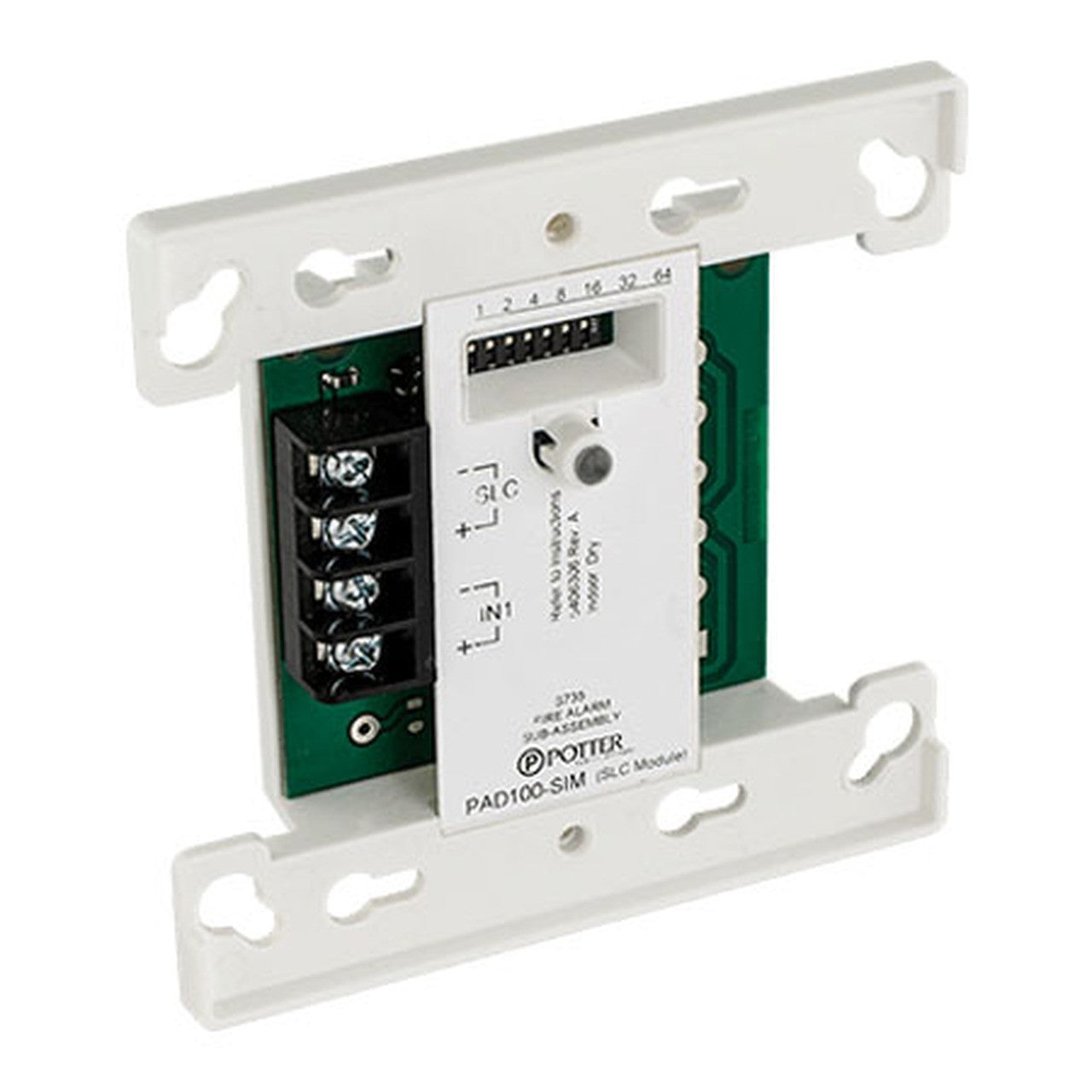

POTTER PAD 100-SIM

Product OverviewThe Potter PAD100-SIM Single Input Module is an addressable interface module designed to monitor one Class B circuit using a single SLC loop address. It supports dry contact devices such as sprinkler waterflow switches, valve tamper switches, or conventional pull stations, providing reliable integration into Potter addressable fire alarm systems.

The module mounts easily on a standard 4" square or double gang box and features a red LED indicator to display device status: normal operation is indicated by a slow flashing LED during polling, and activation triggers a fast flashing LED. The PAD100-SIM is fully compatible with Potter IPA and AFC/ARC series fire alarm control panels, enabling flexible and straightforward system integration.

Key Features- Product Type: Single input interface module
- Catalog Number: PAD100-SIM
- Monitoring Capability: 1 Class B input
- SLC Support: Class A, Class X, and Class B loops
- Mounting: Standard 4" square or double gang box
- Wiring Terminals: Accessible when mounted; supports 22–12 AWG
- LED Indicator: Red LED shows polling and activation status
- Compatibility: Works with Potter IPA and AFC/ARC addressable fire alarm control panels
- Application: Integration of dry contact devices into addressable fire alarm systems
