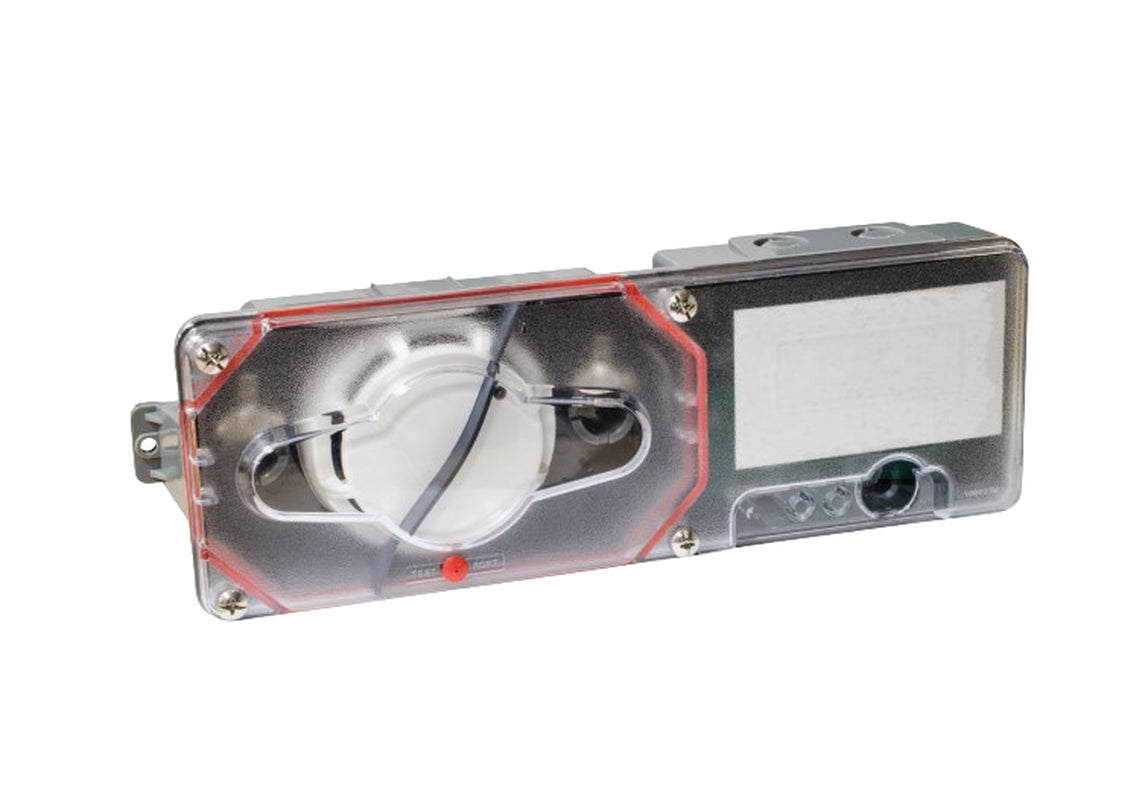

POTTER PAD 200-DUCT

Product OverviewThe PAD200-DUCT Analog Addressable Duct Detector is engineered to meet NFPA requirements and local codes for smoke detection within HVAC duct systems. It utilizes intake and exhaust sampling tubes to monitor airflow for smoke presence, ensuring efficient detection across duct velocities from 100 to 4,000 ft/min. The unit includes a clear housing cover, a pre-installed detector head, and a 7-inch exhaust tube. Compatible with IPA and AFC/ARC addressable panels, the PAD200-DUCT installs easily, without needing to remove the detector head, and features enhanced sensing technology compliant with UL 268 7th edition standards.

Key Features- Model Number: PAD200-DUCT
- Item Number: 3992792
- Designed for smoke detection in HVAC ducts
- Ships complete with detector head (PAD200-DD) and housing
- Compatible with addressable IPA and AFC/ARC series panels
- SLC Class A, Class X, and Class B wiring support
- In/out SLC terminals for streamlined installation
- Head remains in place during installation
- No screens or filters, reducing maintenance needs
- Air velocity range: 100 to 4,000 ft/min
- Alarm set point: Fixed at 2.5%/ft
- Self-diagnostic sensitivity testing
- Housing: Gray plastic backbox with clear cover
- Dimensions: 13.5” L × 4.5” W × 2.25” H
- Weight: 2 lbs (max)
- Compatible sampling tubes: 2.5 ft, 5 ft, or 10 ft, cut to size
