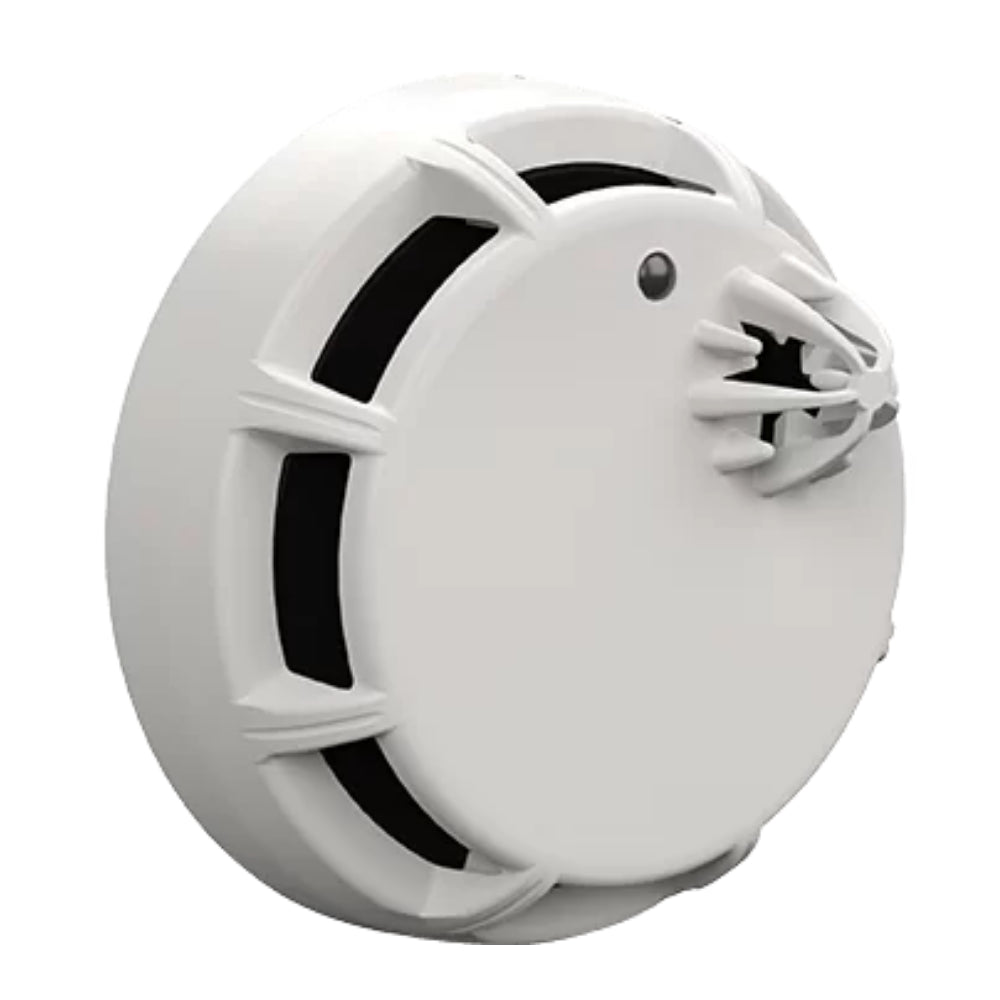

POTTER PAD 200-PHD

Product Overview The Potter PAD100-PHD is an analog addressable combination smoke and heat detector compatible with fire alarm control panels that utilize the Potter Addressable Device (PAD) protocol. It integrates a photoelectric smoke sensor with a rate-of-rise and/or fixed temperature heat sensor in a single low-profile unit. The heat detection uses a proven thermistor for accurate and reliable operation, while the sensor communicates its sensitivity and status directly to the control panel. The off-white durable plastic housing is designed to blend seamlessly with ceilings.

Key Features

- Combination Detection: Selectable rate-of-rise and/or fixed temperature heat sensing plus photoelectric smoke detection.
- Wide Smoke Sensitivity Range: 1.1–3.5%/ft adjustable to suit application requirements.
- LED Alarm Indicator: Visual indicator for alarm status.
- Addressable Communication: Sensor reports sensitivity and status to the control panel.
- Optional Locking Tab: Prevents unauthorized removal of the detector.
- Low Profile: Height 1.94 in (49 mm), diameter 3.93 in (100 mm), blends with ceiling.
- UL Listed: Complies with smoke calibration and sensitivity standards.
- Operating Range: 24 VDC, 300 µA current draw, temperature 32–120 °F (0–49 °C), 0–93% RH non-condensing.
- Installation Friendly: DIP switch addressing; no special programming tools required.
- Technical Capacity: Supports up to 127 addresses per loop, with up to 30 indicators in alarm per loop.
- Weight & Color: 3.6 oz (102 g) without base; eggshell white finish.
