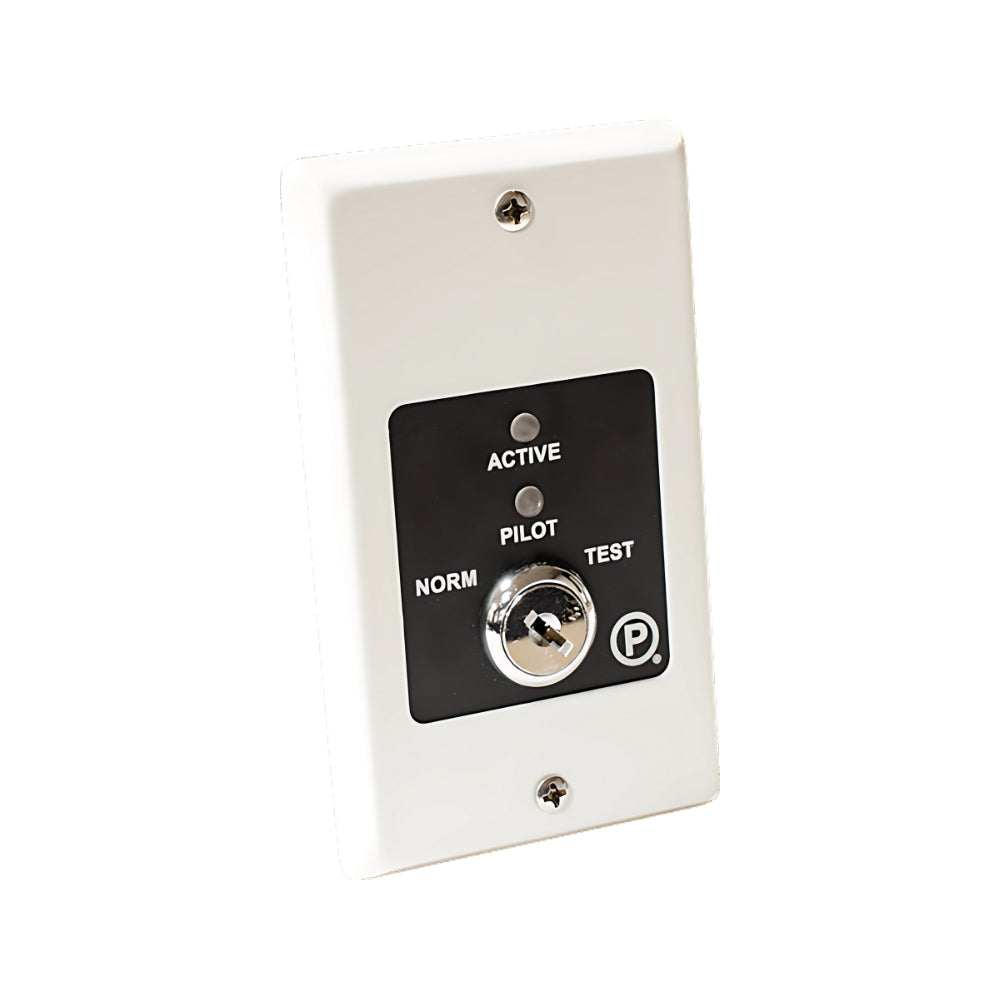

POTTER PAD100-DRTS

Product Overview The PAD100-DRTS is a supervised remote test switch designed for use with the PAD100-DUCTR duct detector. It allows remote testing of the duct detector without requiring an SLC loop address. Active and Pilot LEDs provide clear visual status of the detector, while the keyed switch ensures secure and controlled operation. Compatible with IPA Series panels, it mounts conveniently in a single gang box or Potter P32-BB/DBB enclosure.

Key Features

- Supervised remote test switch for PAD100-DUCTR duct detector
- Active and Pilot LEDs for detector status indication
- Keyed switch for secure remote testing
- No SLC loop address required
- Compatible with IPA Series panels
- Mounts in single gang box or Potter P32-BB/DBB
- Wiring terminals accept 22–12 AWG conductors
- Operating voltage: 24V
- Max standby current: 10mA; max alarm current: 15mA
- Operating temperature: 32°F–120°F (0°C–49°C), indoor use only
- Operating humidity: 0–93% non-condensing
- Maximum modules per PAD100-DUCTR: 1 unit
- Dimensions: 4.75" H × 2.75" W × 1" D (187 × 108 × 40 mm)
- Shipping weight: 0.65 lbs
