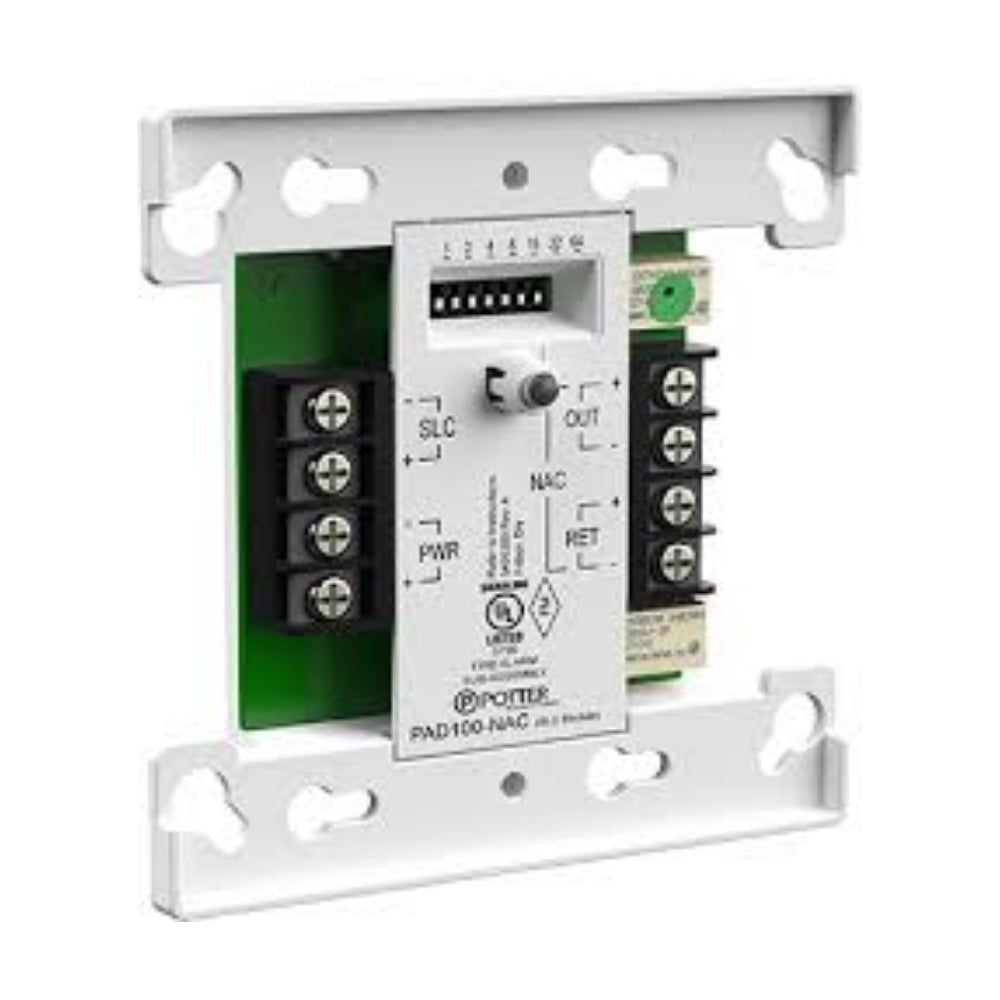

POTTER PAD100-NAC

Product OverviewThe PAD100-NAC is an intelligent notification appliance circuit module that occupies a single address on the SLC loop. It delivers a programmable, supervised output for controlling one Class B or Class A NAC, or a Class B releasing circuit. The unit requires a 24 VDC auxiliary power source, which it continuously supervises for proper operation. A built-in red LED provides visual status indication, flashing during normal polling from the control panel.

Key Features- Provides a supervised, programmable output for NAC or releasing applications
- Supports Class A or Class B NAC wiring configurations
- Compatible with SLC Class A, Class X, and Class B circuits
- Monitors the presence of required 24 VDC auxiliary power
- Includes status LED for polling indication
- Uses one address on the SLC loop; supports up to 127 modules per loop
- Mounts in a standard 4" square or double-gang electrical box
Specifications:

- Operating Voltage: 24.0 V
- SLC Current (Standby/Alarm): 200 µA max
- Auxiliary Power Input: 16–33 VDC
- Output Rating: 24 VDC, 2A
- EOL Resistor: 5.1K Ω
- EOL Resistor Diode (Releasing use): Stock #3005012 (not included)
- Temperature Range: 32–120°F (0–49°C)
- Humidity: 0–93% non-condensing
- Dimensions: 4.17" × 4.17" × 1.14"
- Shipping Weight: 0.6 lbs
