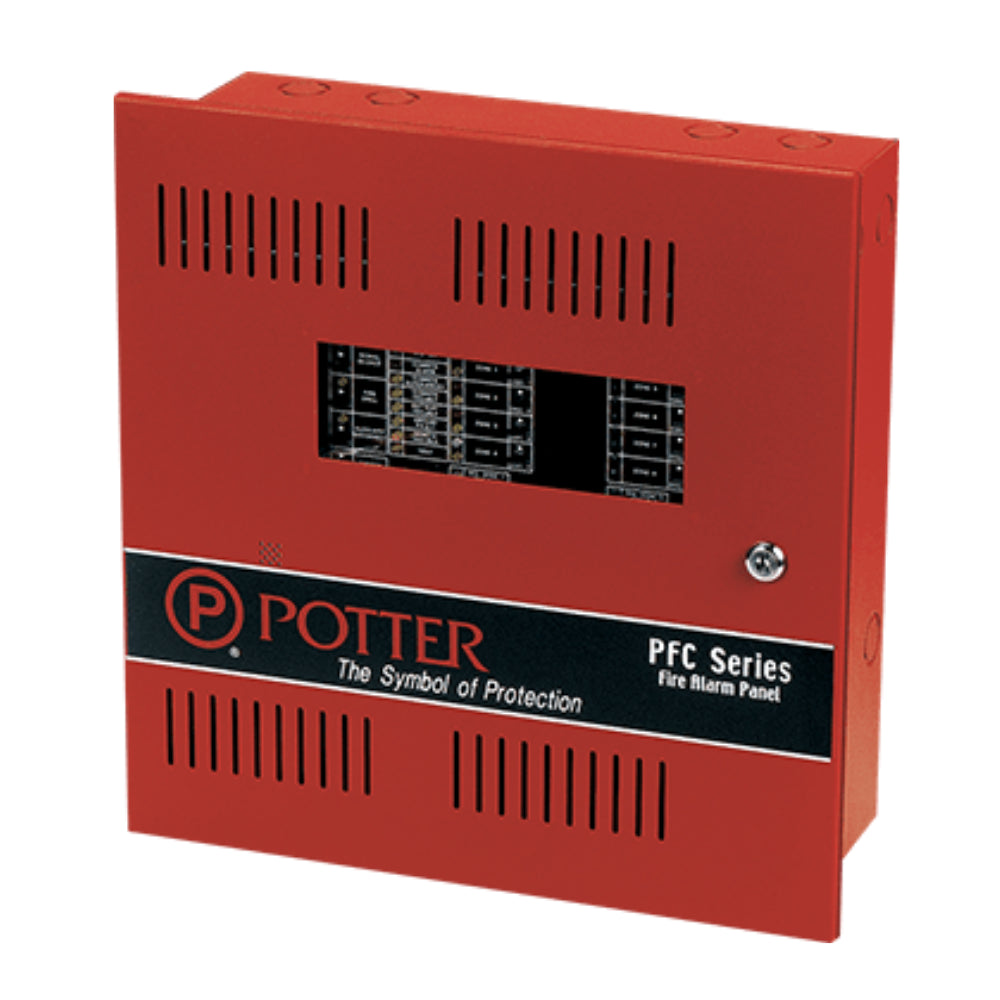

POTTER PFC-5004E

Product Overview The PFC-5004E Fire Alarm Control Panel is a microprocessor-based panel designed for small to medium commercial, residential, multi-family, institutional, and industrial occupancies. It provides fully configurable initiating and indicating circuits to meet specific system requirements. The panel includes a built-in 5 Amp power supply, RS-485 interface for multiplexed remote annunciators, and features for alarm verification, auto signal silence, and walk testing. Expansion options allow additional initiating and indicating circuits using the ZA-42 Adder Circuit Module.

Key Features

- 4 Class B (Style B) Initiating Circuits, configurable as 2 Class A (Style D) circuits; expandable to 8 Class B or 4 Class A
- 2 Class A/B (Style Z/Y) Indicating Circuits with individual trouble indicators; expandable to 4 Class A/B
- Configurable audibles: Steady, Temporal Code, California Code, or March Time
- Predefined initiating circuits configurable as waterflow or latching/non-latching supervisory
- Auxiliary relay contacts: Common Alarm, Common Trouble, and Common Supervisory
- Built-in 5 Amp power supply with 4-wire regulated 24VDC smoke power output (100 mA max)
- Interface for remote trouble indicators and RA8F multiplexed remote annunciators (up to 3)
- Zone disconnect switches
- Walk test operation and selectable alarm verification
- Extensive transient protection
- Easy configuration via DIP switches
