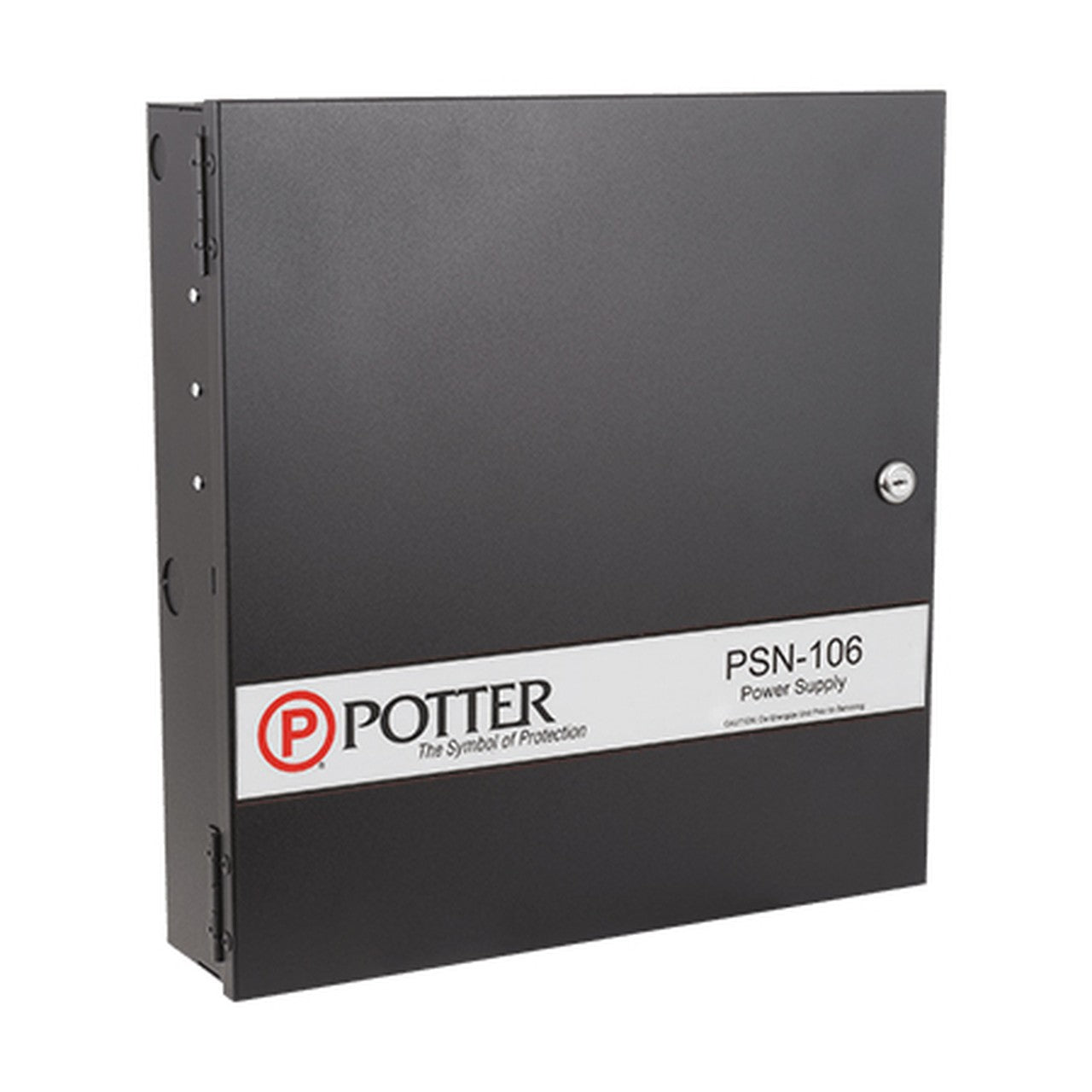

POTTER PSN-106B

Product Overview

The PSN-106B Notification Power Supply from Potter provides reliable, regulated 24 VDC power for fire alarm and notification systems. Designed for versatility and high-performance, the PSN series delivers continuous output for multiple notification circuits, supporting both standard and Class “A” (Style Z) configurations. Its robust construction and easy installation features make it suitable for a wide range of commercial and industrial applications.

Key Features- Power Output: 10 amps regulated with 6 outputs; each output rated at 3 amps maximum
- Circuit Configuration: Supports up to three Class “A” (Style Z) notification circuits
- Battery Support: Supervised battery charger at 27.3 VDC @ 1A; supports 7–55 AH batteries
- Installation: Easy-to-install cabinet with leveling mounts, wiring knockouts on sides and top, and key lock for security
- Durable Construction: 18-gauge cold-rolled steel cabinet with red powder coat finish
- Input Voltage: Operates on 120 VAC or 220 VAC power input
- Versatility: Outputs can be used continuously without derating, offering maximum flexibility for notification applications
