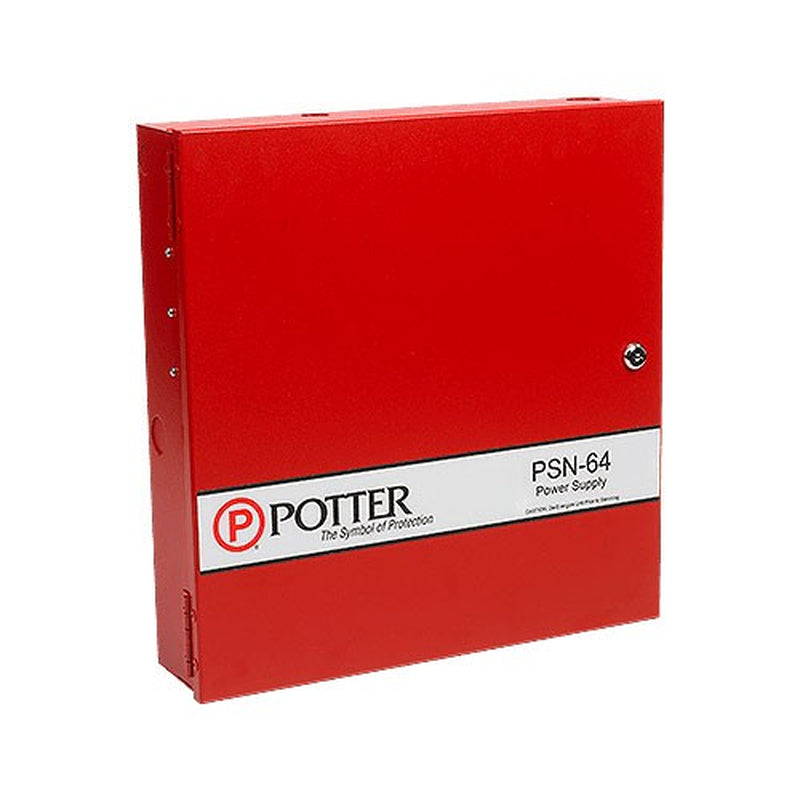

POTTER PSN-64

Product Overview The Potter PSN-64 is a conventional notification power supply delivering 6 A of continuous power across four independent outputs. Each output is rated at 3 A and can operate at full load without derating. Designed for flexibility and system reliability, the PSN-64 supports Class A configurations, synchronized notification circuits, supervised battery charging, and compatibility with major NAC appliance brands.

Key Features

- 6 A total output distributed across four 3 A max circuits
- Configurable as up to three Class “A” Style “Z” notification circuits
- Supervised battery charger: 27.3 VDC @ 1 A (supports 7–55 AH batteries)
- Two trouble relays (5 A at 30 VDC) for system and low-AC supervisory conditions
- Diagnostic and status LEDs for NAC activity, NAC trouble, Earth fault, AC, and battery fault
- Trouble Memory feature to store previously restored trouble conditions
- Synchronized notification appliance circuits compatible with Potter/AMSECO®, Wheelock®, Gentex®, and System Sensor®
- Output circuits configurable via DIP switches
- Reference EOL supports resistor values from 2 kΩ to 27 kΩ
- Quadrasync for system-wide synchronization across single or multiple NAC brands
- PassThru mode allows outputs to follow the input signal
