POTTER RA-6500R

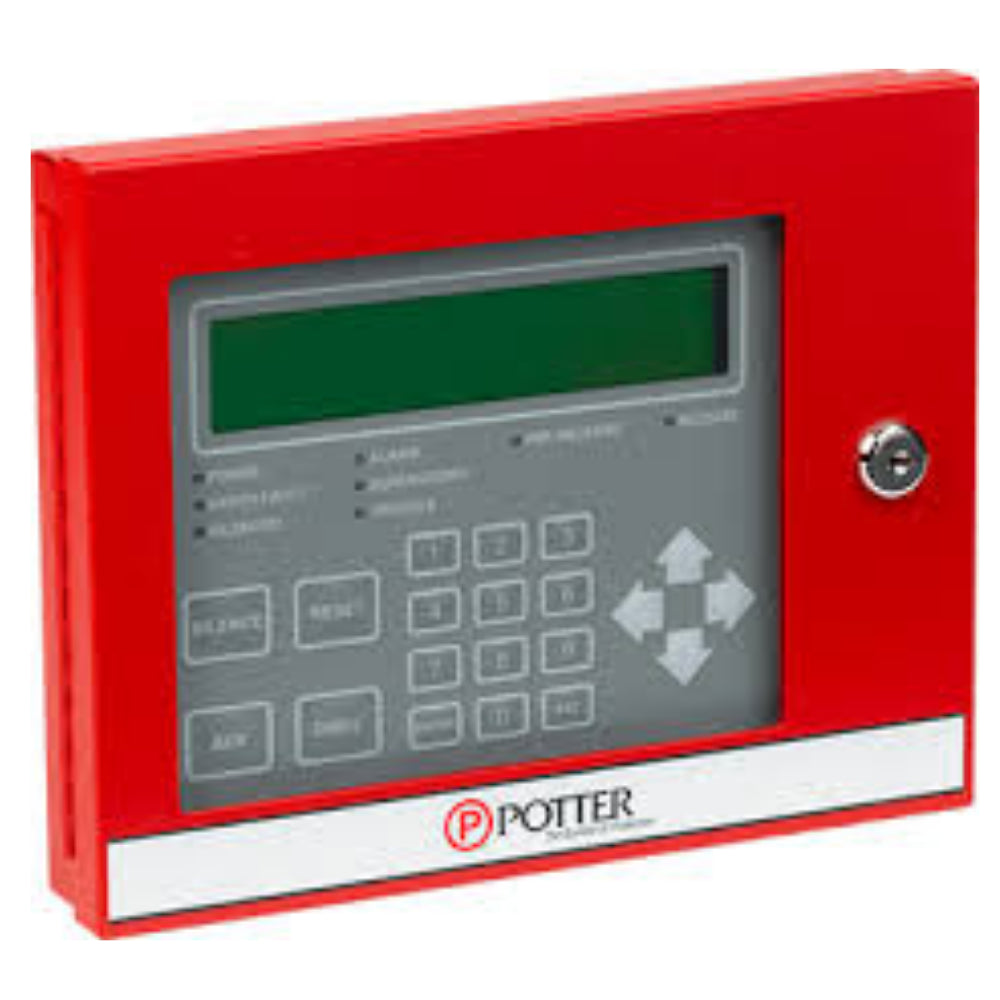

Product Overview The RA-6500R is an LCD remote annunciator designed for use with the PFC-6000 Series fire alarm control panels. Using an RS-485 communication link, it provides centralized indication of system conditions including alarms, supervisory signals, trouble status, and other key functions. The unit features a 4×40 character LCD display accompanied by dedicated LEDs for Power, Alarm, Supervisory, Trouble, and Silence indicators.

Built for flexible installation, the RA-6500R can be mounted on either a single-gang or four-square electrical box. Its sheet-metal enclosure includes a secure Potter-keyed lock, ensuring protected access to the keypad. This annunciator supports up to 31 units on a single system with a maximum wiring distance of 6500 ft.

Key Features

- Model: RA-6500R
- Standby Current: 20 mA
- Alarm Current: 25 mA
- Operating Temperature: 32°F to 120°F (0°C to 49°C)
- Humidity Rating: 10%–93% @ 86°F (30°C), non-condensing
- Maximum Wiring Distance: 6500 ft
- Supported Annunciators per System: 31
- Wire Gauge Compatibility: 14 AWG to 22 AWG
- Display: 4×40 LCD with status LEDs (Power, Alarm, Supervisory, Trouble, Silenced)
- Mounting: Single-gang or 4-square electrical box
- Enclosure: Sheet-metal housing with Potter lock for keypad security
