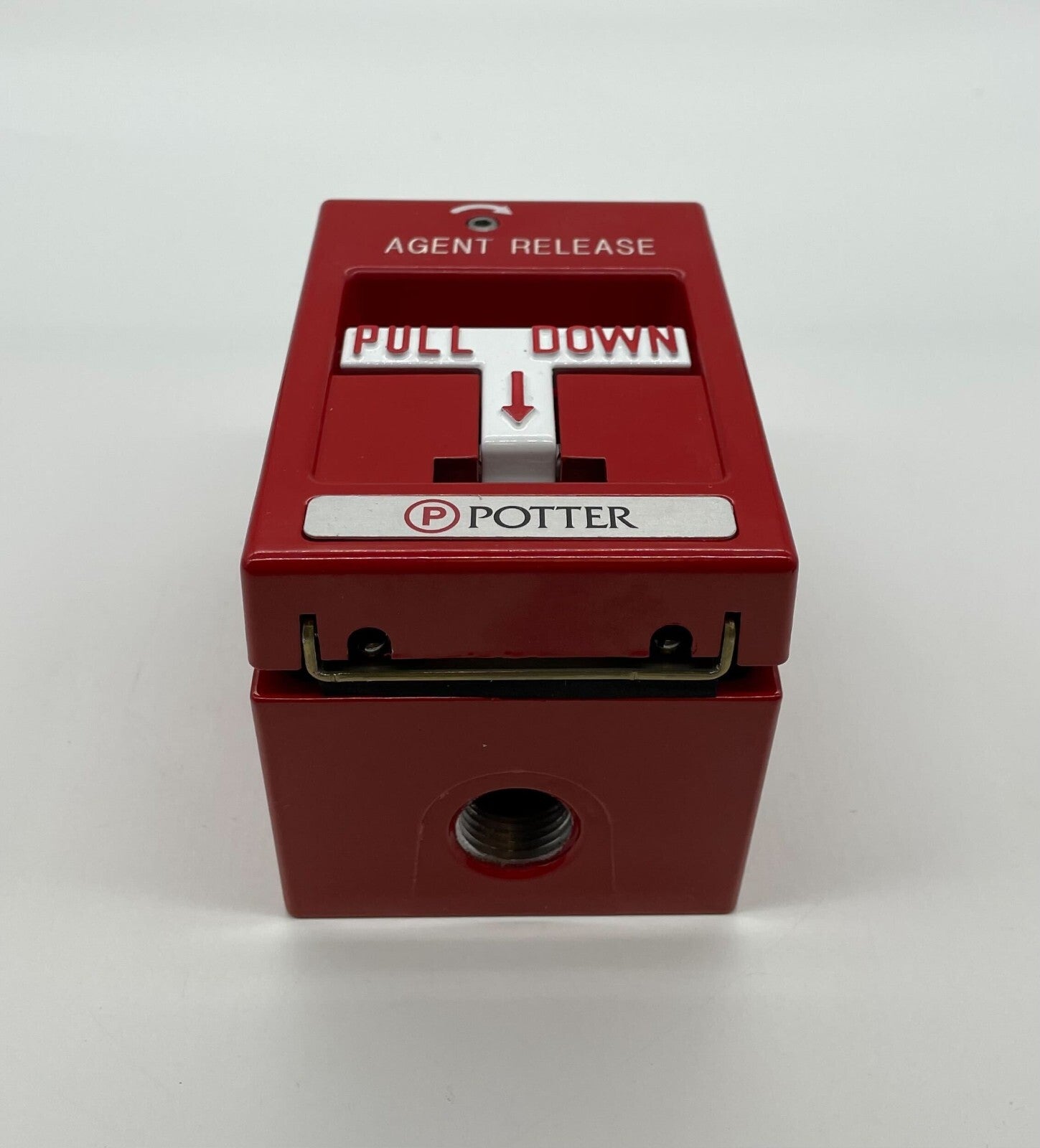

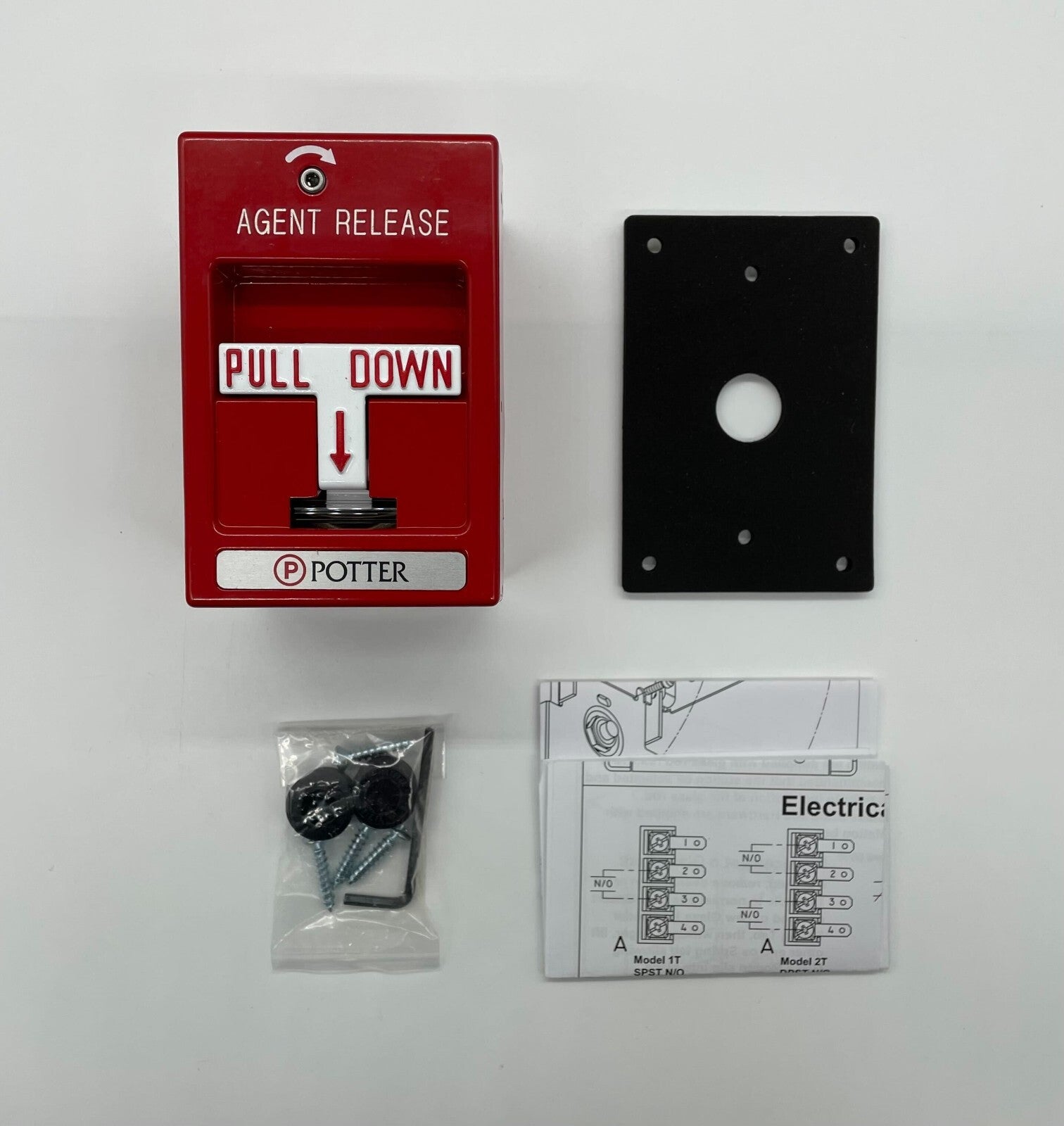

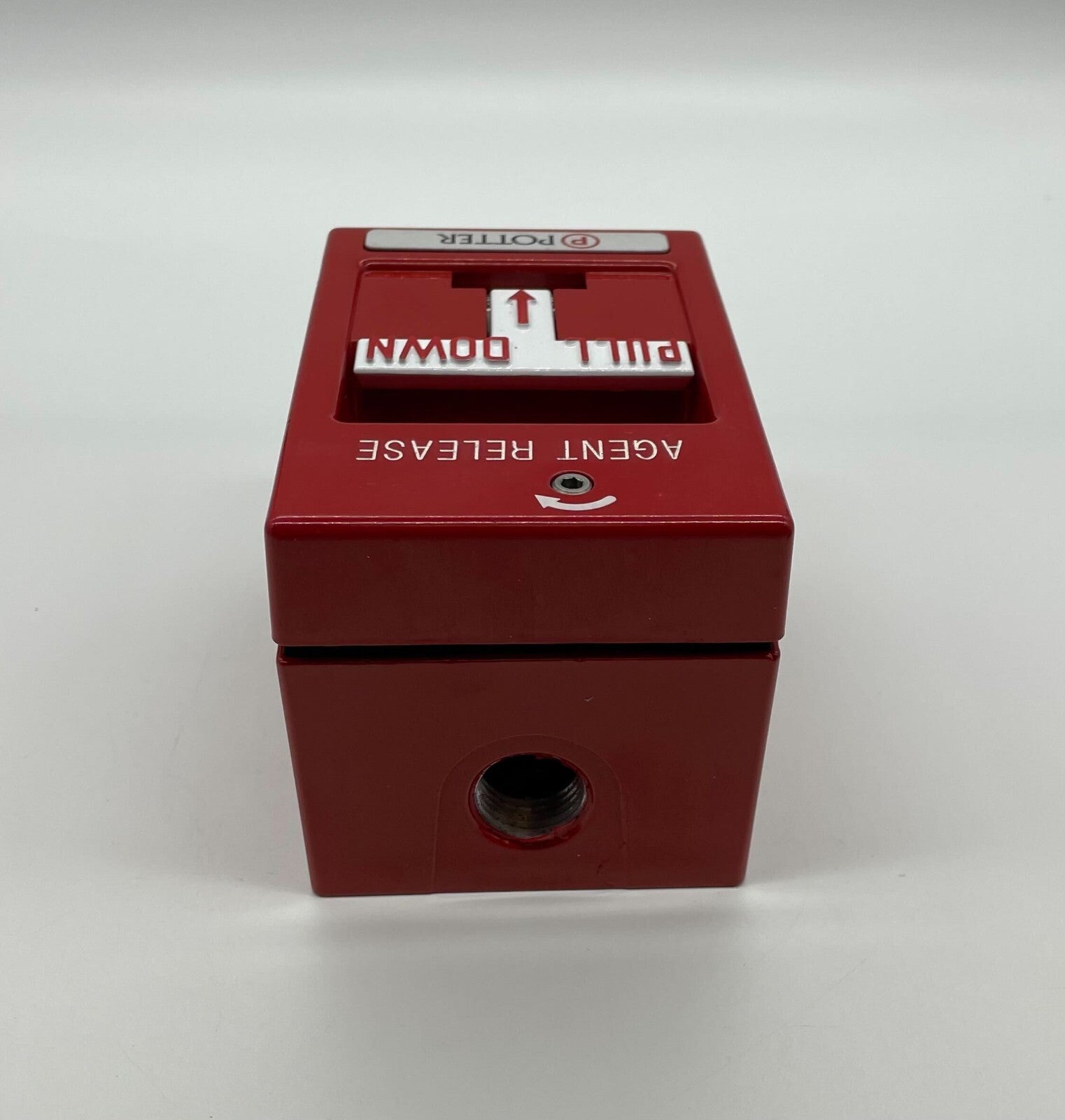

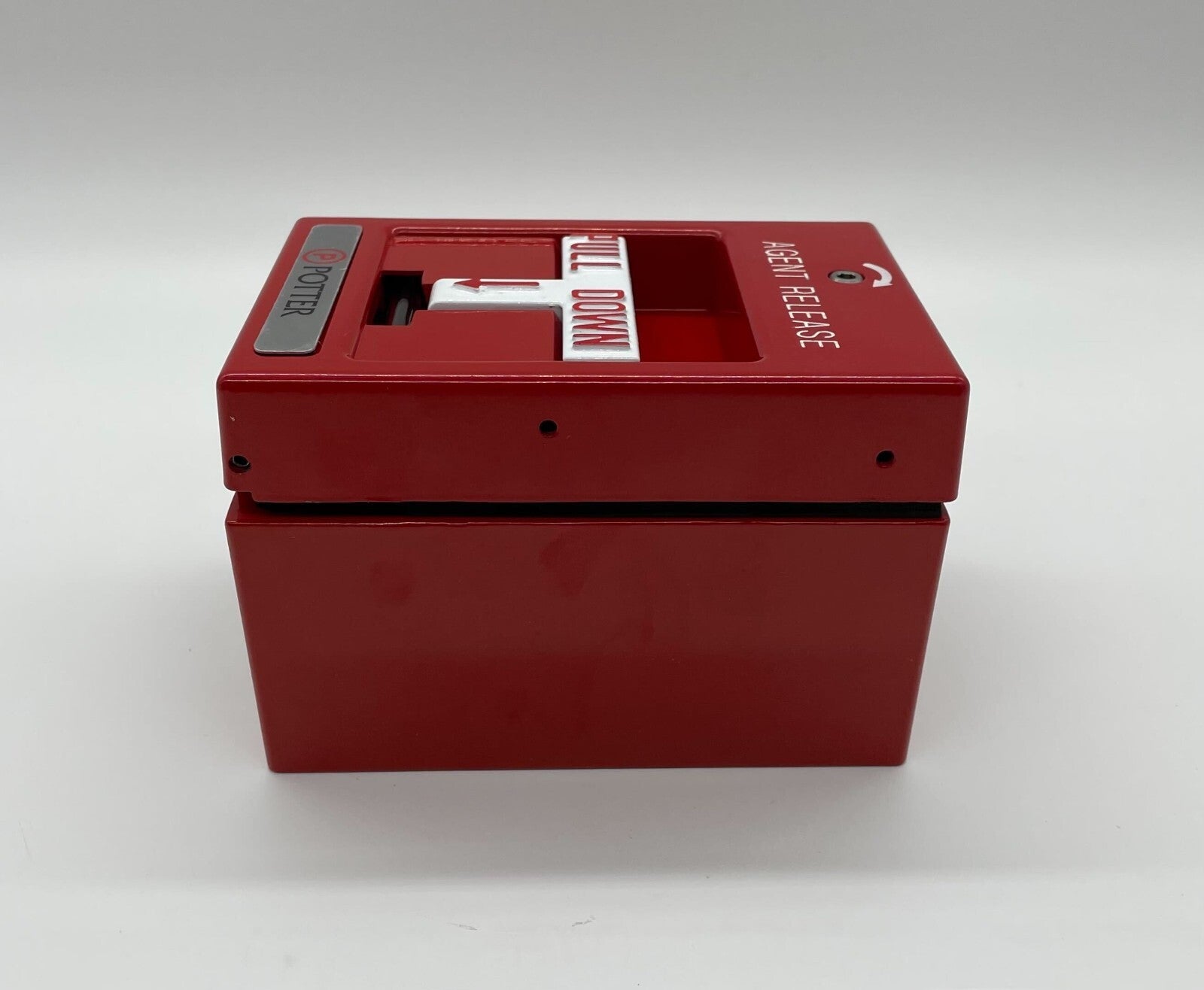

Potter RMS-1T-WP Pull Station, Single Action, Weatherproof Hex Reset

Potter RMS-1T-WP Pull Station, Single Action, Weatherproof Hex Reset

• UL and cUL Listed, FM Approved, CSFM Listed, MEA Approved, ADA Compliant
• Single or dual action
• Terminal connectors

The Potter Pull Station Series offers a complete line of die-cast pull stations for a variety of applications focusing mainly on fire alarm systems. The pull stations are available in single or dual action models. All of the pull stations have a 10-amp snap action switch and a dedicated terminal block for the ease of wire connections. All of the metal is completely coated to inhibit corrosion and provide for a uniform and quality finish.

The standard models have a hex key reset, however a key reset is also available. The models are available with shallow and deep surface mount back boxes and as a weatherproof version.

Operation

The Potter single action series of pull stations operate by pulling the white operating handle straight down and the handle will lock into place. The dual action stations require the lifting of the front cover and then pulling the white operating handle straight down. The stations are reset by opening the front and placing the handle in the normal position.
