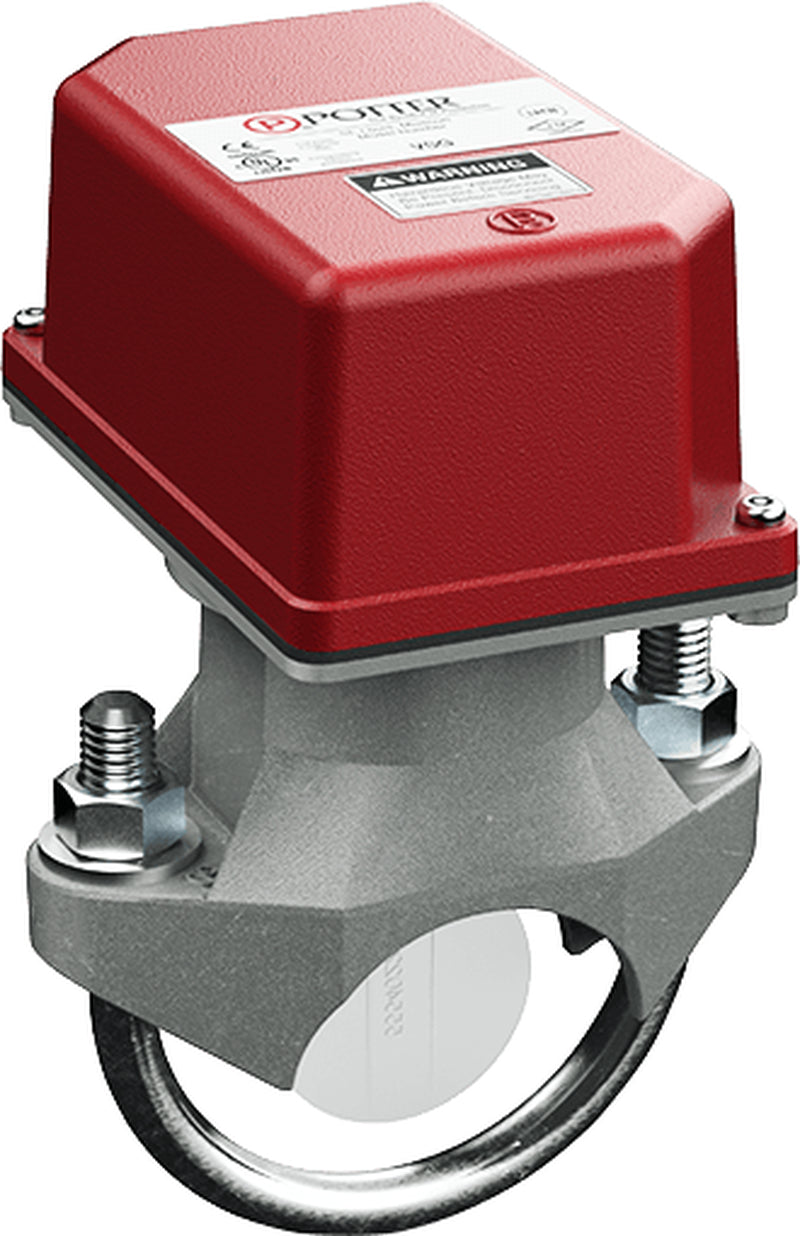

POTTER VSG-4

Product Overview

The VSG-4 is a flexible vane-type waterflow switch engineered for wet pipe water mist systems that require reliable alarm activation at very low flow rates. Designed for installation on 4-inch stainless steel or brass piping, it fits systems built within specific wall-thickness parameters. Its durable die-cast enclosure, factory-installed gasket, and non-corrosive internal components make it suitable for both indoor and outdoor environments. Additionally, the model can serve as a sectional waterflow detector in larger system layouts.

Key Features

-

Listings & Approvals: UL, ULC, and CSFM certified

-
Pipe Compatibility: 4" pipe (114.3 mm OD) with wall thickness from 5.4 mm to 6.4 mm

-
System Performance:

-
Service pressure up to 450 PSI (31 bar)

-
Alarm activation at 3.0 GPM (11.4 LPM)

-
Maximum surge velocity of 18 FPS (5.5 m/s)

-
Electrical Requirements:

-
Standby: 10 mA at 120 VAC or 1.5 mA at 24 VAC/DC

-
Alarm: 40 mA at 120 VAC or 35 mA at 24 VAC/DC

-
Contacts: DPDT (Form C), rated 2 A at 0–30 VDC or 0–125 VAC (resistive)

-

Installation Details:

-
Includes two ½" conduit knockouts

-
NEMA 4 enclosure rating with proper conduit fitting

-
Factory-installed non-corrosive sleeve in saddle

-
Environmental Specifications:

-
Temperature range: 40°F to 120°F (4.5°C to 49°C)

-
Suitable for indoor or outdoor applications

-
Important Notice: Not designed for use in hazardous or explosive environments
