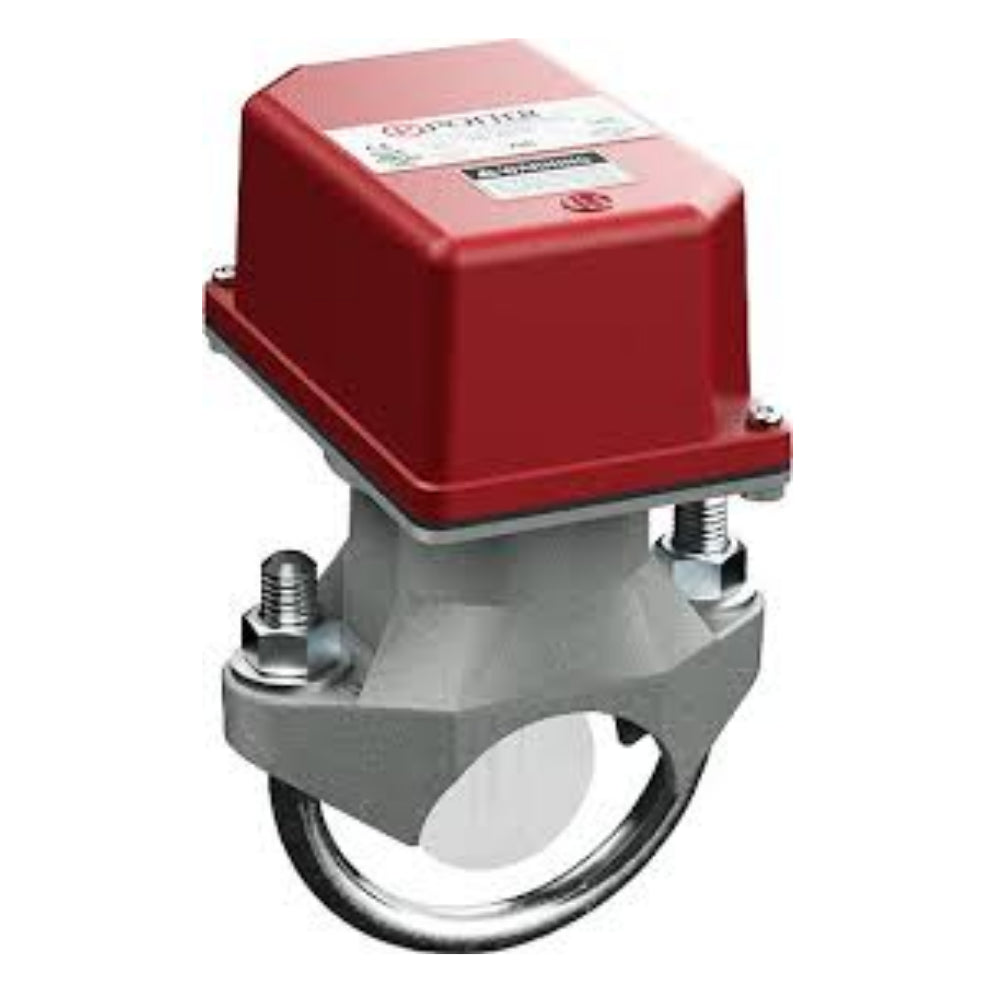

Product Overview The Potter VSR-4 is a vane-type waterflow switch designed for wet sprinkler systems, providing reliable detection of water movement for fire alarm signaling. UL Listed, FM Approved, and compliant with NFPA standards, the VSR-4 is suitable for steel pipe schedules 10–40, ranging from 2" to 8" (50–200 mm). The device is equipped with two SPDT snap-action switches and an adjustable pneumatic retard, which activates when flow reaches 10 GPM (38 LPM) or higher downstream of the unit. Its rugged NEMA 4/IP54-rated die-cast enclosure allows use in both indoor and outdoor environments.
Key Features
- Flow Detection: Vane-type design with adjustable pneumatic retard; triggers at flows ≥10 GPM (38 LPM).
- Dual SPDT Switches: Two single-pole, double-throw switches for reliable signaling; each rated 10 A @ 125/250 VAC, 2 A @ 30 VDC resistive, 10 mA min. @ 24 VDC.
- Pipe Compatibility: Suitable for 2"–8" (50–200 mm) steel pipes; LPC approved for 2"–8" sizes.
- NFPA Compliance: Supports NFPA-13, NFPA-13D, NFPA-13R, and NFPA-72 standards.
- Environmental Protection: NEMA 4/IP54-rated enclosure with factory-installed gasket; temperature range 40°F–120°F (4.5°C–49°C).
- Conduit Access: Two 1/2" conduit knockouts; individual switch compartments support dissimilar voltages.
- Durable Construction: Non-corrosive sleeve and die-cast housing for long-term reliability.
