Product Details

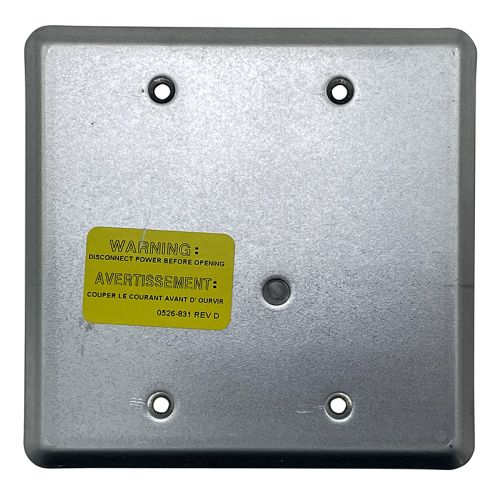

The Simplex 4090-9801 is a semi-flush trim plate for compatible Simplex IDNet IAM installations, providing a finished look on a 4-inch square electrical box while keeping the module’s communications LED visible through an integrated LED viewing window/light pipe. Its galvanized steel construction and included mounting screws simplify field installation.
Alternate Part Numbers: 4090-9802 – Surface-mount trim plate version
Key Specifications:
Type: Semi-flush trim plate for 4-inch square box IAM mounting
Core Function(s): Provides a finished cover/trim solution while allowing external viewing of the IAM communications LED
Indicators/UI: LED viewing window/light pipe for module LED visibility
Construction: Galvanized steel
Includes: Mounting screws
Compatible Modules & Accessories:
4090-9002 – Relay IAM
4090-9008 – Dual Contact Relay IAM
4090-9010 – 8A Relay IAM (used when LED visibility is desired after installation)
4090-9813 – Adapter plate for 4 11/16-inch square electrical box mounting
System Compatibility: Compatible with Simplex IDNet IAM installations that use optional trim plates for visible LED indication.
