Product Details

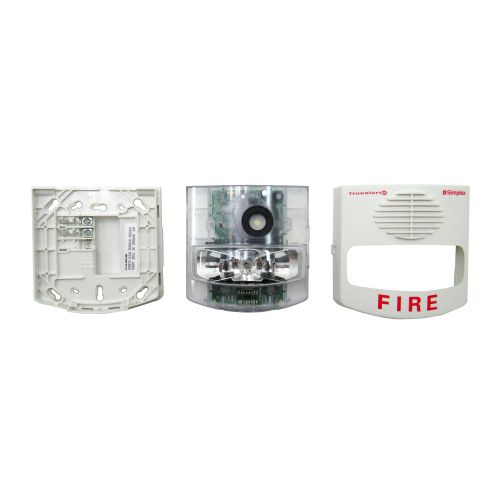

The Simplex 49AV-WWF addressable horn/strobe is a TrueAlert ES wall-mount audible/visible appliance with a white cover and FIRE lettering for use on Simplex IDNAC SLC notification circuits. It provides individually addressed control, multi-candela strobe settings with synchronized 1 Hz flash, and built-in Self-Test and Magnet Test diagnostics to simplify testing and service.
Key Specifications:
Type: Intelligent addressable wall-mount horn/strobe (A/V), white FIRE cover included
Core Function(s): Addressable audible and visible notification with separate horn and strobe control on a 2-wire SLC
Loop/Protocol: IDNAC SLC (regulated 29 VDC)
Power: 23 to 31 VDC (Special Application); 1 unit load = 0.8 mA FACU current; up to 127 addresses per SLC (139 unit loads max)
Indicators/UI: Selectable LED polling indication; Self-Test status reporting; Magnet Test for address indication and operational test
Compatible Replacement Covers:
49AVC-WWFIRE - White cover, FIRE
49AVC-WWS - White cover, Simplex logo only
Compatible Mounting Accessories:
4905-9940 - White surface mount adapter skirt
System Compatibility:
Operates from Simplex control equipment providing IDNAC SLC notification, including 4100ES, 4009 IDNAC Repeater, 4007ES, and 4010ES.
NOTE: Replaces 4906-9229
