Product Details

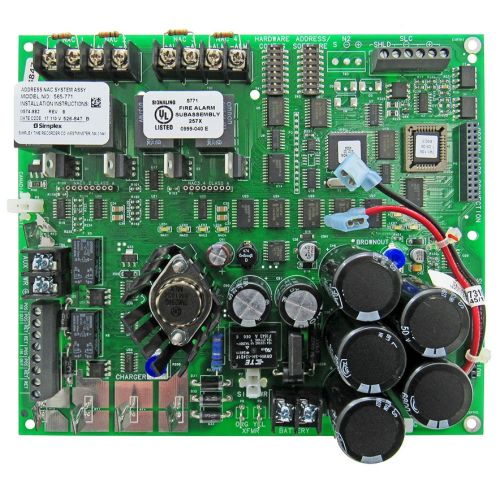

The Simplex 742-346 NAC Extender Board is a replacement CPU board for Simplex 4009-9201 IDNet NAC Power Extender panels.
The Simplex 4009-9201 is an IDNet NAC Power Extender is a Notification Appliance Circuit (NAC) Extender in a self-contained adjunct panel for use with Simplex Fire Alarm Control Panels (FACPs).
Features 4 Class B NACs
AC Input - 120VAC, 3 amperes, 60Hz
Battery Input - 24VDC, 8 amperes
Notification Appliance Power Output - 24VDC, 8 amperes
OPTIONAL EXPANSION CARDS:
— 4009-9808 Class A Adapter Option Card - allows fault tolerance in the case of open circuit wiring faults on the NACs.
— 4009-9807 NAC Option Card - adds four conventional Notification Appliance Circuits.
— 4009-9809 IDNet Repeater Option Card - regenerates and provides a power and distance boost for the IDNet channel. When IDNet Repeater Option Card is used, the fiber option is not available to the 4009 IDNet.
— 4009-9810 (Class B)/4009-9811 (Class A) Fiber Optic Receiver - receives IDNet communication over a fiber optic channel and regenerates the IDNet signal. The fiber option is used with the 4090-9105 (Class B)/4090-9107 (Class A) Fiber Optic Transmitter to form an IDNet fiber link.
