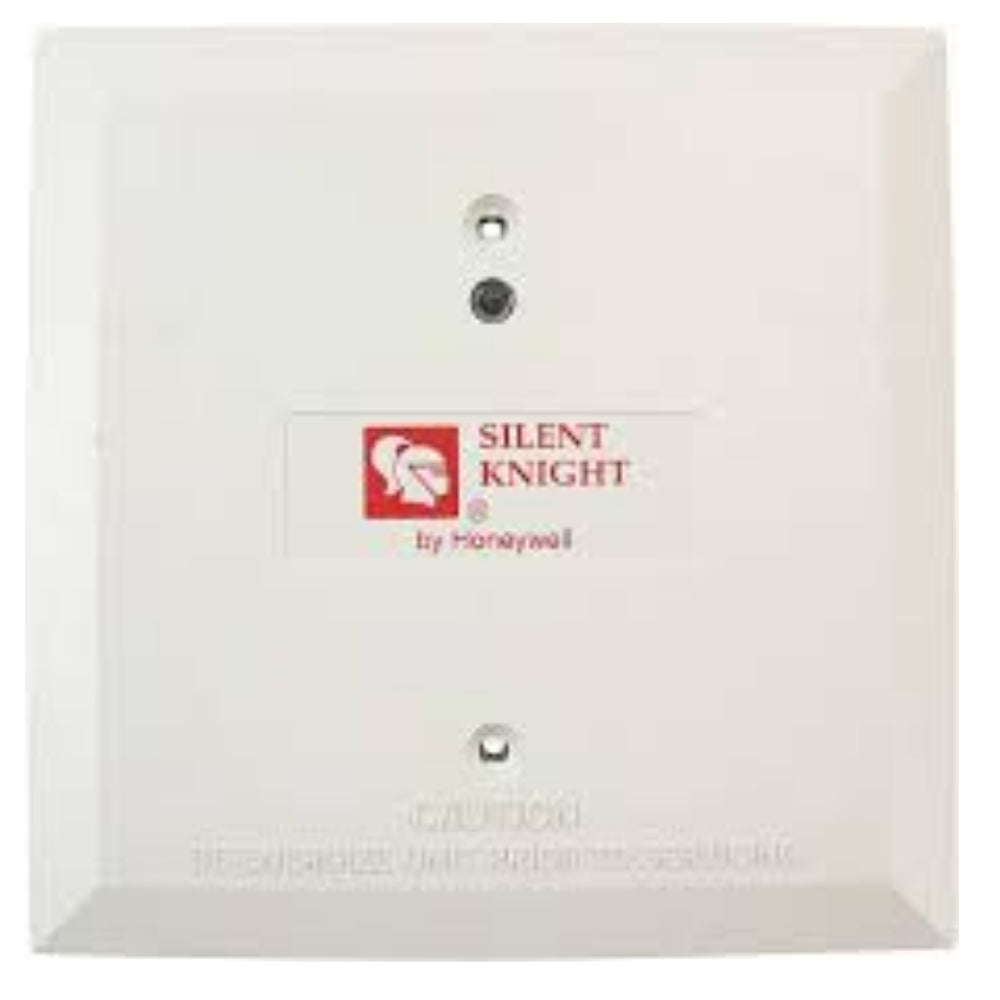

SK-RELAY-6 SILENT KNIGHT

Product Overview

The Silent Knight SK-RELAY-6 is an addressable six-relay control module designed for use with Silent Knight fire alarm control panels. Equipped with six Form C relays, it allows the control panel to switch discrete contacts by code command, providing reliable control for a wide range of normally open (NO) or normally closed (NC) applications.

Each module is assigned a unique SLC address, and when programmed conditions are met, the fire alarm control panel activates the corresponding relay outputs. With flexible relay mapping, individual status LEDs, and support for disabling unused relays, the SK-RELAY-6 offers an efficient and adaptable solution for complex control requirements.

Key Features

- Six Form C relay contacts in one addressable module
- Flexible relay programming mapped to zone or event conditions
- Individual LED indicators for each relay contact
- Rotary address switches for fast and simple addressing
- Removable plug-in terminal blocks (12–18 AWG) for easy wiring
- Ability to disable up to three unused relays
- Designed for dual-module mounting in the IDP-ACB cabinet
- Mounting hardware included
- UL Listed
