Product Details

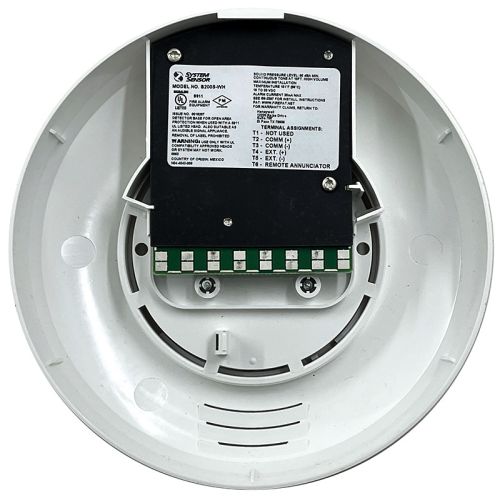

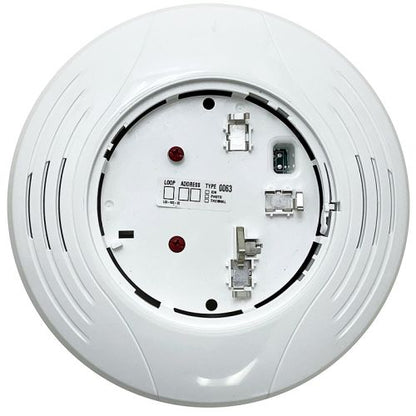

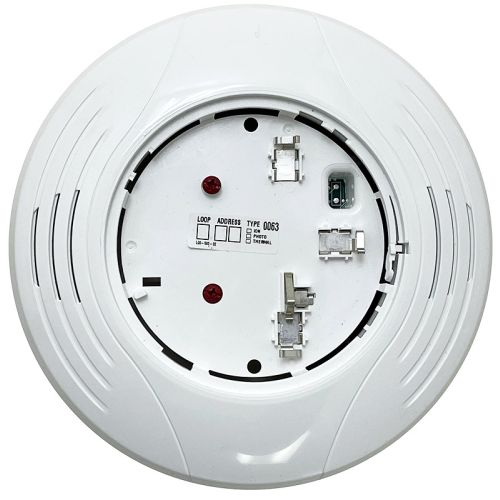

The System Sensor B200S-WH is an intelligent addressable sensor sounder base in bright white that adds event-driven audible output at the detector location. It "listens in" to the sensor head communication so the panel can command an individual sounder, or groups of sounders, with selectable tones and volume.
Key Specifications:
Type: Intelligent addressable sensor sounder base (bright white)
Core Function(s): Provides addressable sounder output with event-driven tone and volume control at the detector base location
Loop/Protocol: Addressable operation on the SLC; the base listens to the attached sensor head communication so the panel can command the sounder as a unique device type on the loop
Power: SLC 15 to 32 VDC; SLC standby 300 uA max (base only). External supply 16 to 33 VDC (VFWR); external standby 500 uA max; alarm current 35 mA max (high volume) or 15 mA max (low volume)
Audible Output: Two volume levels (75 or 85 dBA). Tones include Continuous, ANSI Temporal 3, ANSI Temporal 4, and March Time (custom tone capability with some FACPs)

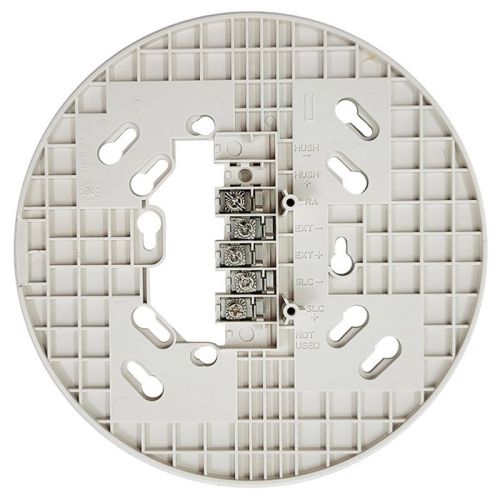

Mounting: Pre-wire mounting plate fits various junction box sizes (designed to help avoid surface-mount box installs)
Indicators/UI: Mechanical locking feature helps prevent removal of the attached sensor head; housing locks to the mounting plate with retaining screws for added tamper resistance
System Compatibility:
Use with compatible intelligent addressable detector heads and control panels that support the System Sensor B200S series sounder base functions (confirm support in the panel documentation).
Note: White (-WH) bases are suitable for use with FlashScan, Velociti, and LiteSpeed communications protocols only.
