Product Details

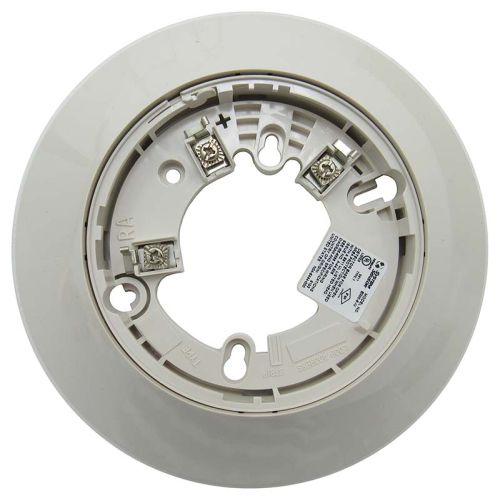

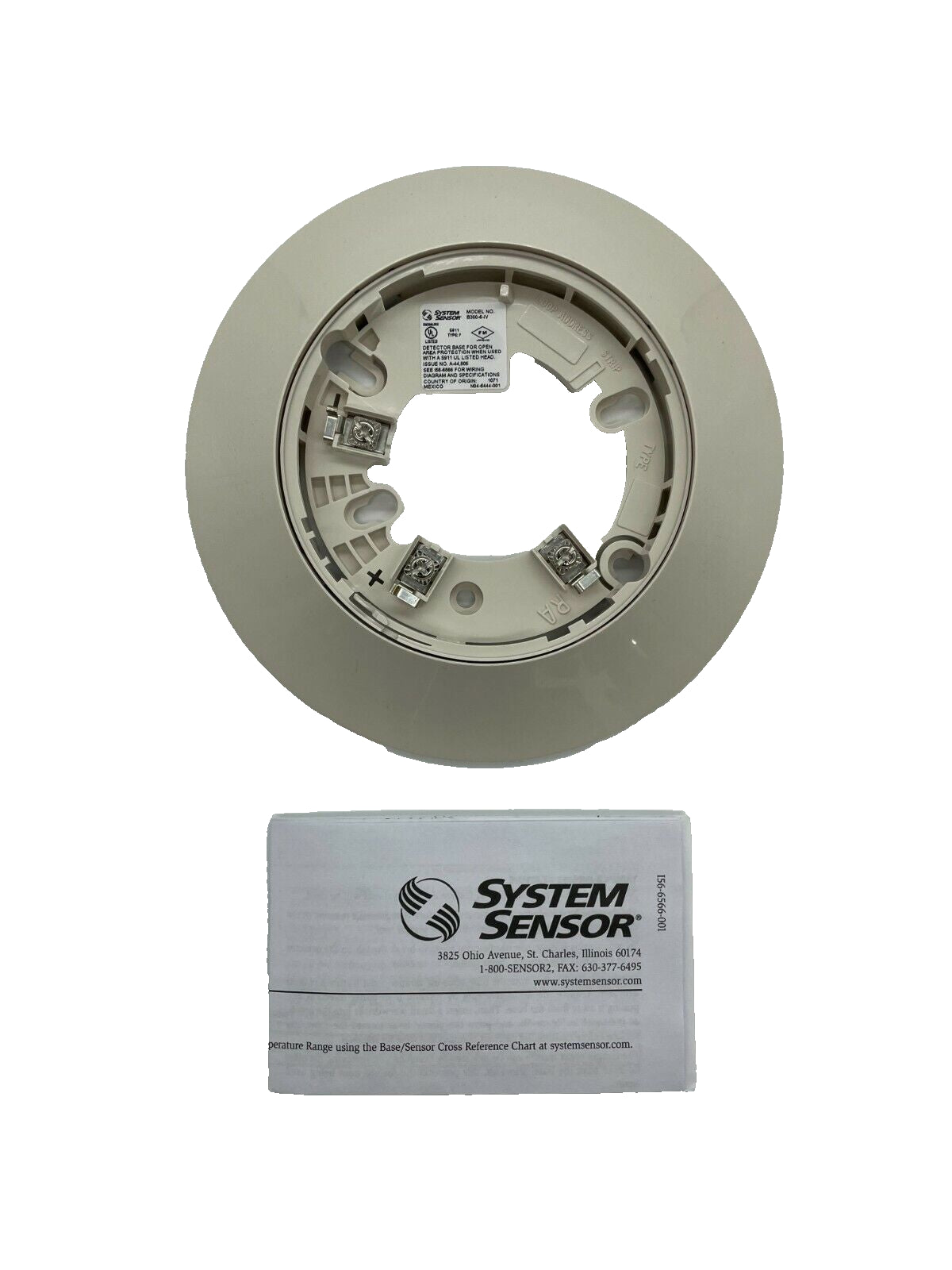

The System Sensor B300-6-IV plug-in detector base is a 6-inch flanged mounting base for compatible intelligent addressable detector heads, with screw terminals for power (+/-) and remote LED annunciator connections. Communication takes place over the power (+/-) lines, and the base supports an optional tamper-resist feature to help prevent unwanted detector removal.
Key Specifications:
Type: Intelligent plug-in detector base (6-inch, flanged)
Core Function(s): Mounting and wiring base that provides (+/-) loop connections and remote annunciator terminals for compatible plug-in detector heads
Loop/Protocol: Communication over the power (+/-) lines through the installed detector head (protocol depends on the detector and compatible system)
Power: 15 to 32 VDC; 170 uA standby
Indicators/UI: Optional tamper-resist feature; remote annunciator terminals (remote annunciator connects to terminals 1 and 3)
Mounting: Mounts to 4-inch square (with or without plaster ring), 4-inch octagon, 3.5-inch octagon, and single-gang junction boxes
Compatible Accessories:
RA100Z - Remote LED annunciator
System Compatibility:
Used with compatible intelligent addressable plug-in detector heads that mount to the B300-6-IV base on supported addressable SLC systems.
NOTE: Ivory (-IV) bases are suitable for use with FlashScan/Velociti/LiteSpeed, and CLIP communications protocols.
