Product Details

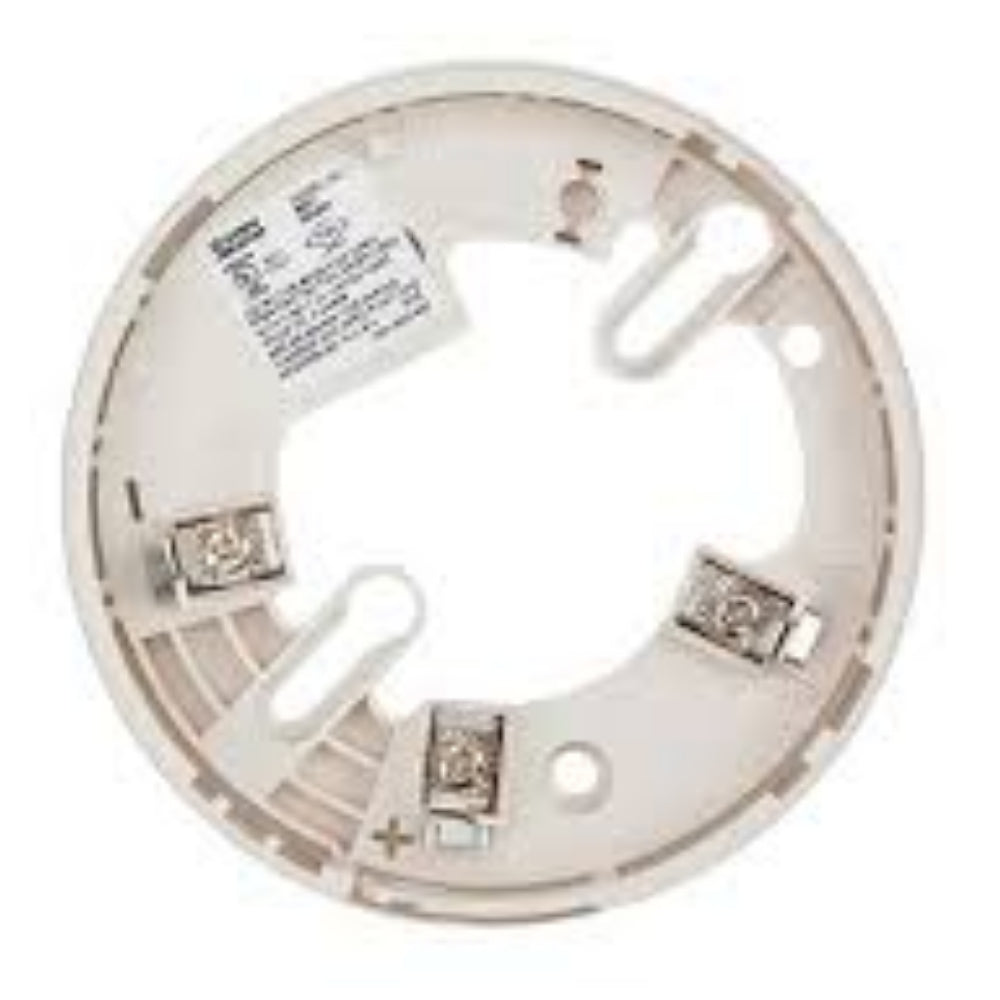

The System Sensor B501-IV is an ivory 4-inch flangeless plug-in detector base intended for use in an intelligent system, with screw terminals for power (+/-) and remote LED annunciator connections. Communication takes place over the power (+/-) lines through the installed detector head, and the base supports an optional mechanical locking feature to help prevent unwanted detector removal.
Key Specifications:
Type: Intelligent plug-in detector base (4-inch, flangeless)
Core Function(s): Mounting and wiring base that provides (+/-) loop connections and remote annunciator terminals for compatible plug-in detector heads
Loop/Protocol: Communication over the power (+/-) lines through the installed detector head (protocol depends on the detector and compatible system)
Power: 15 to 32 VDC; 150 uA standby (includes base and detector)
Indicators/UI: Optional mechanical locking feature for tamper resistance; remote annunciator terminals (remote annunciator connects to terminals 1 and 3)
Mounting: Fits 3.5-inch octagonal boxes and 4-inch square boxes with a 3.0-inch mud ring; supports 50 mm, 60 mm, and 70 mm boxes
Compatible Accessories:
RA100Z - Remote LED annunciator
System Compatibility:
Used with compatible intelligent addressable plug-in detector heads that mount to the B501-IV base on supported addressable SLC systems.
NOTE: Ivory (-IV) bases are suitable for use with FlashScan/Velociti/LiteSpeed, and CLIP communications protocols.
