Product Details

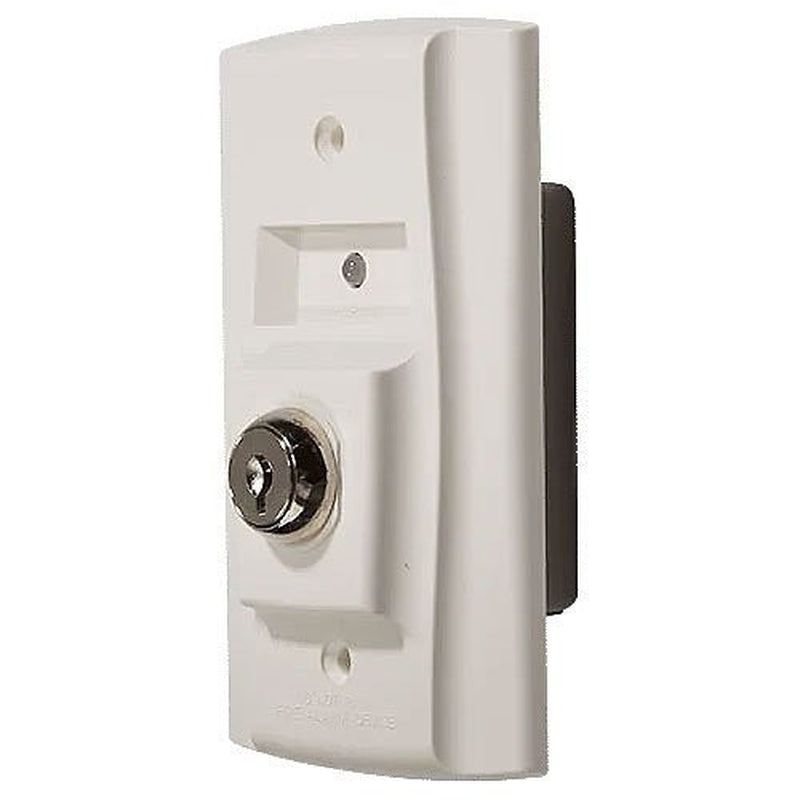

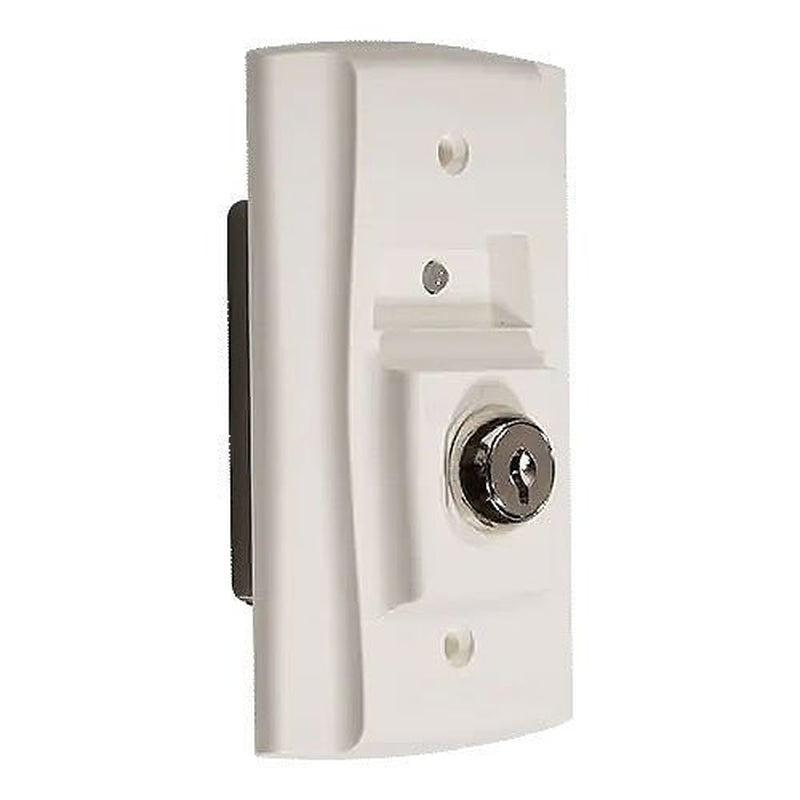

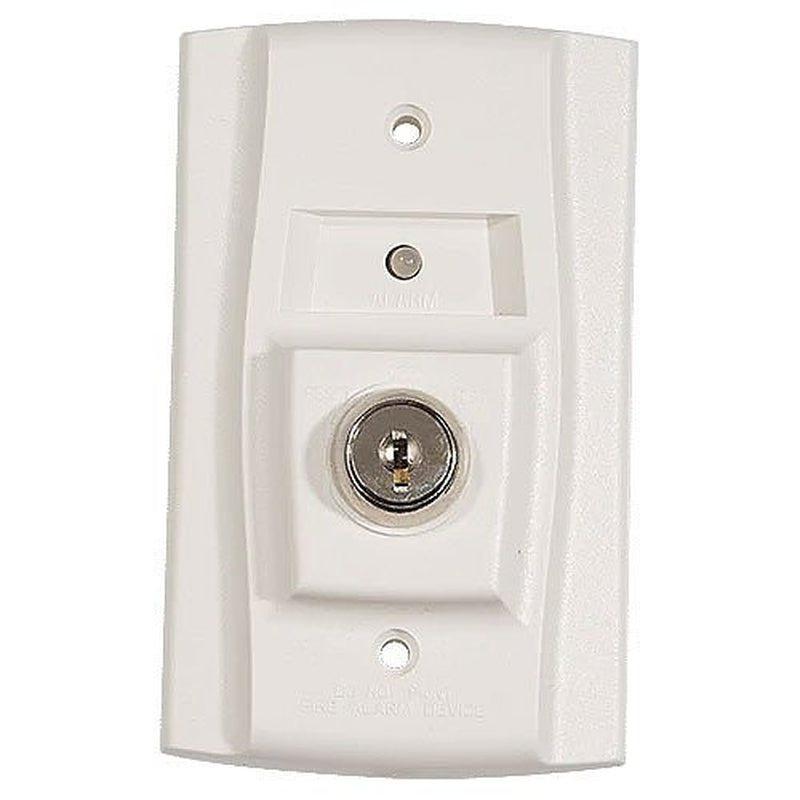

The System Sensor RTS151KEY remote test station is a duct smoke detector accessory that lets you test and reset compatible duct smoke detectors from a convenient, eye-level location. It includes an alarm LED plus dedicated TEST and RESET controls with a key-operated function for controlled access during inspections and service.
Similar product: RTS151 – Remote test station (non-key)
Key Specifications:
Type: Key-operated remote test station for duct smoke detectors
Core Function(s): Provides remote test and reset control with alarm LED indication for compatible duct smoke detector applications
Power: Alarm LED: 2.8 to 32 VDC (12 mA max); total current: 105 mA max
Indicators/UI: Alarm LED; key-operated test/reset control; switch rating 10 VA @ 32 VDC
Operating Range: -10°C to 60°C (14°F to 140°F); up to 95% RH non-condensing
Wiring: 14 to 18 AWG
Compatible Devices:
Compatible with System Sensor duct smoke detectors (InnovairFlex line and other System Sensor duct smoke detector applications).
